RTCU LX2 pro Technical Manual V1.00
Advanced Automotive M2M/IoT Gateway

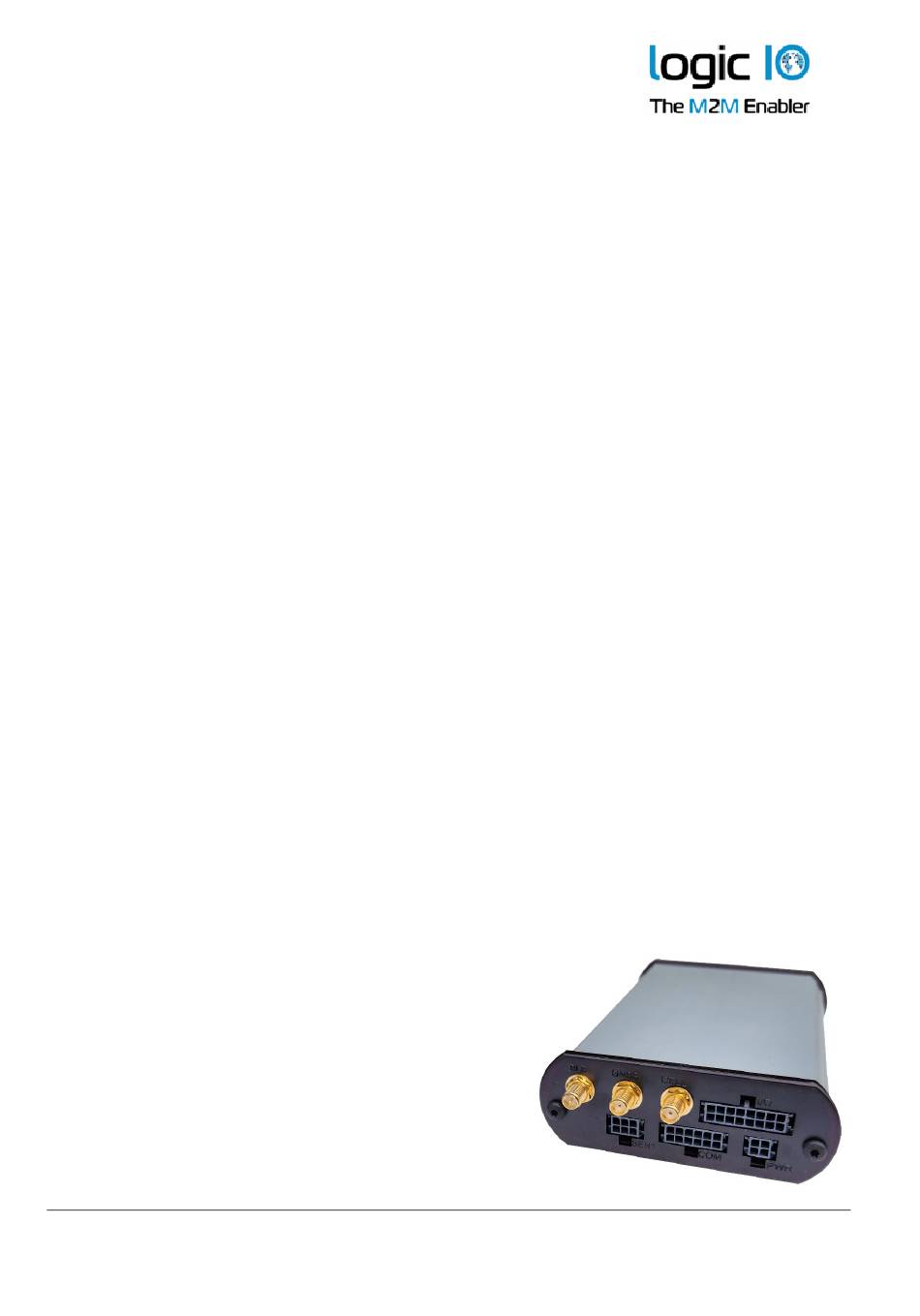

RTCU LX2 pro Specifications
RTCU M2M Platform
•
NX32L Execution Architecture.
•
Fully NX32 compatible.
•
Open and user-extendable API.
•
RTCU M2M Platform SDK.
LX Hardware Core
•
Powerful 32-bit ARM processor.
•
Hardware floating point and DSP.
•
128 Mbyte RAM.
•
Up-to 512 Mbyte NAND flash.
•
Real-time clock with battery-backup.
Storage
•
4 GB Internal flash drive.
•
Persistent data flash.
•
Multiple circular dataloggers.
Cellular Engine
•
LTE Cat.4 Engine (Worldwide).
Max 150 Mbps(DL)/Max 50 Mbps(UL).
LTE FDD: 15 bands.
LTE-TDD: 4 bands.
WCDMA: 7 bands.
GSM: Quad-band.
•
DTMF decoding / transmission.
•
Digitized voice playback / IVR.
•
Dual SIM card reader (int/ext).
•
Mini-SIM 1.8/3 volt
•
Application controlled SIM card.
•
Optional eSIM.
Audio
•
Fully digitized audio system.
•
Transfer, store and play audio.
•
Digitized cellular audio.
Logic IO ApS.
Holmboes Allé 14
8700 Horsens
Denmark
Bluetooth
•
Bluetooth Low Energy 5.3.
•
IEEE 802.15.4-2011 PHY
•
Optional: Zigbee and OpenThread.
GNSS
•
Multi-constellation.
•
Dual-Band using L1 / L5 bands.
•
GPS, Galileo, GLONASS, BeiDou, and
QZSS.
•
SBAS: WAAS, EGNOS, MSAS, and
GAGAN.
•
AGPS capable.
•
RTCM v2.3 and v3.3.
•
Accuracy: < 1m CEP (@-130 dBm).
•
Anti-jamming, Noise cancellation.
•
Active 3 volt GNSS antenna.
•
RTK (optional) with sub-centimeter
accuracy.
•
Dead Reckoning with IMU (optional).
•
Optional dual GNSS receiver.
Sensors
•
Temperature sensor.
•
3-axis Accelerometer. ±16g@16b.
•
3-axis Gyroscope. ±2000dps @16b.
Page 38 of 39
Wired Communication
•
2 x Full CAN2.0B with hardware
filtering and multi-speed support.
•
1 x RS232 with control signals.
•
1 x RS232 with RX/TX.
•
1 x RS485 with Modbus support.
•
1-Wire bus.
•
USB service/programming port.
I/O Interface
•
4 x digital solid-state digital output.
Max. 36 volt / 1.5 A per. channel.
Short-circuit, ESD, Inductive kick-back
protected up to 20 mH.
•
6 x digital inputs with ignition.
Logic high: 8 to 40 VDC.
Logic low: -5 to 3 VDC.
Impedance: 13 kohm @ 12V.
•
2 x analog inputs.
Range is 0..10VDC or 0..30VDC.
Resolution: 12 bit
Accuracy: Typ. ±0.3% FSR @ 25°C.
Impedance: 40 kohm.
•
Protected against transients and low-
pass filtered.
User Interaction
•
4 x bi-colour LED.
•
2 x DIP-switches.
•
Switches for RS485 /CAN termination.
•
CAN write enable switch.
•
Reset / recovery switch.
