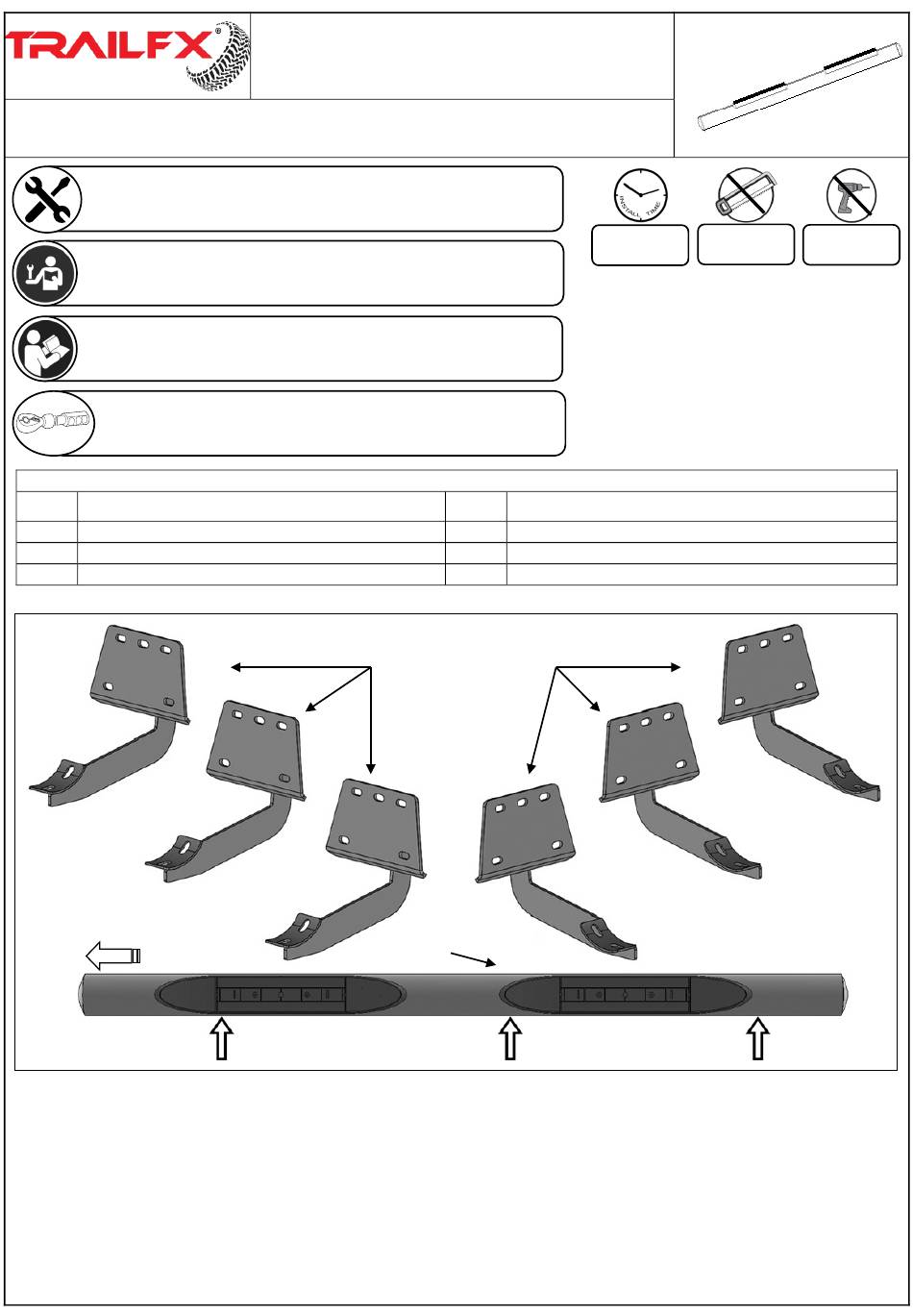

REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1

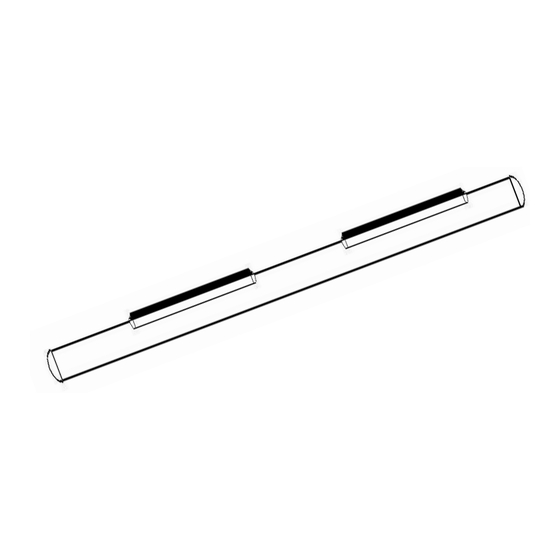

Driver/left side 4" Oval Straight Sidebar
1
Passenger/right side 4" Oval Straight Sidebar
6
Front
4" Oval Straight Side Bar
Part No. A1543S /B
Dodge Ram 1500 Quad Cab
Part Description
Mounting Brackets
PARTS LIST:
Qty
12
18
18
(6) Left or Right
Mounting Brackets
Passenger/right
Sidebar
Cutting Not
60-180 min
Required
Part Description
8-1.25mm x 25mm Combo Hex Bolts
8mm x 24mm x 2mm Flat Washers
8-1.25mm Nylon Lock Nuts
Arrows indicate location of
threaded inserts in bottom
of Sidebar
Drilling Not
Required
