Fits: 2018
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
Driver/left side 4" Straight Sidebar
1
Passenger/right side 4" Straight Sidebar
1
1
Driver/left side Front Mounting Bracket
1
Passenger/right side Front Mounting Bracket
1
Driver/left side Rear Mounting Bracket
1
Passenger/right side Rear Mounting Bracket
1
Driver/left side Front Support Bracket
1
Passenger/right side Front Support Bracket
1
Driver/left side Rear Support Bracket
1
Passenger/right side Rear Support Bracket
Page 1 of 6

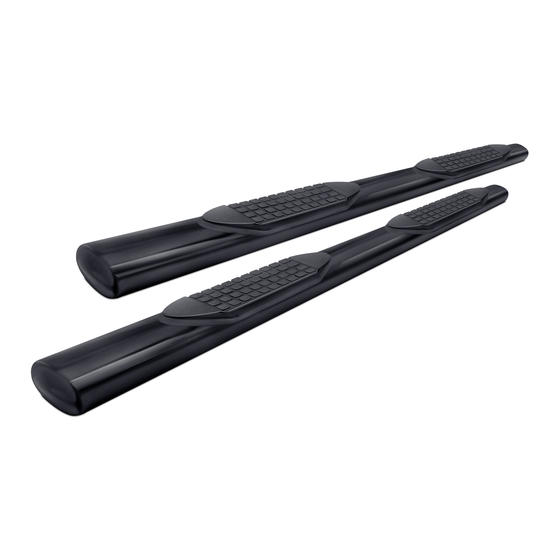

4" Straight Side Bar
Part No. A1546T
WRANGLER JL 2DR
Part Description
PARTS LIST:
Qty
4
10-1.5mm x 30mm Hex Bolts
8
10mm x 24mm x 2mm Flat Washers
4
10-1.5mm Nylon Lock Nuts
8
8-1.25mm Combo Bolts
4
8-1.25mm x 35mm Hex Bolts
4
8mm x 28mm x 3mm Flat Washers
4
8mm Lock Washers
8
6-1.0mm x 25mm Hex Bolts
16
6mm x 22mm x 2mm Flat Washers
8
6-1.0mm Nylon Lock Nuts
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling Not
Required
Rev 121018
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A1546T
Summary of Contents for TrailFX A1546T
- Page 1 4" Straight Side Bar Part No. A1546T Fits: 2018 WRANGLER JL 2DR Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 1 866 638 4870 DO NOT OVER TORQUE.
- Page 2 Passenger/right side Driver/left side Rear Rear Support Bracket Support Bracket Passenger/right side Rear Bracket Driver/left side Rear Support Bracket Passenger/right side Front Bracket Passenger/right side Driver/left side Front Front Support Bracket Support Bracket Driver/left Side Passenger side 4” Front...
- Page 3 Passenger/right Side Installation Pictured (1) 8mm Hex Bolt (1) 8mm Lock Washer (1) 8mm Flat Washer Front Front Pair of holes on pinch weld (Fig 1) Passenger side front mounting location (Fig 2) Passenger side Front Mounting Bracket Passenger/right Side Installation Pictured...
- Page 4 Rear Pair of holes on pinch weld Rear (Fig 5) Passenger side rear mounting location (1) 8mm Hex Bolt (1) 8mm Lock Washer (1) 8mm Flat Washer (Fig 6) Passenger side Rear Bracket Passenger/right side Installation Pictured Rear (1) 10mm Hex Bolt...
- Page 5 (2) 6mm Hex Bolts (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts Rear Front (Fig 8) Attach the Rear Support Bracket to the back of pinch weld (2) 8mm x 25mm Combo Bolts (Fig 9) Passenger/right side Front...
-
Page 6: Product Care
Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
