Fits:
2001-2013 Chevrolet Silverado/GMC Sierra 1500/1500HD Crew Cab
2001-2014 Chevrolet Silverado/GMC Sierra 2500LD/2500HD/3500 Crew Cab
Excl. C/K "Classic"
GMC SIERRA 2500LD/2500HD/3500 CREW CAB (Excl. C/K "Classic")
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Side Bar
1
Passenger/Right Side Bar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Side Center Mounting Bracket
1
Passenger/Right Side Center Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
1
Driver/Left Front Support Bracket
1
Passenger/Right Front Support Bracket
2
Center Support Brackets
2
12-1.75mm x 30mm Hex Bolts
Passenger/
Right Rear
Mounting
Bracket
Passenger/Right
Center Mounting
Bracket
Note: Use location of threaded inserts in bottom of tube to identify front of Sidebar
Front of Sidebar-inserts slightly closer to end of tube
Page 1 of 6

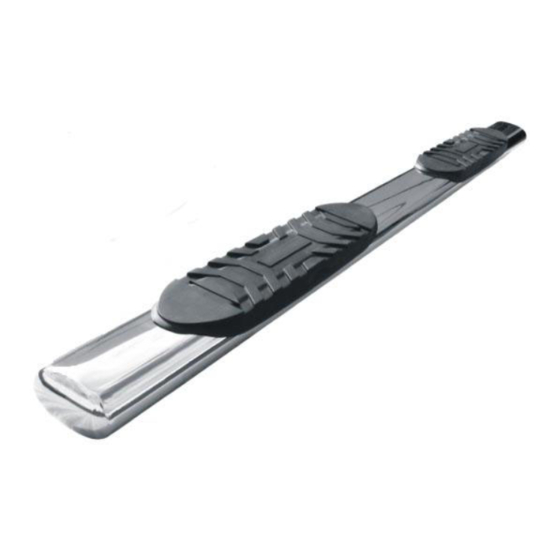

5" Oval Nerf Bar
Part No. A7003S/B
Part Description
(2) 10mm Nut Plates
Passenger/Right
Front Support Bracket
Center
Support
Bracket
Passenger/Right Front
Mounting Bracket
PARTS LIST:
Qty
4
12mm x 32mm x 3mm Flat Washers
2
12mm Lock Washers
2
12mm Hex Nuts
2
10mm Nut Plates
6
10-1.50mm x 30mm Hex Bolts
10
10mm x 20mm OD x 2mm Flat Washers
6
10mm Lock Washers
4
10mm Hex Nuts
12
8-1.25mm x 25mm Hex Bolts
12
8mm ID x 24mm OD x 2mm Flat Washers
12
8mm Lock Washers
Driver/Left Front
Support Bracket
Driver/Left Front
Mounting Bracket
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left
Mounting
Bracket
Center
Support
Bracket
Driver/Left
Center Mounting
Bracket
Drilling Not
Required
Rear
Rear
Rev 022818
