Fits:
2019 Chevy Silverado/GMC Sierra 1500 Crew Cab
Excludes Body Lift Kit
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/left side 3" Oval Bent End Sidebar
1
Passenger/right side 3" Oval Bent End Sidebar
1
Driver/left Front Mounting Bracket
1
Passenger/right Front Mounting Bracket
2
Center Support Brackets
1
Driver/left Rear Mounting Bracket
Front
Page 1 of 6

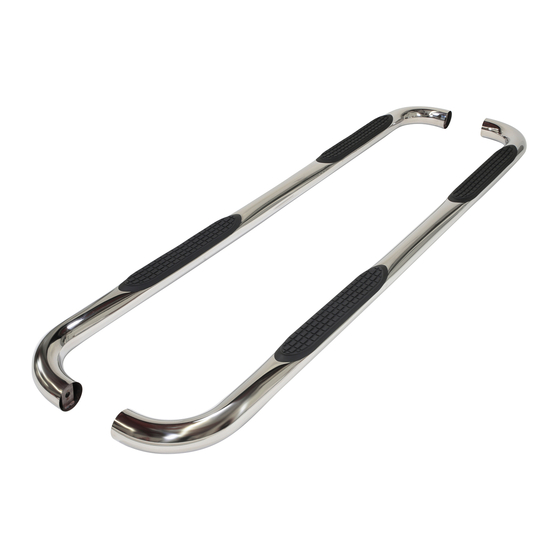

3" Side Bar
Part No. A0057S /B
Part Description
Passenger/right
Rear Bracket
Passenger/right
Mounting Bracket
Driver/left side 3" Bent End Sidebar

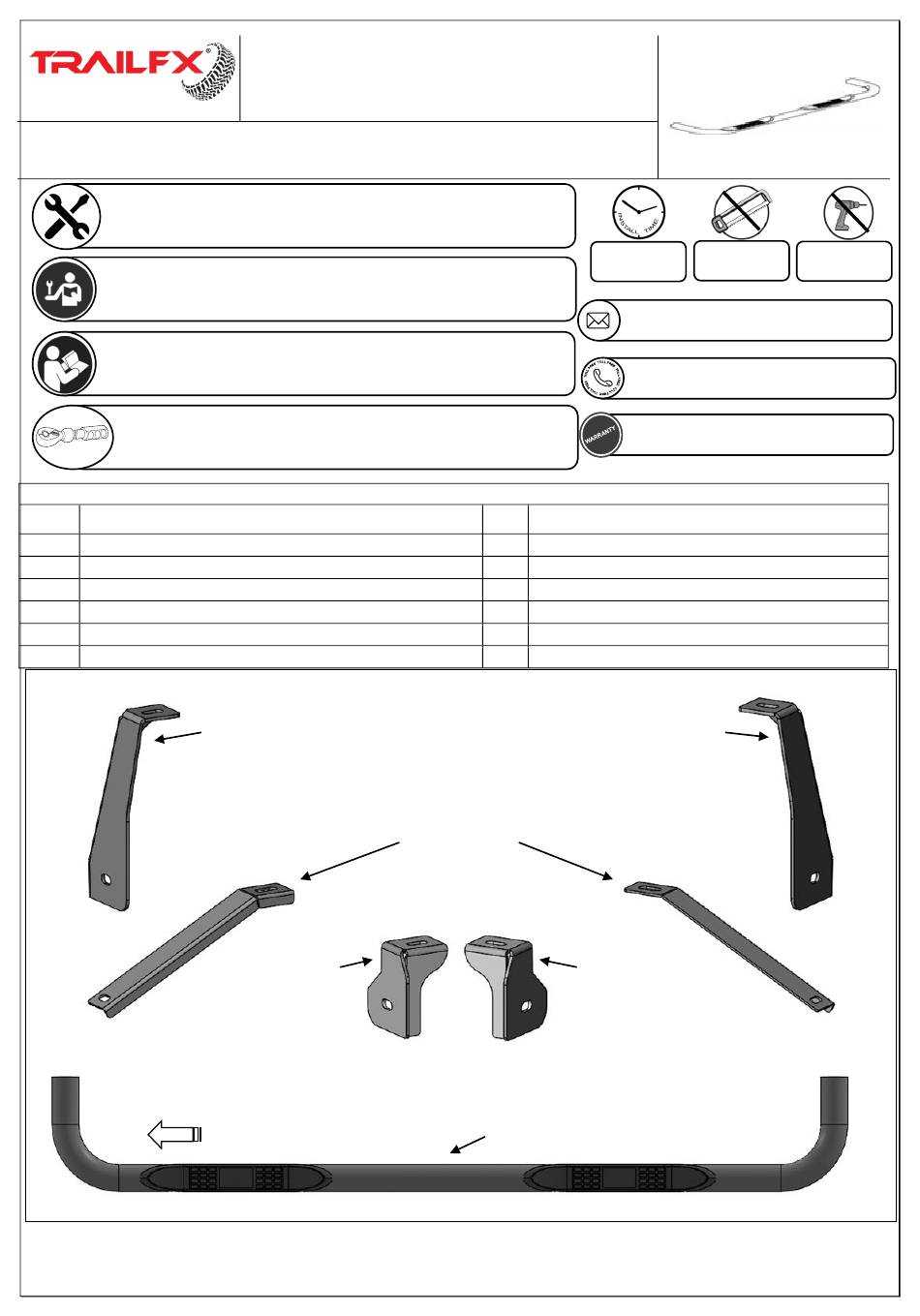

PARTS LIST:

Qty
1
Passenger/right Rear Mounting Bracket
4
1/2" x 2" Hex Bolts
4
1/2" Lock Washers
4
1/2" x 1-1/2" OD x 1/8" Large Flat Washers
2
8-1.25mm x 25mm Combo Bolts
(2) Center Support
Brackets
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/left
Rear Bracket
Driver/left side
Mounting Bracket
www.TrailFX.com
Drilling Not
Required
Rev122718

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A0057S/B and is the answer not in the manual?

Questions and answers

Related Manuals for TrailFX A0057S/B

Summary of Contents for TrailFX A0057S/B

  • Page 1 3" Side Bar Part No. A0057S /B Fits: 2019 Chevy Silverado/GMC Sierra 1500 Crew Cab Excludes Body Lift Kit Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
  • Page 2 PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY PARTS PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE RECOMMENDED. 1. Start the installation under the driver/left side of the vehicle. Locate the front body mount, (Figure 1). Remove the front body bolt.
  • Page 3 Reuse factory body bolt Front Front (Fig 4) Center Support Bracket (Fig 3) Driver/left side center mounting location attached to center body mount Driver/left Side Installation Pictured Reuse factory body bolt Front (Fig 5) Driver/left side rear mounting location...
  • Page 4 Front Front (Fig 8) Driver/left Sidebar attached to Front Bracket 8mm Combo Bolt (Fig 9) Driver/left center of Sidebar attached to Center Support Bracket illustrated Driver/left Side Installation Pictured Front 8mm Combo Bolt (Fig 10) Driver/left Sidebar attached to Center Support Bracket 1/2”...
  • Page 5 Front 1/2” x 2” Hex Bolt 1/2” Lock Washer 1/2” Flat Washer (Fig 12) Driver/left Sidebar attached to the Rear Mounting Bracket Page 5 of 6 Rev122718...
  • Page 6 Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. www.TrailFX.com Check out these other TrailFX Products!! Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
