Fits: 2020 GLADIATOR
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 7 TO 8.5 FOOT POUND
FOR M6, 18 TO 20 FOOT POUD FOR M8 AND 35 TO 40 FOOT POUND
FOR M10.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Center Mounting Bracket
1
Passenger/Right Center Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
1
Driver/Left Front Support Bracket
1
Passenger/Right Front Support Bracket
1
Driver/Left Center Support Bracket
1
Passenger/Right Center Support Bracket
Page 1 of 7

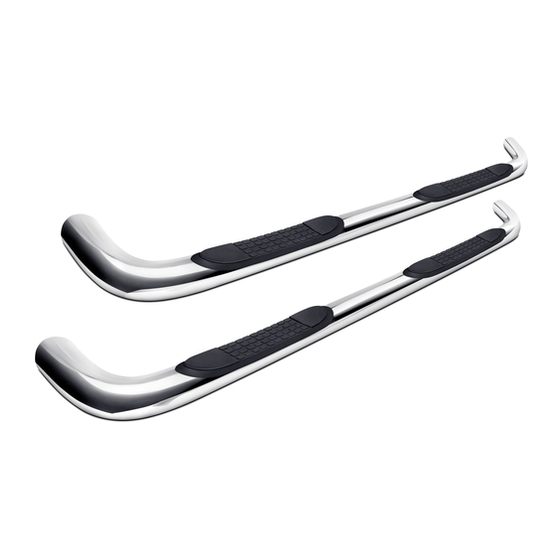

5" Oval Straight End Sidebar
Part No. A7099S /B
Part Description
PARTS LIST:
Qty
1
Driver/Left Rear Support Bracket
1
Passenger/Right Rear Support Bracket
6
10-1.5mm x 30mm Hex Bolts
12
10mm x 24mm x 2.2mm Flat Washers
6
10-1.5mm Nylon Lock Nuts
12
8-1.25mm Combo Bolts
6
8-1.25mm x 35mm Hex Bolts
6
8mm Lock Washers
6
8mm x 28mm x 3mm Flat Washers
12
6-1.0mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6-1.0mm Nylon Lock Nuts
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling not
Required
Rev R00; 101519
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A7099S
Summary of Contents for TrailFX A7099S
- Page 1 5" Oval Straight End Sidebar Part No. A7099S /B Fits: 2020 GLADIATOR Drilling not Cutting Not 60-180 min REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. Required Required support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 1 866 638 4870 DO NOT OVER TORQUE.
- Page 2 Passenger/Right Passenger/Right Driver/Left Center Driver/Left Rear Passenger/Right Rear Center Support Bracket Support Bracket Front Support Support Bracket Driver/Left Support Bracket Bracket Front Support Bracket Passenger/Right Driver/Left Rear Mounting Rear Passenger/Right Driver/Left Front Mounting Bracket Front Mounting Mounting Bracket Bracket...
- Page 3 9. Repeat Steps 2—8 for Driver/Left Sidebar installation. Do periodic inspections to the installation to make sure that all hardware is secure and tight To protect your investment, Do not use any type of polish or wax that may contain abrasives that could damage the finish.
- Page 4 (2) 6mm Hex Bolts Front (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts (Fig 5) Passenger/Right Front Mounting Bracket attached Front (Fig 6) Attach Support Bracket to back of pinch weld Passenger/Right Side Installation Pictured (1) 10mm Hex Bolt...
- Page 5 Front Front (Fig 9) Passenger/Right 2nd mounting location (Fig 10) Passenger/Right Center Mounting Bracket attached Passenger/Right Side Installation Pictured The Rear Support The Center Support Bracket has a notch Bracket has a hole in in the top. the top. It also has a...
- Page 6 Front (Fig 15) Passenger/Right Sidebar installation (Passenger/Right front shown) Page 6 of 7 Rev R00; 101519...
- Page 7 Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. www.TrailFX.com Check out these other TrailFX Products!! Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
