TrailFX A1007S/B Manual

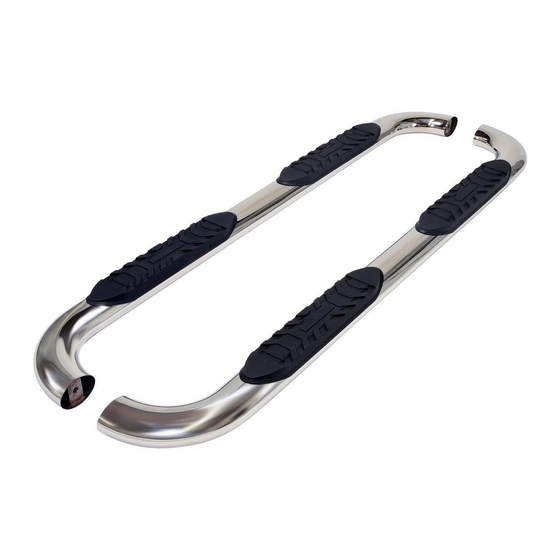

4" oval nerf bar
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Fits: 2009-2018
2010-Current
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
3
Driver/left front, passenger center/rear Mounting Brackets
3
Passenger/right front, driver center/rear Mounting Brackets
3
Driver/left front, passenger center/rear Support Brackets
3
Passenger/right front, driver center/rear Support Brackets
6
8mm Nut/Bolt Plates
6
8mm Plastic Retainers
18
8mm-1.25 x 30 Hex Bolts
Center and rear
Brackets
(2) Passenger/Right
center/rear, same as
driver front Brackets
Passenger/Right
front, same as driver
center/rear Brackets
Driver/left Side Step
illustrated. Note front step
pad is closer to front end
of tube

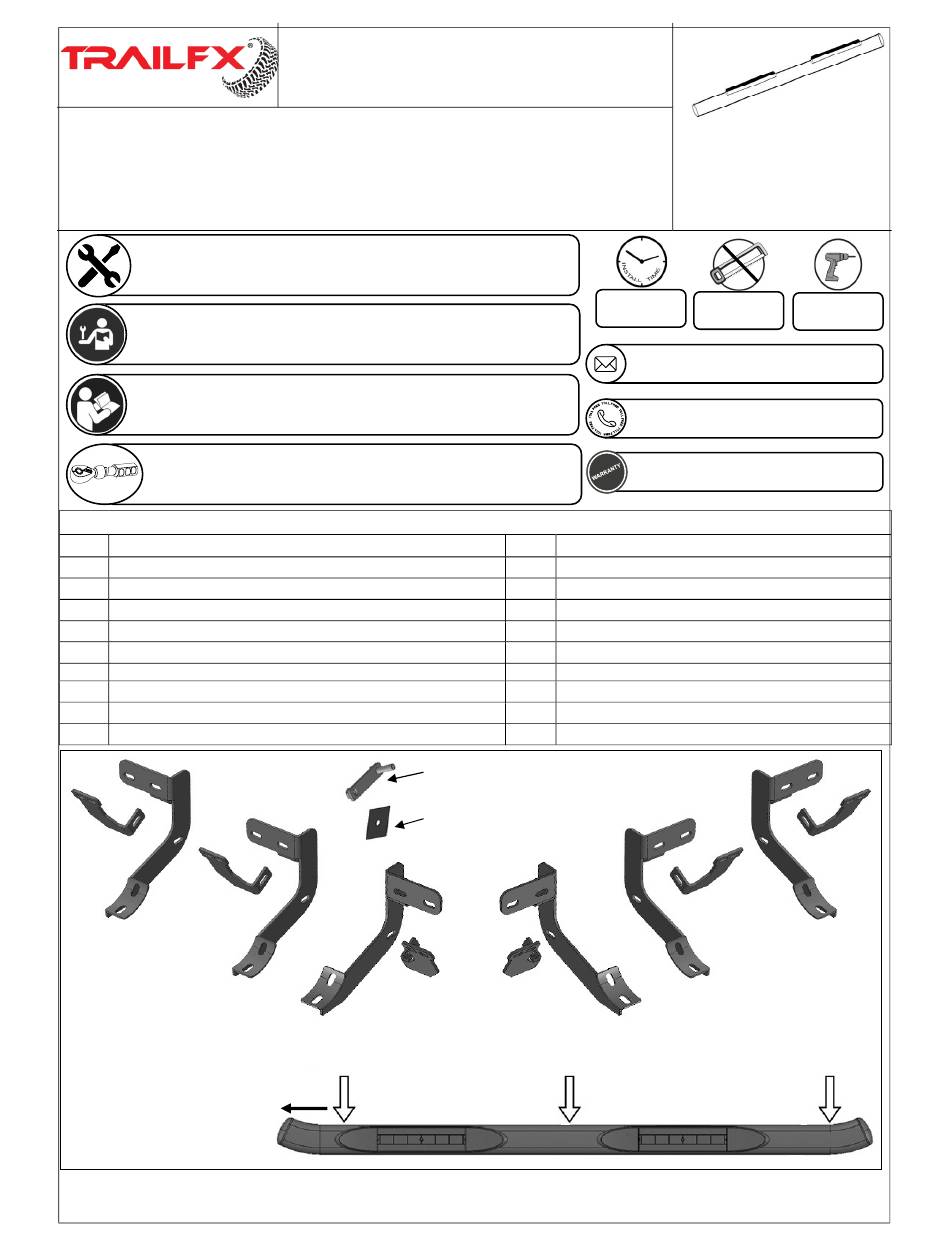

Page 1 of 7
4" Oval Nerf Bar
Part No.
Dodge Ram 1500 Crew Cab
(Incl. 19-20 Ram 1500 Classic)
Dodge Ram 2500/3500 Crew Cab
(Incl. Chassis Cab Diesel models)
Part Description
Arrows show approximate
location of inserts in
bottom of Side Step
Front
A1007S/B
60-180 min
PARTS LIST:
Qty
12
8mm-1.25 x 25mm Combination Hex Bolts
24
8mm x 24mm x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Nylon Lock Nuts
12
6mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6mm Nylon Lock Nuts
(6) 8mm Bolt x 8mm
Nut Plates
(6) Plastic
Retainers
Driver/Left front, same as
passenger center/rear Brackets
www.TrailFX.com
Cutting Not
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Center and rear
Brackets
(2) Driver/Left
center/rear, same as
passenger front
Brackets
Rev 2 12-14-20
Drilling is
Required
