TrailFX A1543S Quick Start Manual

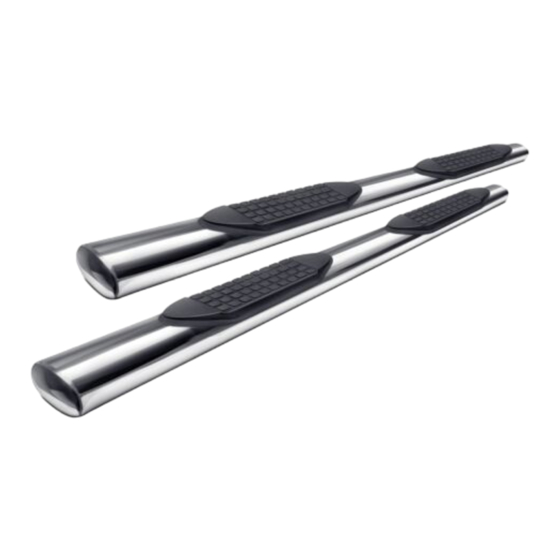

4" oval straight side bar for dodge ram
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Fits:
2019
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/left side 4" Oval Straight Sidebar
1
Passenger/right side 4" Oval Straight Sidebar
6
Front
Page 1 of 4
4" Oval Straight Side Bar
Part No. A1543S /B
Dodge Ram 1500 Quad Cab
Part Description
Mounting Brackets

PARTS LIST:

Qty
12
18
18
(6) Left or Right
Mounting Brackets
Passenger/right
Sidebar
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
8-1.25mm x 25mm Combo Hex Bolts
8mm x 24mm x 2mm Flat Washers
8-1.25mm Nylon Lock Nuts
Arrows indicate location of
threaded inserts in bottom
of Sidebar
www.TrailFX.com
Drilling Not
Required
Rev 081518

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A1543S and is the answer not in the manual?

Questions and answers

Related Manuals for TrailFX A1543S

Summary of Contents for TrailFX A1543S

  • Page 1 4" Oval Straight Side Bar Part No. A1543S /B Fits: 2019 Dodge Ram 1500 Quad Cab Cutting Not Drilling Not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
  • Page 2 PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. Start the installation under the passenger side of the vehicle. Locate the front (3) factory studs along the inner side of the body panel, (Figure 1).
  • Page 3 Passenger/right Side Installation Pictured Front Rear (Fig 6) Passenger/right rear mounting location (Fig 5) Attach Mounting Bracket to passenger/right center location Front (2) 8mm Combo Hex Bolts Front Front (Fig 7) Attach Passenger/right Sidebar to front Bracket (2) 8mm Combo Hex Bolts...
  • Page 4 Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. www.TrailFX.com Check out these other TrailFX Products!! Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.

This manual is also suitable for:

A1543b
