Fits: 2018
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty

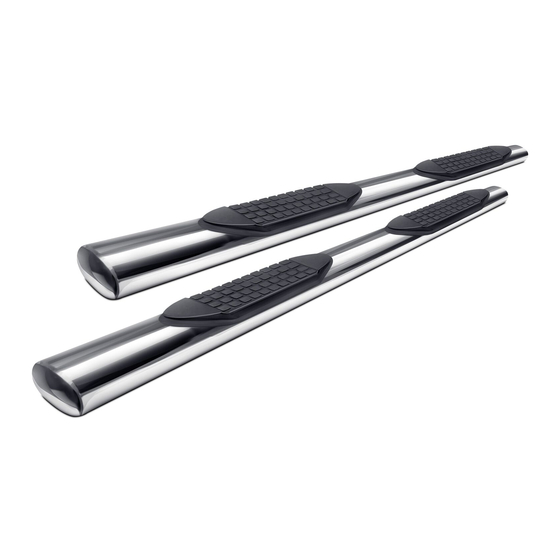

Driver/left side 4" Oval Straight Sidebar
1
Passenger/right side 4" Oval Straight Sidebar
1
1
Driver/left side Front Mounting Bracket
1
Passenger/right side Front Mounting Bracket
1
Driver/left side Center Mounting Bracket
1
Passenger/right side Center Mounting Bracket
1
Driver/right side Rear Mounting Bracket
1
Passenger/right side Rear Mounting Bracket
1
Driver/left side Front Support Bracket
1
Passenger/right side Front Support Bracket
2
Driver/left side Center & Rear Support Brackets
Page 1 of 7
4" Oval Straight Side Bar
Part No. A1545S/T
Jeep Wrangler JL (4 Doors)
Part Description
PARTS LIST:
Qty
2
Passenger/right side Center & Rear Support Brackets
6
10-1.5mm x 30mm Hex Bolts
12
10mm x 24mm x 2mm Flat Washers
6
10-1.5mm Nylon Lock Nuts
12
8-1.25mm Combo Bolts
6
8-1.25mm x 35mm Hex Bolts
6
8mm x 28mm x 3mm Flat Washers
6
8mm Lock Washers
12
6-1.0mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6-1.0mm Nylon Lock Nuts
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling Not
Required
Rev 012819
