Fits: 2010-Current Dodge Ram 2500/3500 Mega Cab
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
Driver/left Front, Passenger Center and Rear
3
Mounting Brackets
Passenger/right Front, Driver Center and Rear
3
Mounting Brackets
3
Support Brackets (DS Front & PS Center/Rear)
3
Support Brackets (PS Front & DS Center/Rear)
6
8mm Nut/Bolt Plates
6
8mm Plastic Retainers
18
8mm-1.25 x 30 Hex Bolts
Passenger/Right
Center and Rear
Support Brackets
Passenger/Right Front
Bracket (same as driver
center and rear brackets)
Note front step
pad is closer to
front end of tube
Page 1 of 7

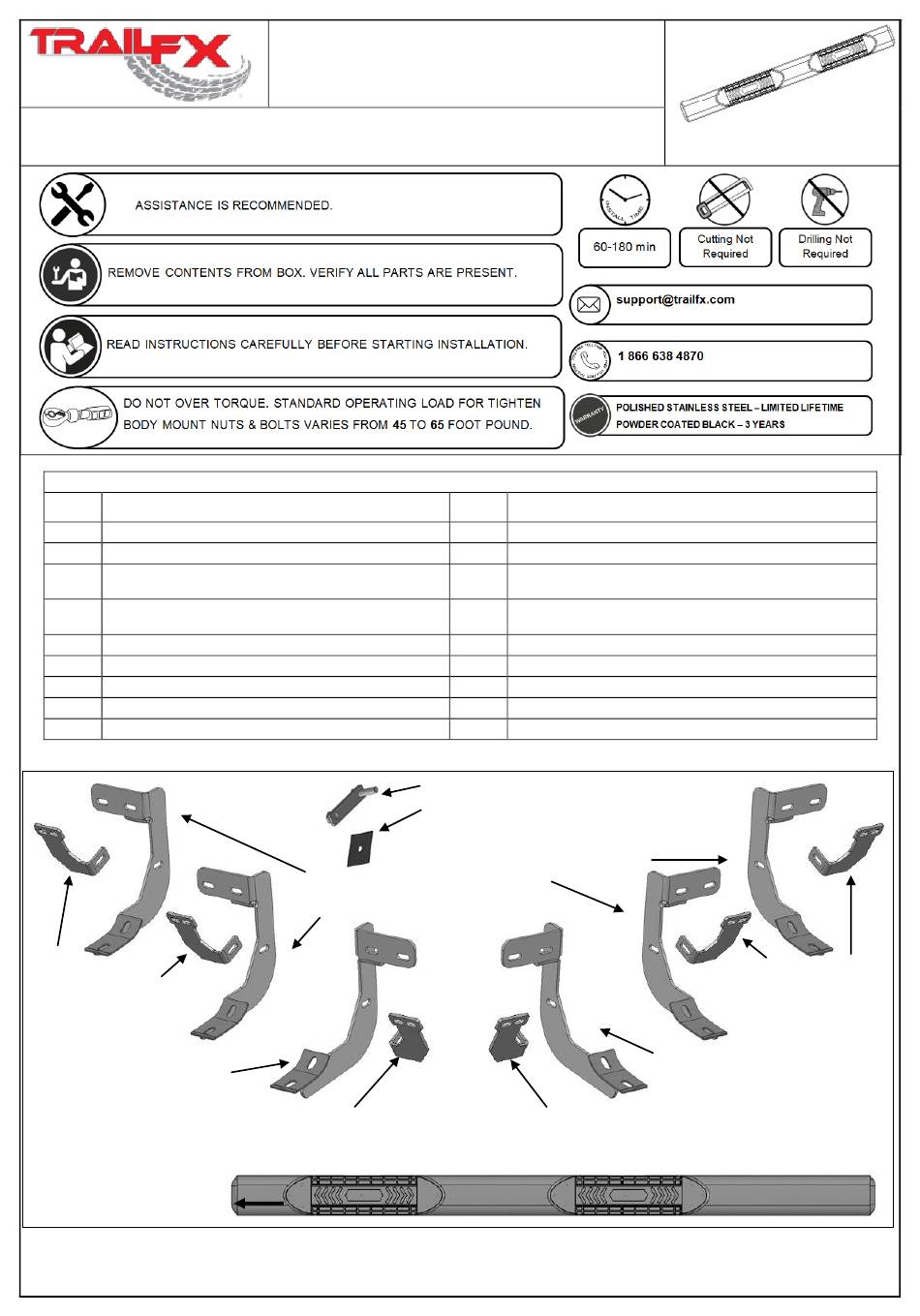

6'' Oval Straight Side Bar
Part No. A8245S/B
Part Description
Passenger/Right Rear and
Center Mounting Brackets
Passenger/Right Front Support
Bracket (same as driver center
and rear brackets)
Front
PARTS LIST:
Qty
24
8mm x 24mm x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Nylon Lock Nuts
12
8mm-1.25 x 25mm Combination Hex Bolts
12
6mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6mm Nylon Lock Nuts
(6) 8mm Bolt x 8mm Nut Plates
(6) Plastic Retainers
Driver/Left Center and Rear
Mounting Brackets
Driver/Left Front Support
Bracket (same as passenger
center and rear brackets)
www.TrailFX.com
Part Description
Driver/Left Center and
Rear Support Brackets
Driver/Left Front Mounting
Bracket (same as passenger
center and rear brackets)
Rev 111416
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A8245S/B
Summary of Contents for TrailFX A8245S/B
- Page 1 6'' Oval Straight Side Bar Part No. A8245S/B Fits: 2010-Current Dodge Ram 2500/3500 Mega Cab PARTS LIST: Part Description Part Description Driver/Left Sidebar 8mm x 24mm x 2mm Flat Washers Passenger/Right Sidebar 8mm Lock Washers Driver/left Front, Passenger Center and Rear...
- Page 2 PROCEDURE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. DRILLING MAY BE REQUIRED. Starting at the driver side-front of the vehicle, remove the sealing tape covering the factory holes in the side of the inner panel, (Figure 1).
- Page 3 Select the driver side front Mounting Bracket, (Figure 6). Attach the Bracket to the threaded end of the Bolt Plate with (1) 8mm Flat Washer, (1) 8mm Lock Washer and (1) 8mm Hex Nut, (Figure 7). Do not tighten at this time.
- Page 4 Next, select the driver side front Support Bracket. Attach the Bracket to the front facing side of the front Bracket with (1) 8mm x 30mm Hex Bolt, (2) 8mm Flat Washers and (1) 8mm Nylon Lock Nut, (Figure 11). Rotate the Support Bracket to the back of the pinch weld.
- Page 5 IMPORTANT: 2009-2010 models without holes in pinch weld will require drilling 1/4” holes through pinch weld to attach driver side front support bracket. Do complete installation of sidebars first, level sidebar before drilling holes for support bracket. Front (Fig 16) Attach Driver/Left Support Bracket to back of Center Mounting Bracket Move to the rear location, (Figure 17).
- Page 6 8mm Hex Bolt (2) 8mm Flat Washers Rear 8mm Nylon Lock Nut Rear (Fig 17) Driver/Left rear mounting location (Fig 18) Driver/Left rear Mounting Bracket assembly Front Front (2) 8mm Combo (2) 8mm Combo Hex Bolts Hex Bolts (Fig 20) Driver/left center Bracket assembly...
-
Page 7: Product Care
Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
