TrailFX A1018S/T Assembly, Installation, Operation And Maintenance Instructions

Dealer / Installer: Provide a copy of these instructions to the end user for this product. These
End User:

APPLICATION

: 2021 BRONCO SPORT
Description
Driver/Left 4inch Sidebar
Passenger/Right 4inch Sidebar
Driver/Left Front Mounting Bracket
Passenger/Right Front Mounting Bracket
Driver/Left Center Mounting Bracket
Passenger/Right Center Mounting Bracket
Driver/Left Rear Mounting Bracket
Passenger/Right Rear Mounting Bracket
Driver/Left Center Support Bracket
Passenger/Right Center Support Bracket
Driver/Left Front/Rear Support Brackets
Passenger/Right Front/Rear Support Brackets
Compression Plates
Visit www.trailfx.com
Assembly, Installation, Operation and
Maintenance Instructions

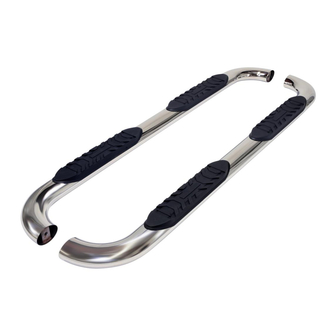

4" Oval Bent Nerf Bar
instructions contains details for proper maintenance, FAQs and warranty information
for the end user in relation to this product.
Read and follow all instructions included in this manual. Ask your Dealer / Installer
for assistance if you do not understand the proper installation or maintenance of the
product. Failure to follow instructions can result in product failure or performance.

Parts List

Qty
1 10mm x 40mm Long Bolt Plates
1 10mm x 40mm Short Bolt Plates
1 10mm Spiral Bolts
1 10mm x 60mm Hex Bolts
1 10mm x 27mm OD x 3mm Flat Washers
1 10mm Lock Washers
1 10mm Hex Nuts
1 10mm Plastic Retainers
1 8mm x 25mm Combo Bolts
1 8mm x 25mm Hex Bolts
2 8mm x 24mm OD x 2mm Flat Washers
2 8mm Lock Washers
2 8mm Hex Nuts
or 1 (866) 638-4870 for Warranty Information / Tech Support / Product Updates.
2021 Keystone Automotive Operations Inc. All Rights Reserved. 10/20/2021-R01
Description
Part Number:
A1018S/T
60 - 180 minutes

Torque Specs

Size
Qty
2 8mm
2 10mm
8
2
14
14
14
4
12
8
16
8
8
Torque
65.6 in-lbs.
10.8 ft-lbs.
Page-1 - 8
