TrailFX A1536S/B Quick Start Manual

TrailFX A1536S/B Quick Start Manual

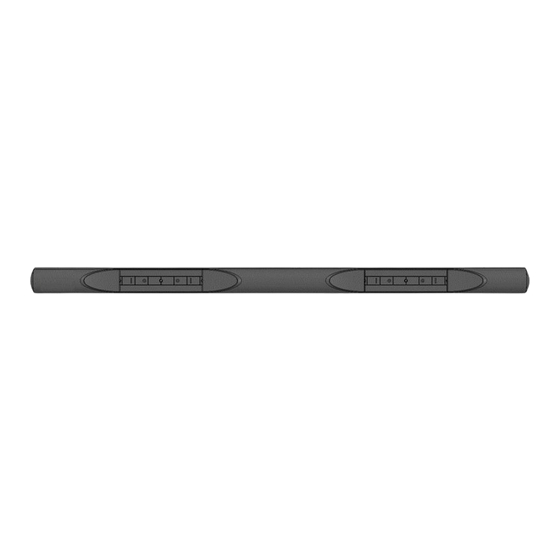

4" oval nerf bar

Advertisement

Quick Links

2009-Current
Fits:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
3
Driver/left Mounting Brackets
3
Passenger/passenger Mounting Brackets
3
Driver/left Support Brackets
3
Passenger/right Support Brackets
6
8mm Nut/Bolt Plates
6
8mm Plastic Retainers
18 8mm-1.25 x 30 Hex Bolts
(3) Passenger/Right
Mounting Brackets
Passenger/Right Support Brackets
Driver/left Side Step
illustrated. Note front step
pad is slightly further away
from front end of tube
Page 1 of 7
4" Oval Nerf Bar
Part No.
Dodge Ram 1500 Quad Cab
Part Description
Arrows show approximate location
of inserts in bottom of Sidebars
Front
A1536S/B

PARTS LIST:

Qty
12
8mm-1.25 x 25mm Combination Hex Bolts
24
8mm x 24mm x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Nylon Lock Nuts
12
6mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6mm Nylon Lock Nuts
(6) 8mm Bolt x 8mm Nut Plates
(6) Plastic Retainers
(3) Driver/Left
Mounting Bracket
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
(3) Driver/Left Support Brackets
Drilling is
Required
Rev 022818
