FACTORY SIDE AND LOWER ROCKER COVERS MUST BE REMOVED
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
Page 1 of 4

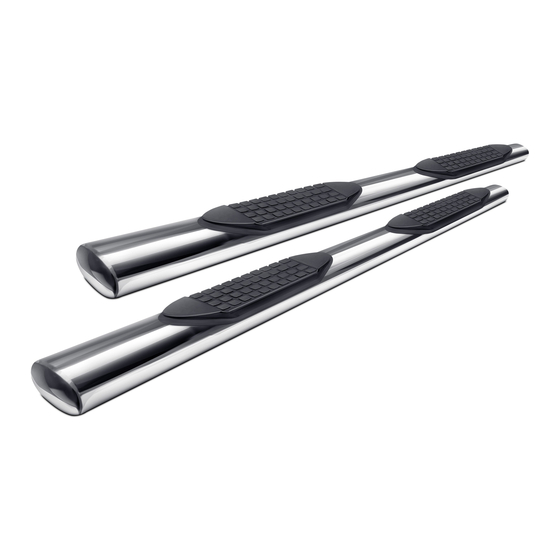

4" Oval Nerf Bar
Part No. A1501S/B
Chevrolet Tahoe 4 DOOR
GMC Yukon 4 DOOR. 1500
Part Description
Passenger/Right
Rear Mounting
Bracket
Passenger/Right Front
Mounting Bracket
PARTS LIST:
Qty
4
12-1.75mm x 120mm x 35mm Hex Bolts
4
12mm x 44mm OD x 4mm Flat Washers
4
12mm Lock Washers
8
8mm Combo Bolts
Driver/Left Rear
Mounting Bracket
Driver/Left Front
Mounting Bracket
www.TrailFX.com
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Front
Drilling Not
Required
Rev 010119
