TrailFX ARBV007B Assembly, Installation, Operation And Maintenance Instructions

Dealer / Installer: Provide a copy of these instructions to the end user of this product. These instructions
provide important operating and safety information for proper usage of this product.
Demonstrate the proper use of the product with the end user. Have the end user
demonstrate that they understand the proper use of the product.
End User: Read and follow all instructions included in this manual. Ask your Dealer / Installer for
assistance if you do not understand the proper use of the product. Never remove any
WARNING
decals from the product. Failure to follow these instructions can result in injury or death.
APPLICATION:
2014-Current PROMASTER WITH PASSENGER SIDE SLIDING DOOR 136"/159''WHEEL BASE FULL SIZE VAN
Qty

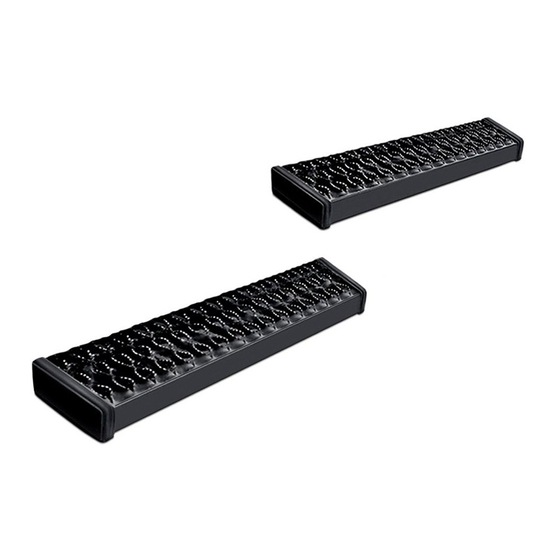

1 53" Aggressive Running Board
3 Mounting Brackets
3 Support Brackets
3 8mm Double Bolt Plates
3 8-1.25mm x 35mm Button Head Bolt Plates
3 8mm Plastic Retainers
3 8-1.25mm x 25mm Hex Bolts
3 8mm x 28mm OD x 3mm Large Flat Washers
6 8mm x 24mm OD x 2mm STD Flat Washers
Size
6 MM
(3) Support
Brackets
Visit www.trailfx.com
Assembly, Installation, Operation and
Maintenance Instructions
Aggressive Running Boards -Van
Part Description
TORQUE SPECIFICATION
Torque
8.5 ft/lbs
or 1 (866) 638-4870 for Warranty Information / Tech Support / Product Updates.
2021 Keystone Automotive Operations Inc. All Rights Reserved. 03/29/2022-R01
PARTS LIST
Qty
6 8mm x 16mm OD x 1.6mm Small Flat Washers
9 8mm Lock Washers
9 8mm Hex Nuts
3 8mm Nylon Lock Nuts
3 6mm x 25mm Hex Bolts
6 6mm x 18mm OD x 1.6mm Flat Washers
3 6mm Lock Washers
3 6mm Hex Nuts
Size
8 mm
(3) Support
Brackets
Part Number:
ARBV007B
60 - 180 minutes
Part Description
Torque
20 ft/lbs
(3) Support
Brackets
(3) Support
Brackets
Page-1-6
