Fits:
2020 GLADIATOR
Including Diesel models with DEF tanks
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1 Driver/Left Sidebar
1 Passenger/Right Sidebar
1 Driver/Left Front Mounting Bracket
1 Passenger/Right Front Mounting Bracket
1 Driver/Left Center Mounting Bracket
1 Passenger/Right Center Mounting Bracket
1 Driver/Left Rear Mounting Bracket
1 Passenger/Right Rear Mounting Bracket
1 Driver/Left Front Support Bracket
1 Passenger/Right Front Support Bracket
1 Driver/Left Center Support Bracket
1 Passenger/Right Center Support Bracket
Page 1 of 6

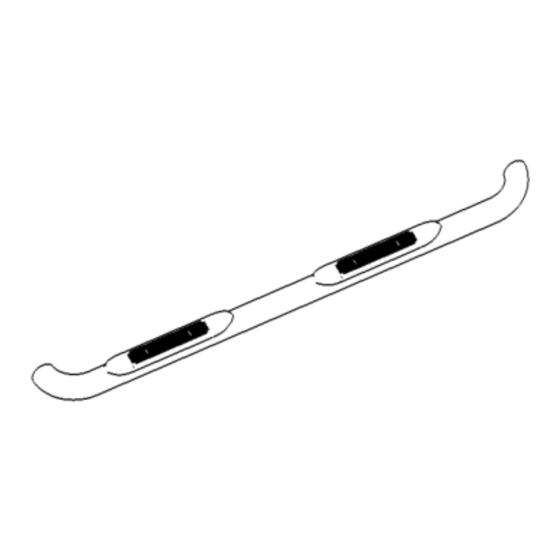

4" Oval Bend Nerf Bar
Part No.
Part Description
A1017S/B
PARTS LIST:
Qty
1 Driver/Left Rear Support Bracket
1 Passenger/Right Rear Support Bracket
6 10-1.5mm x 30mm Hex Bolts
12 10mm x 24mm x 2.2mm Flat Washers
6 10-1.5mm Nylon Lock Nuts
12 8-1.25mm Combo Bolts
6 8-1.25mm x 35mm Hex Bolts
6 8mm Lock Washers
6 8mm x 28mm x 3mm Flat Washers
12 6-1.0mm x 25mm Hex Bolts
24 6mm x 22mm x 2mm Flat Washers
12 6-1.0mm Nylon Lock Nuts
www.TrailFX.com
Cutting is not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Drilling is not
Required
Rev092519
Advertisement
Table of Contents
Related Manuals for TrailFX A1017S
Summary of Contents for TrailFX A1017S
- Page 1 4" Oval Bend Nerf Bar A1017S/B Part No. Fits: 2020 GLADIATOR Including Diesel models with DEF tanks Cutting is not Drilling is not 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. support@trailfx.com READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
- Page 2 Passenger/Right Passenger/Right Passenger/Right Driver/Left Center Driver/Left Rear Rear Center Front Support Support Bracket Support Bracket Driver/Left Support Bracket Support Bracket Bracket Front Support Bracket Driver/Left Rear Mounting Passenger/Right Passenger/Right Driver/Left Front Bracket Rear Mounting Front Mounting Mounting Bracket Bracket...
- Page 3 Sidebar on the Brackets or damage to the finish on the Sidebar may result. Attach the Sidebar to the Mounting Brackets with (6) 8mm x 25mm Combo Bolts, (Figure 15). Do not tighten hardware. 8. Level and adjust the Sidebar and tighten all hardware.
- Page 4 (2) 6mm Hex Bolts (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts Front Front (Fig 5) Passenger/Right Front (Fig 6) Attach Support Bracket Mounting Bracket attached to back of pinch weld Passenger/Right Side Installation Pictured (1) 10mm Hex Bolt...
- Page 5 Passenger/Right Side Installation Pictured The Rear Support The Center Support Bracket has a notch Bracket has a hole in in the top. the top. It also has a notch at the bottom Front Fig 11 (Fig 12) Passenger/Right Center Mounting Bracket...
- Page 6 6. Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
