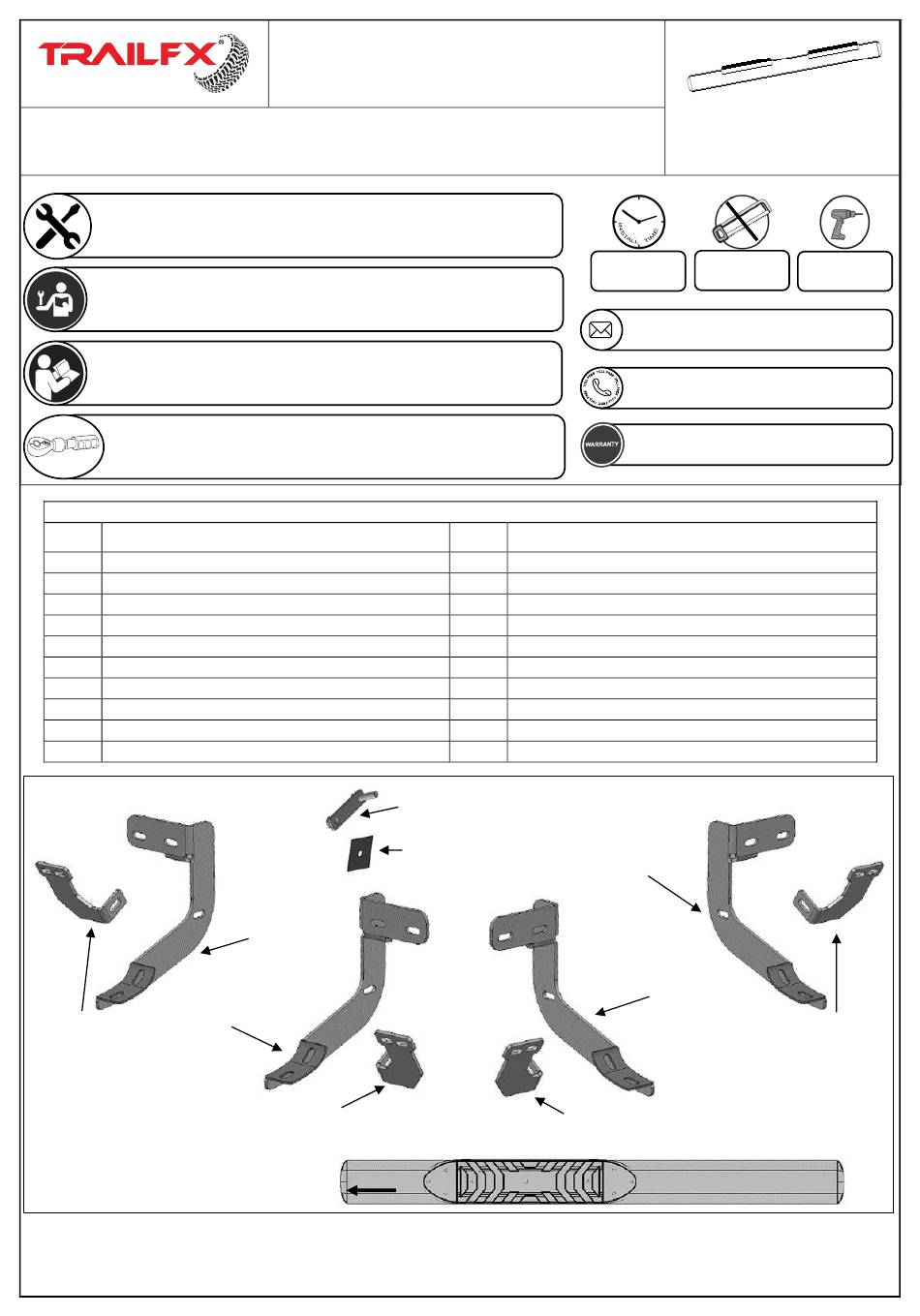

Fits: 2009 - Current Dodge Ram 1500 Regular Cab
2010 - Current Dodge Ram 2500/3500/4500/5500 Regular Cab
ASSISTANCE IS RECOMMENDED.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
2
Support Brackets (DS Front & PS Rear)
2
Support Brackets (PS Front & DS Rear)
4
8mm Nut/Bolt Plates
4
8mm Plastic Retainers
Passenger/Right
Front Bracket
Passenger/Right
Rear (driver
front) Support
Bracket
Passenger/Right Front
(driver rear) Support Bracket
Driver/left Side Step illustrated.
Note front step pad is slightly
closer to front end of tube
Page 1 of 6
5" Oval Nerf bar
Part No. A7054S/B
Part Description
Passenger/Right
Rear Mounting
Bracket
Front
PARTS LIST:
Qty
12
8mm-1.25 x 30 Hex Bolts
16
8mm x 24mm x 2mm Flat Washers
8
8mm Lock Washers
4
8mm Hex Nuts
4
8mm Nylon Lock Nuts
8
8mm-1.25 x 25mm Combination Hex Bolts
8
6mm x 25mm Hex Bolts
16
6mm x 22mm x 2mm Flat Washers
8
6mm Nylon Lock Nuts
(4) 8mm Bolt x 8mm Nut Plates
Driver/Left Rear
(4) Plastic
Mounting Bracket
Retainers
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Front
Mounting Bracket
Driver/Left Front (passenger
rear) Support Bracket
www.TrailFX.com
Drilling
Required
Driver/Left Rear
(passenger front)
Support Bracket
Rev 031318
Advertisement
Related Manuals for TrailFX A7054S/B
Summary of Contents for TrailFX A7054S/B
- Page 1 5" Oval Nerf bar Part No. A7054S/B Fits: 2009 - Current Dodge Ram 1500 Regular Cab 2010 - Current Dodge Ram 2500/3500/4500/5500 Regular Cab ASSISTANCE IS RECOMMENDED. Cutting Not Drilling 60-180 min Required Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
-
Page 2: Installation Procedure
INSTALLATION PROCEDURE: Starting at the driver side-front of the vehicle, remove the sealing tape covering the factory holes in the side of the inner panel, (Figure 1). Front (Fig 1) 2009-mid 2015 Driver/Left front mounting location (No factory holes... - Page 3 Select the driver side front Mounting Bracket, (Figure 6). Attach the Bracket to the threaded end of the Bolt Plate with (1) 8mm Flat Washer, (1) 8mm Lock Washer and (1) 8mm Hex Nut, (Figure 7). Do not tighten at this time.
- Page 4 Next, select the driver side front Support Bracket. Attach the Bracket to the front facing side of the front Bracket with (1) 8mm x 30mm Hex Bolt, (2) 8mm Flat Washers and (1) 8mm Nylon Lock Nut, (Figure 11). Rotate the Support Bracket to the back of the pinch weld.
- Page 5 Select the driver/left Sidebar. Carefully position the Sidebar onto the Mounting Brackets. IMPORTANT: Do not slide, (front to back or rotate), the Sidebar on the Brackets or damage to the finish on the Sidebar may result. Attach the Sidebar to the Brackets with (4) 8mm Combination Hex Bolts, (Figures 17 & 18). Do not fully tighten at this time.
-
Page 6: Product Care
Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
