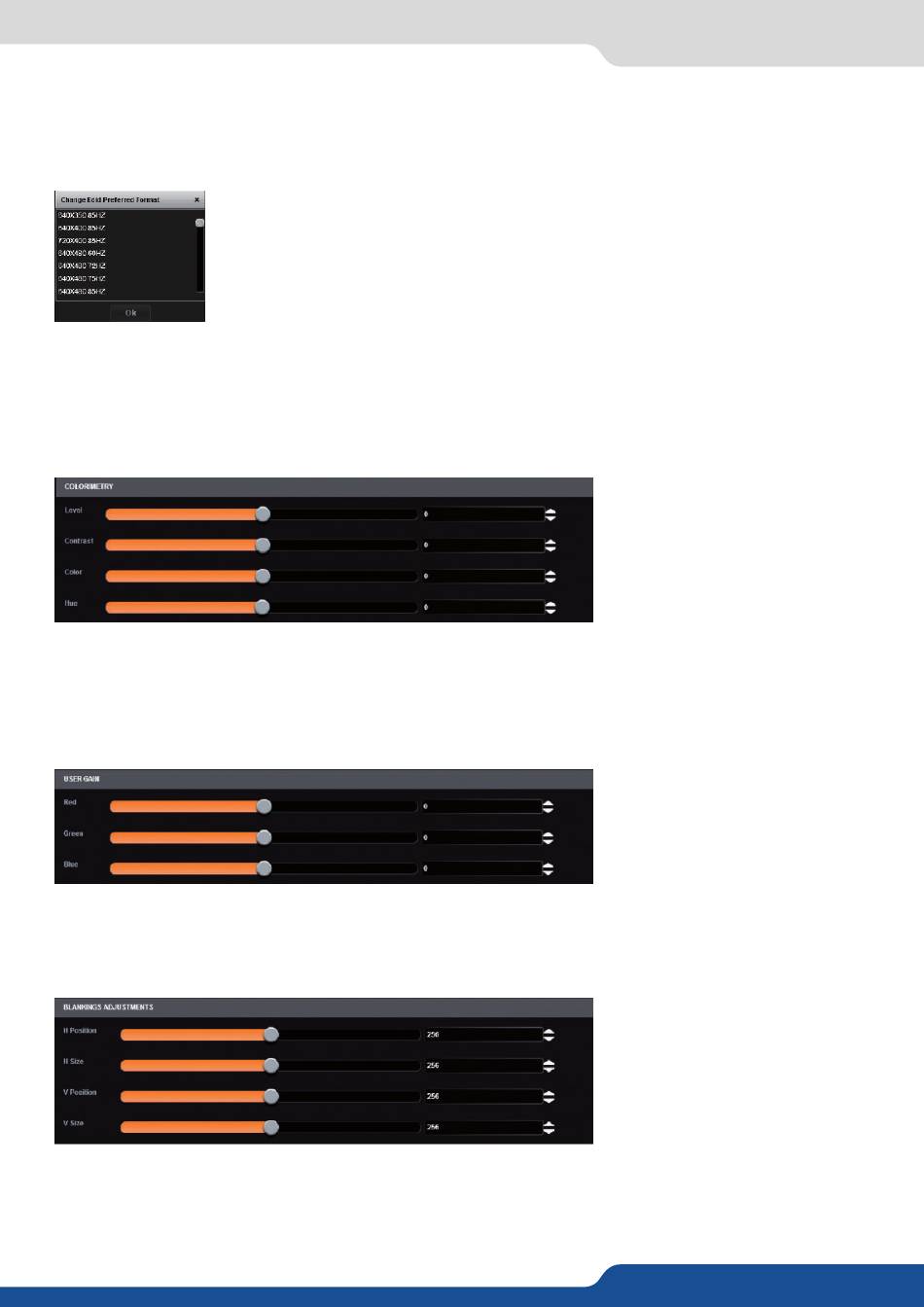

7.2.7 Input management
- STATUS: format and size of the input,
- CONTROL: Black: select Black to transform your input in a uniform color (black),
Freeze: use this button to freeze the specific input,
- EDID: choose the EDID for the selected plug.
Under the HDCP section, you can:
- Enable/disable the HDCP communication feature
- Read the HDCP status, If the HDCP status says Active, this output connection is currently utilizing HDCP to
protect the signal. if the HDCP status indicates Idle, this output connection is currrently not utilizing HDCP.
Next is the IMAGE tab, where you can find all settings about the display of your input:
Under the COLORIMETRY section, you have:
- LEVEL:
define the selected input luminosity level,
- CONTRAST:
define the selected input contrast level,
- COLOR:
define the selected input color level (0:black and white, full: full color),
- HUE:
set up the hue phase of your NTSC signal.
Under the USER GAIN section, you find:
- THE RED/GREEN/BLUE:
Next you have the ASPECT tab. All settings about the blanking and aspect ratio are available there:
Under the BLANKING ADJUSTEMENTS:
- H&V POSITION SIZE: you can manually adjust the input blanking with the V&H size or position.
32
increase/decrease the Red/Green/Blue level of your input.
