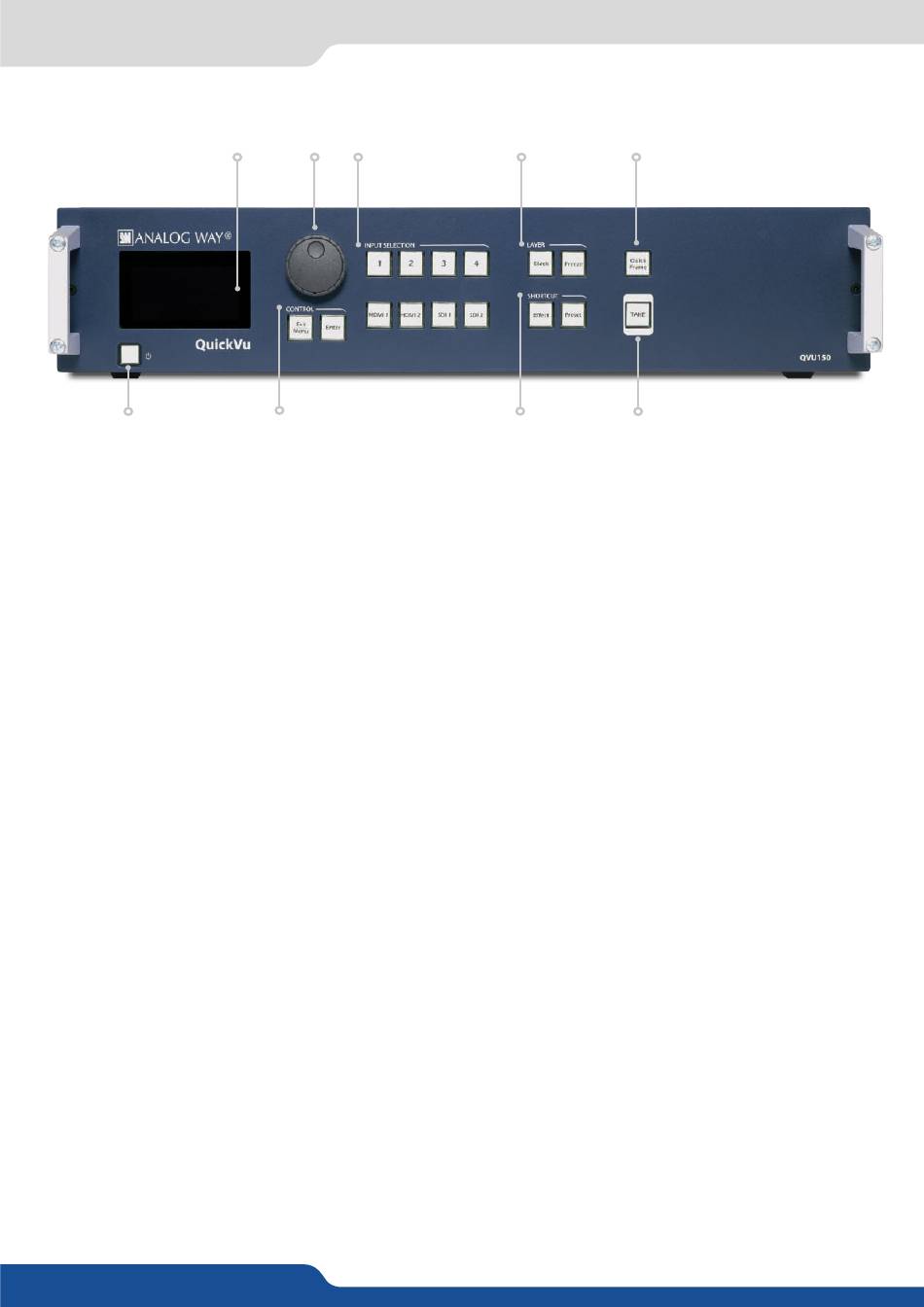

5.1.2 Front panel
6
1. Front panel display:
2. Menu scroll knob
3. Input selection:
- 1 to 4: access source 1 to 4
- HDMI 1/2: access HDMI 1 or HDMI 2
- SDI 1 to SDI 2: access SDI 1 to SDI 2
4. Layer:
- Black: clear the layer
- Freeze: freeze/unfreeze the input selected in the currently selected layer
5. Quick Frame:
allows to quickly display a foreground Frame
6. On/Off - Stand-by:
hold for 3 seconds for stand-by mode
7. Control:
Exit/menu: Home menu or back one level - Enter: validate the menu or command
8. Shortcut:
- Effect: shortcut to transition menu
- Preset: recall a custom stored preset
9. TAKE:
transition the pre-selected sources onto the Program output with the selected effects
1
2
3
7
4-line VFD
4
5
8
9
5.1.2 Front panel
23
