5.1.1 Rear panel
5. CONNECTING THE QUICKVU
5.1 Description

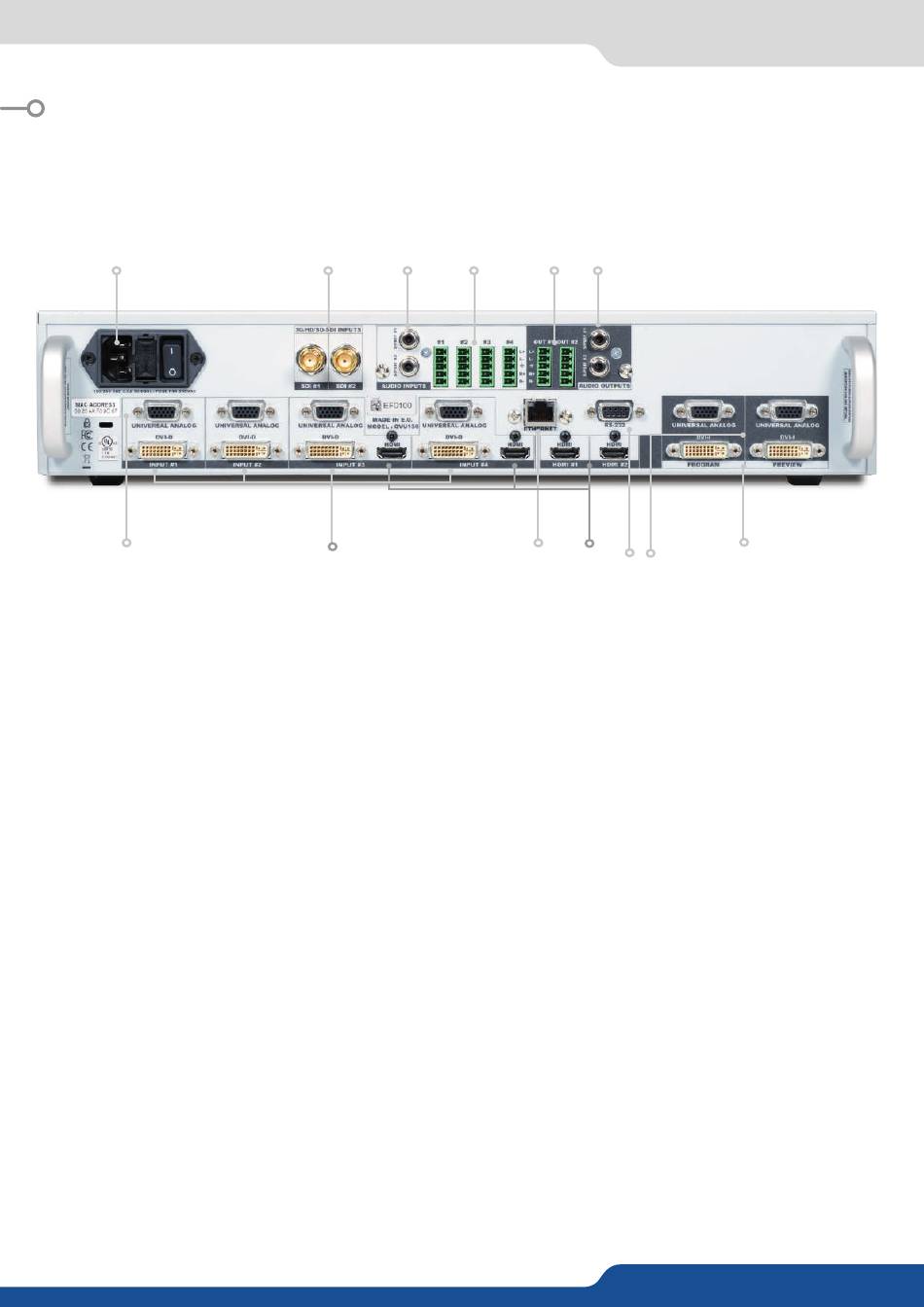

5.1.1 Rear panel
1
7
1. Power supply:
100-240 VAC 2.5A 50/60HZ /FUSE F4A 250 VAC; internal, autoswitchable; 110W
2. 3G/HD/SD-SDI:
SDI #1 to #2
3. S/PDIF:
audio inputs #1 to #2
4. MCO male connector:
5. MCO male connector:
6. S/PDIF:
audio outputs #1 to #2
7. Universal Analog Computer TV/HDTV:
8. DVI connectors:
DVI-D inputs #1 to #4. Capability to receive digital audio signal from HDMI connector via
an adaptor (HDMI-compatible)
9. Ethernet plug
10. HDMI connectors:
HDMI inputs #3 & #4 / HDMI #1 & HDMI #2
11. Communication port:
12. Universal Analog Computer TV/HDTV:
13. DVI connectors:
DVI-I outputs #1 to #2. Capability to transmit digital audio signal towards a HDMI
connector via an adaptor (HDMI-compatible)
22
2
3
8
for audio inputs (balanced) #1 to #4
for audio outputs (balanced) #1 to #2
inputs #1 to #4
communication port with DB9 female connector
HD15 outputs #1 to #2
4
5
6
9
10
11
12
13
