Drives mount on rails and should "click" into place to be correctly and fully installed
in their bays.
• The fl oppy disk drive cable has seven twisted wires.
• A red mark on a wire typically designates the location of pin 1.
• A single fl oppy disk drive ribbon cable has 34 wires and two connectors to provide
for two fl oppy disk drives. The connector with twisted wires always connects to
drive A, and the connector that does not have twisted wires always connects to
drive B.

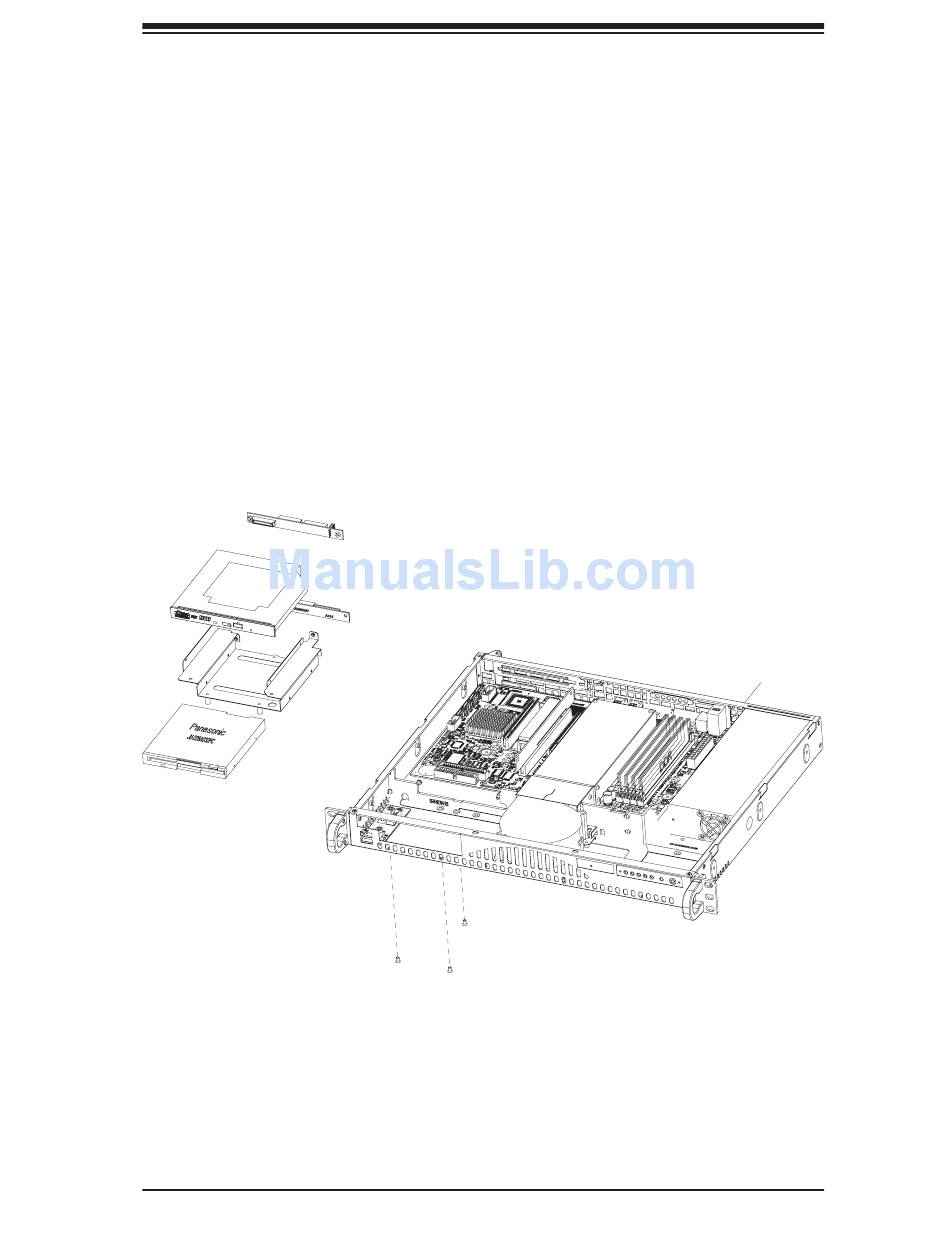

Figure 6-4. Removing the SATA/CD-ROM/Floppy Drive
Chapter 6: Advanced Chassis Setup
6-5
