Supermicro AS-1010S-MR User Manual page 25

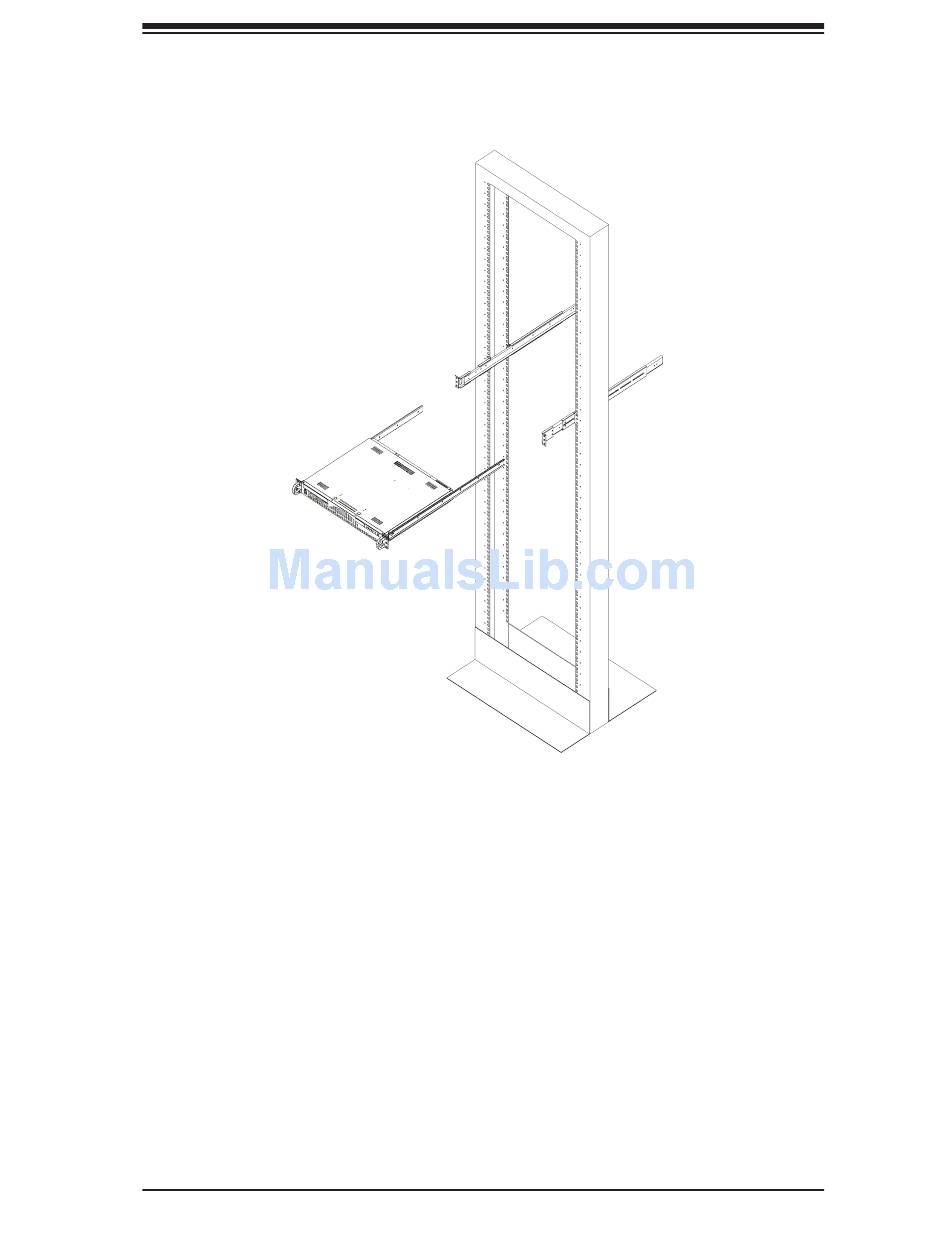

Figure 2-6. Installing the Server into a Telco Rack: w/ Rackmount Kit
the cover away from you until it stops. You can then lift the top cover from the
chassis to gain full access to the inside of the server.
2. Check the CPU (processor)
You may have one processor already installed into the system board. The pro-
cessor should have its own heatsink attached. See Chapter 5 for instructions
on processor installation.
3. Check the system memory
Your server system may have come with system memory already installed. Make
sure all DIMMs are fully seated in their slots. For details on adding system
memory, refer to Chapter 5.
Chapter 2: Server Installation
2-9
