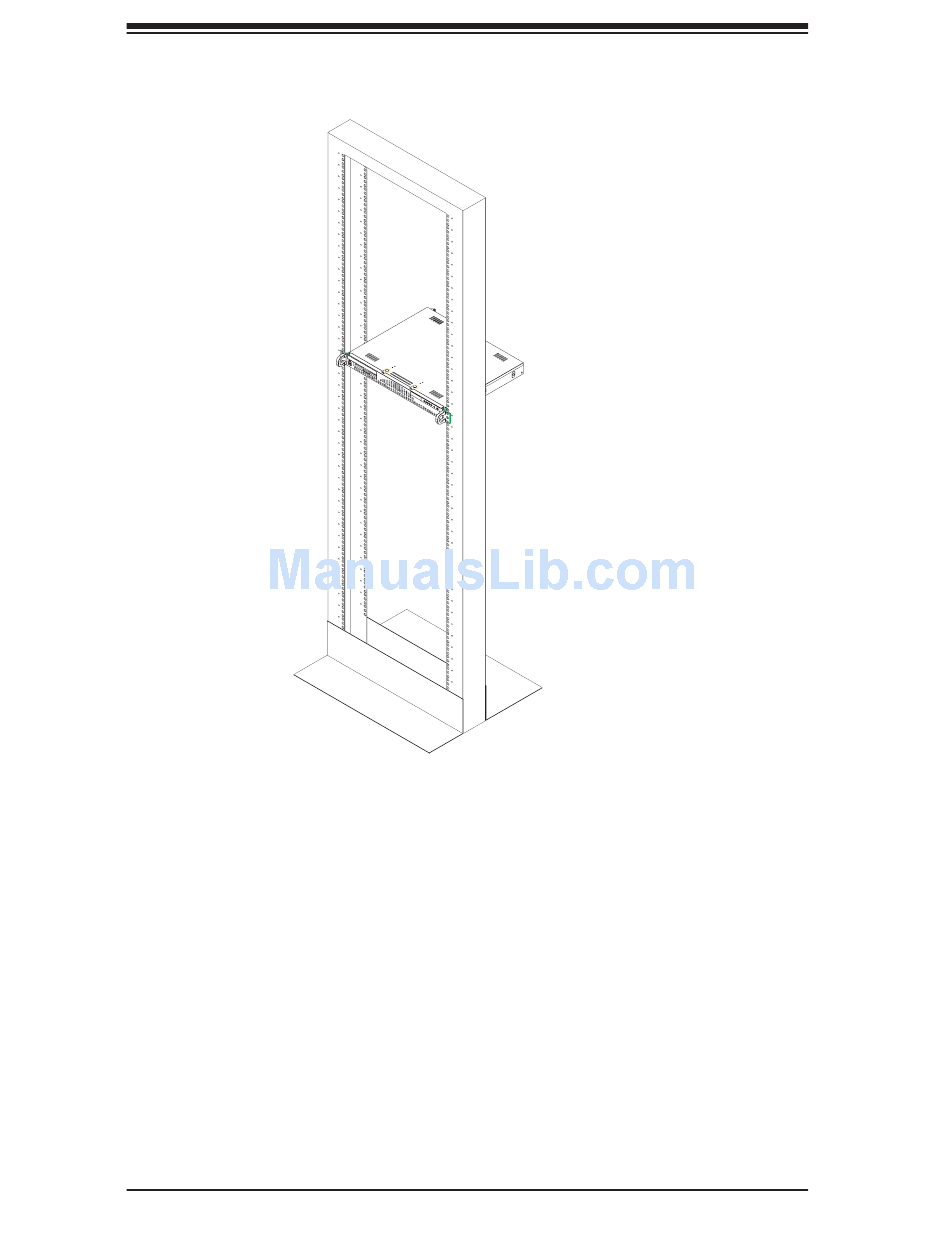

Figure 2-5. Installing the Server into a Telco Rack: Basic
2-5

Checking the Motherboard Setup

After you install the 1010S-MR in the rack, you will need to open the unit to make
sure the motherboard is properly installed and all the connections have been
made.
1. Accessing the inside of the system (Figure 2-7)
First, grasp the two handles on either side and pull the unit straight out until it
locks (you will hear a "click"). Then remove the screws from the lips on either
side of the chassis top cover (see Figure 2-5 for location). Next, depress the
two buttons on the top of the chassis to release the top cover while pushing
2-8
