Chapter 2: Server Installation

Installing the Chassis Rails

The two rail sections must be detached from each other prior to installation. Do this
by depressing the locking tab on the inner rail to release it from its locked position
then pull the two rails completely apart. Do this for both the left and right side rack
rail assemblies.
Position the fixed chassis rail sections you just removed along the side of
the chassis making sure the three screw holes line up. Note that these two rails
are left/right specifi c. Screw the rail securely to the side of the chassis (see Figure
2-2). Repeat this procedure for the other rail on the other side of the chassis. You
will also need to attach the rail brackets when installing into a telco rack.
Locking Tabs: Both chassis rails have a locking tab, which serves two functions.
The fi rst is to lock the server into place when installed and pushed fully into the
rack, which is its normal position. Secondly, these tabs also lock the server in place
when fully extended from the rack. This prevents the server from coming completely
out of the rack when you pull it out for servicing.

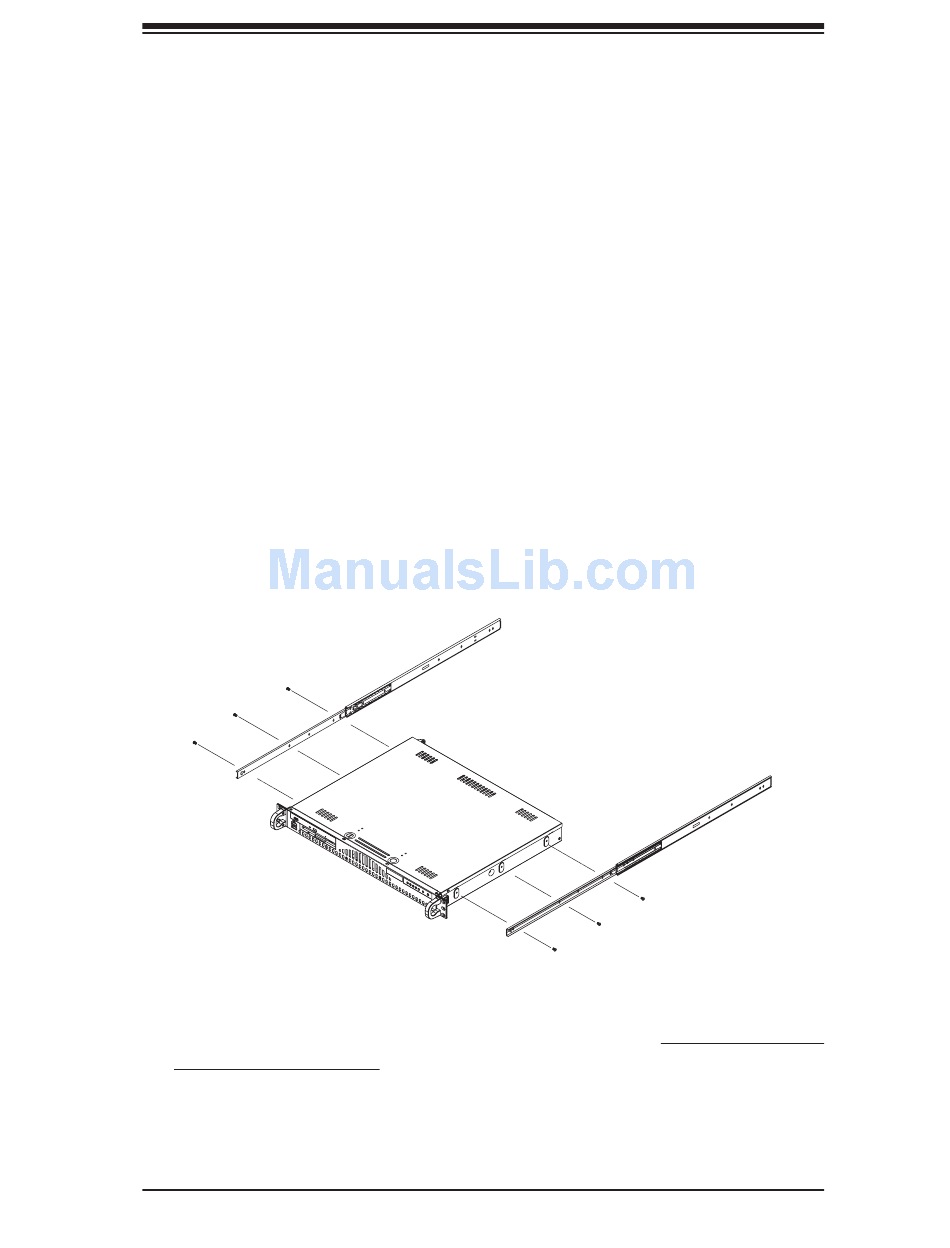

Figure 2-2. Installing Chassis Rails

Installing the Rack Rails

Determine where you want to place the 1010S-MR in the rack (see Rack and Server
Precautions in Section 2-3). Position the fi xed rack rail/sliding rail guide assemblies
at the desired location in the rack, keeping the sliding rail guide facing the inside
of the rack. Screw the assembly securely to the rack using the brackets provided.
Attach the other assembly to the other side of the rack, making sure that both are
at the exact same height and with the rail guides facing inward.
2-5
