The H8SSL-i supports single or dual-channel, unbuffered ECC DDR400/333
SDRAM. Both interleaved and non-interleaved memory are supported, so you
may populate any number of DIMM slots. You should use low-profi le memory in
the 1U server chassis.
Populating two adjacent slots at a time with memory modules of the same size and
type will result in interleaved (128-bit) memory, which is faster than non-interleaved
(64-bit) memory.
Maximum memory: 4 GB of unbuffered ECC DDR400/333.

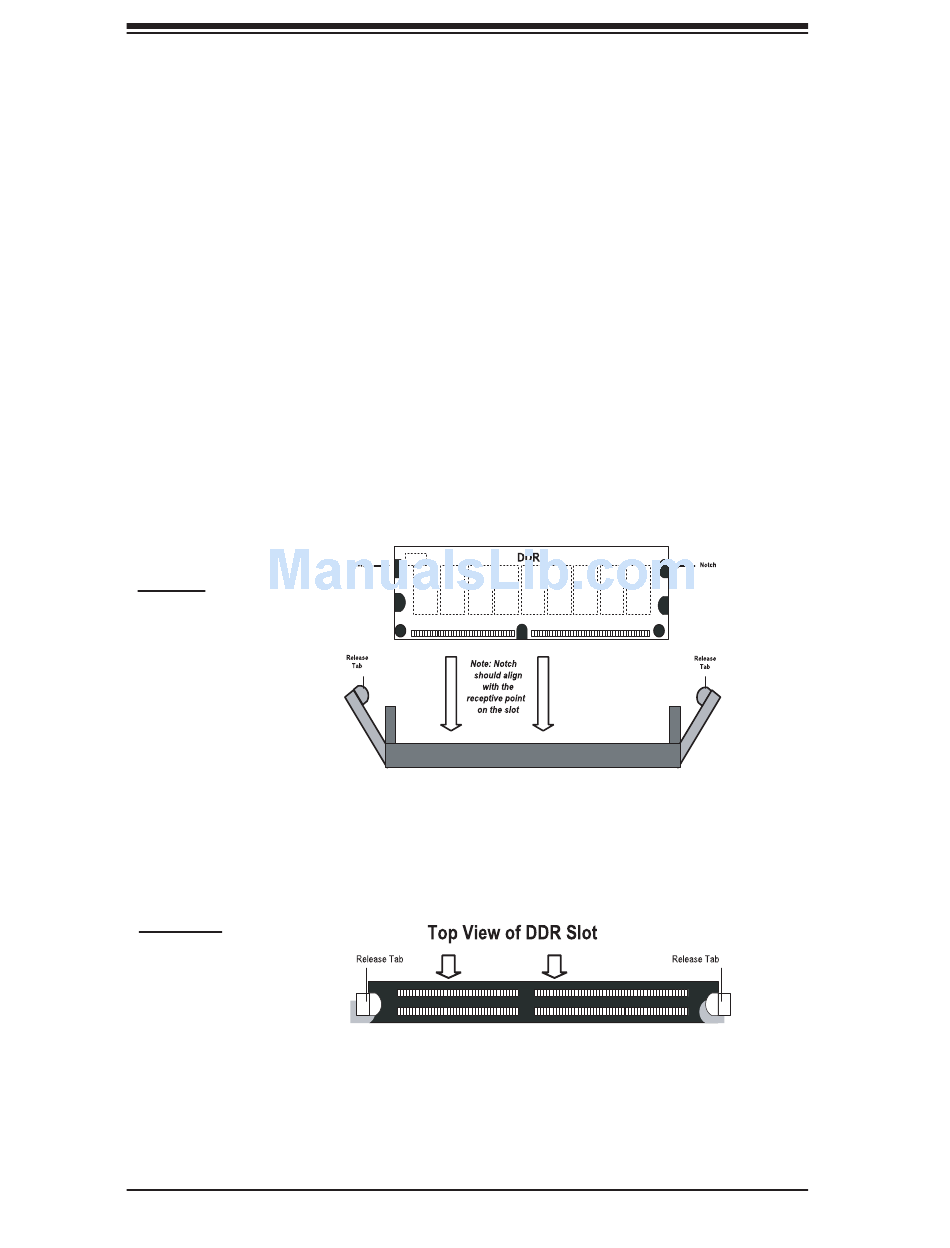

Figure 5-4. Side and Top Views of DDR Installation
To Install:
Insert module vertically
and press down until it
snaps into place. The
release tabs should
close - if they do not
you should close them
yourself.
To Remove:
Use your thumbs to
gently push each re-
lease tab outward to
release the DIMM from
the slot.
Note the notch in the slot and on the bottom of the DIMM.
These prevent the DIMM from being installed incorrectly.
