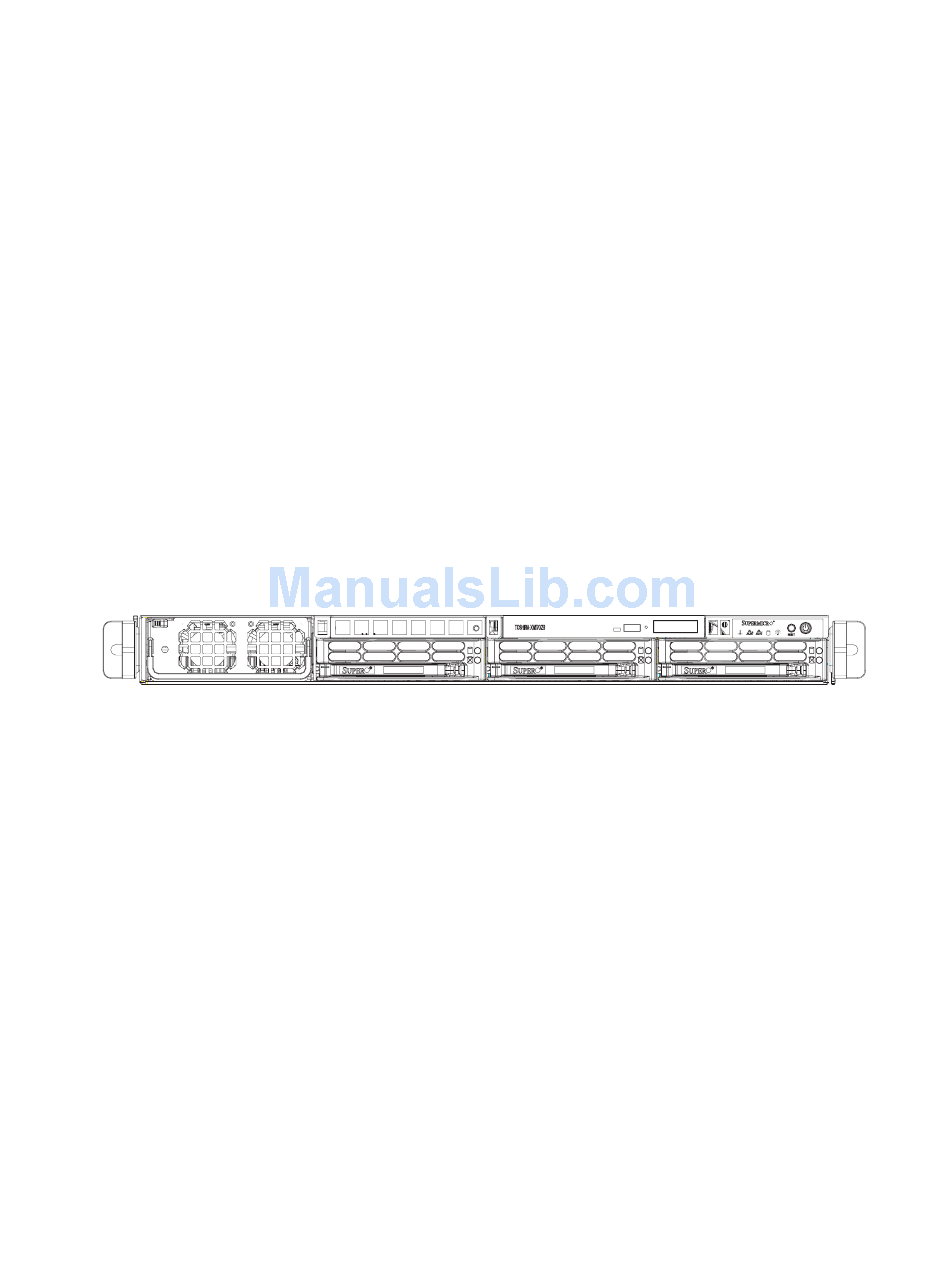

AS1041M-T2
AS1041M-82
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-1041M-82 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro AS-1041M-82

Summary of Contents for Supermicro AS-1041M-82

  • Page 1 AS1041M-T2 AS1041M-82 USER’S MANUAL...

  • Page 2: Manual Revision

    Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

  • Page 3: About This Manual

    AMD Socket F type processors and up to 32 GB of registered ECC DDR2-667/533 or 64 GB of registered ECC DDR2-400 SDRAM. Please refer to our website for details on supported processors (www. supermicro.com/aplus). Manual Organization Chapter 1: Introduction The fi...
  • Page 4 AS1041M-T2/1041M-82 User's Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the AS1041M-T2/1041M-82. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the H8QME-2+/H8QM8-2+ serverboard, including the locations and functions of connections, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Manual Organization ... iii Chapter 1: Introduction Overview ... 1-1 Serverboard Features ... 1-2 Server Chassis Features ... 1-3 Contacting Supermicro ... 1-6 Chapter 2: Server Installation Overview ... 2-1 Unpacking the System ... 2-1 Preparing for Setup ... 2-1 Choosing a Setup Location ...
  • Page 7 Chapter 4: System Safety Electrical Safety Precautions ... 4-1 General Safety Precautions ... 4-2 ESD Precautions ... 4-3 Operating Precautions ... 4-4 Chapter 5: Advanced Serverboard Setup Handling the Serverboard ... 5-1 Processor and Heatsink Installation ... 5-2 Connecting Cables ... 5-5 Connecting Data Cables ...
  • Page 8 AS1041M-T2/1041M-82 User's Manual Overheat LED ... 5-16 Wake-On-LAN ... 5-17 Wake-On-Ring ... 5-17 SMB Power Header ... 5-17 3rd Power Supply Alarm Reset Header ... 5-17 JLAN 1/2 (Ethernet Ports) ... 5-18 Compact Flash Power Headers ... 5-18 3rd Power Supply Fail Detect Header ... 5-18 SGPIO ...
  • Page 9 Chapter 7: BIOS Introduction ... 7-1 Main Menu ... 7-2 Advanced Settings Menu ... 7-2 Boot Menu ... 7-16 Security Menu ... 7-17 Exit Menu ... 7-18 Appendices: Appendix A: BIOS Error Beep Codes ... A-1 Appendix B: BIOS POST Checkpoint Codes ... B-1 Appendix C: System Specifi...
  • Page 10 AS1041M-T2/1041M-82 User's Manual Notes...

  • Page 11: Chapter 1: Introduction

    H8QM8-2+ quad processor serverboard. Please refer to our web site for information on operating systems that have been certifi ed for use with the 1041M-T2/1041M-82 (www.supermicro.com/aplus). In addition to the serverboard and chassis, various hardware components have been included with the 1041M-T2/1041M-82, as listed below:...

  • Page 12: Serverboard Features

    AS1041M-T2/1041M-82 User's Manual Serverboard Features At the heart of the 1041M-T2/1041M-82 lies the H8QME-2+/H8QM8-2+, a quad processor serverboard based on the nVidia MCP55 Pro and AMD-8132 chipsets. Below are the main features of the H8QME-2+/H8QM8-2+ (see Figure 1-1 for a block diagram of the chipset).

  • Page 13: Server Chassis Features

    Ethernet ports. ATI Graphics Controller The H8QME-2+/H8QM8-2+ features an integrated ATI video controller based on the ES1000 graphics chip. The ES1000 was designed specifi cally for servers, featuring low power consumption, high reliability and superior longevity. Other Features...

  • Page 14: Pci Expansion Slots

    AS1041M-T2/1041M-82 User's Manual PCI Expansion Slots One standard size PCI-E add-on card may be used with the SC818TQ+-1000/ SC818S+-1000 chassis. See section 5-6 for details. Front Control Panel The SC818TQ+-1000/SC818S+-1000's control panel provides you with system monitoring and control. LEDs indicate system power, HDD activity, network activity (2) and overheat/fan failure.

  • Page 15: System Block Diagram

    Figure 1-1. nVidia MCP55 Pro/AMD-8132 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. DDR2-667/533/400 AMD Socket F Type DIMMC 2A Processor (CPU3) DIMMC 2B DIMMC 1A DIMMC 1B AMD Socket F Type DIMMD 1B Processor (CPU2) DIMMD 1A...

  • Page 16: Contacting Supermicro

    AS1041M-T2/1041M-82 User's Manual Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V.

  • Page 17: Chapter 2: Server Installation

    Server Installation 2-1 Overview This chapter provides a quick setup checklist to get your 1041M-T2/1041M-82 up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled.

  • Page 18: Choosing A Setup Location

    AS1041M-T2/1041M-82 User's Manual Choosing a Setup Location - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for suffi...

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 20: Installing The System Into A Rack

    AS1041M-T2/1041M-82 User's Manual Installing the System into a Rack This section provides information on installing the 1041M-T2/1041M-82 into a rack unit with the rack rails provided. If the system has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 21: Installing The Outer Rails

    Chapter 2: Server Installation Installing the Outer Rails Begin by measuring the distance from the front rail to the rear rail of the rack. Attach a short bracket to the front side of the right outer rail and a long bracket to the rear side of the right outer rail.

  • Page 22: Installing The Server Into The Rack

    AS1041M-T2/1041M-82 User's Manual Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chas- sis rails with the front of the rack rails.

  • Page 23: Checking The Serverboard Setup

    Chapter 2: Server Installation Checking the Serverboard Setup After you install the 1041M-T2/1041M-82 in the rack, you will need to open the top cover to make sure the serverboard is properly installed and all the connections have been made. 1. Accessing the inside of the System (see Figure 2-4) First, release the retention screws that secure the system to the rack.
  • Page 24 AS1041M-T2/1041M-82 User's Manual Figure 2-4. Accessing the Inside of the System...

  • Page 25: Checking The Drive Bay Setup

    Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SATA/SCSI drives and SATA/SCSI backplane have been properly installed and all connections have been made. 1. Accessing the drive bays All drives are accessable from the front of the server. For servicing the DVD- ROM and fl...
  • Page 26 AS1041M-T2/1041M-82 User's Manual Notes 2-10...

  • Page 27: Chapter 3: System Interface

    System Interface Overview There are several LEDs on the control panel as well as others on the SATA/SCSI drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specifi c components. There are also two but- tons on the chassis control panel and an on/off switch on the power supply.

  • Page 28: Control Panel Leds

    AS1041M-T2/1041M-82 User's Manual Control Panel LEDs The control panel located on the front of the SC818TQ+-1000/SC818S+-1000 chassis has fi ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 29: Power

    Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Drive Carrier LEDs SATA Drives (1041M-T2) Green: Each Serial ATA drive carrier has a green LED. When illuminated, this green LED (on the front of the SATA drive carrier) indicates drive activity.
  • Page 30 AS1041M-T2/1041M-82 User's Manual Notes...

  • Page 31: Chapter 4: System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the 1041M-T2/1041M-82 from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 32: General Safety Precautions

    AS1041M-T2/1041M-82 User's Manual Serverboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarities (see Figure 4-1). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer.

  • Page 33: Esd Precautions

    ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic com ponents and printed circuit boards. The following measures are generally suffi cient to neutralize this difference before contact is made to protect your equipment from ESD: Use a grounded wrist strap designed to prevent static discharge.

  • Page 34: Operating Precautions

    AS1041M-T2/1041M-82 User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 1041M-T2/1041M-82 is operating to ensure proper cooling. Out of warranty damage to the 1041M-T2/1041M-82 system can occur if this practice is not strictly followed.

  • Page 35: Chapter 5: Advanced Serverboard Setup

    Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the H8QME-2+/H8QM8-2+ serverboard, connect the data and power cables and in- stall add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter. Remember to close the chassis completely when you have fi...

  • Page 36: Processor And Heatsink Installation

    AS1041M-T2/1041M-82 User's Manual Processor and Heatsink Installation Exercise extreme caution when handling and installing the proces- sor. Always connect the power cord last and always remove it be- fore adding, removing or changing any hardware components. CPU Backplates Two CPU backplates (BKT-0011L) have been preinstalled to the serverboard to prevent the CPU area of the serverboard from bending and to provide a base for attaching the heatsink retention modules.
  • Page 37 Chapter 5: Advanced Serverboard Setup 3. Align pin 1 of the CPU with pin 1 of the socket. Once aligned, carefully place the CPU into the socket. Do not drop the CPU on the socket, move the CPU horizontally or vertically or rub the CPU against the socket or against any pins of the socket, which may damage the CPU and/or the socket.

  • Page 38: Installing The Heatsink Retention Modules

    AS1041M-T2/1041M-82 User's Manual Installing the Heatsink Retention Modules Two heatsink retention modules (BKT-0012L) and four screws are included in the retail box. Once installed, these are used to help attach the heatsinks to the CPUs. To install, align the module with the standoffs of the preinstalled CPU backplate and with the four feet on the module contacting the serverboard.

  • Page 39: Connecting Cables

    Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed in preconfi...

  • Page 40: Connecting The Control Panel

    AS1041M-T2/1041M-82 User's Manual Connecting the Control Panel JF1 contains header pins for various front control panel connectors. See Figure 5-1 for the pin locations of the various front control panel buttons and LED indi- cators. Please note that even and odd numbered pins are on opposite sides of each header.

  • Page 41: I/O Ports

    Figure 5-2 below for the colors and locations of the various I/O ports. Figure 5-2. Rear Panel I/O Ports Installing Memory Note: Check the Supermicro web site for recommended memory modules. Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.
  • Page 42 AS1041M-T2/1041M-82 User's Manual Support The H8QM8-2+/H8QME-2+ supports single or dual-channel, registered ECC DDR2- 667/533/400 SDRAM. Both interleaved and non-interleaved memory are supported, so you may populate any number of DIMM slots (see note on previous page). Populating two adjacent slots at a time with memory modules of the same size and type will result in inter- leaved (128-bit) memory, which is faster than non-interleaved (64-bit) memory.

  • Page 43: Adding Pci Cards

    Chapter 5: Advanced Serverboard Setup Figure 5-3b. Top View of DDR Slot Adding PCI Cards 1. PCI Expansion Slots The H8QM8-2+/H8QME-2+ has a single x16 PCI-Express slot. The SC818TQ+- 1000/SC818S+-1000 chassis can support the use of one standard size PCI-Express add-on card (with pre-installed riser card).

  • Page 44: H8Qm8-2+/H8Qme-2+ Layout

    AS1041M-T2/1041M-82 User's Manual Serverboard Details Figure 5-4. SUPER H8QM8-2+/H8QME-2+ Layout* UPER H8QM8-2+ CPU 3 FAN7/CPU3 DIMMC 2A Kybd/ DIMMC 2B Mouse DIMMC 1A USB0/1 DIMMC 1B DIMMD 1B COM1 DIMMD 1A DIMMD 2B DIMMD 2A JLAN1 CPU 4 JLAN2 FAN8/CPU4 FAN9 Slot #6: x16 PCI-Express JPL1...

  • Page 45: H8Qm8-2+/H8Qme-2+ Quick Reference

    H8QM8-2+/H8QME-2+ Quick Reference Jumpers Description JBT1 CMOS Clear Compact Flash Card Master/Slave JPA1* SCSI Enable/Disable JPA2/JPA3* SCSI Channel A/B Term. JPG1 VGA Enable/Disable JPL1 JLAN Enable/Disable Watch Dog Connectors Description COM1 COM1 Serial Port FAN 1-9 CPU/Chassis Fan Headers Floppy Floppy Disk Drive Connector HT Connector Hyper Tranport Slot...

  • Page 46: Connector Defi Nitions

    AS1041M-T2/1041M-82 User's Manual Connector Defi nitions ATX Power Connector The primary ATX power supply con- nector (J1B1) meets the SSI (Super- set ATX) 24-pin specifi cation. Refer to the table on the right for the pin defi ni- tions of the ATX 24-pin power connec- tor.

  • Page 47: Power Led

    Power LED The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table on the right for pin defi nitions. HDD LED The HDD (IDE Hard Disk Drive) LED connection is located on pins 13 and 14 of JF1.

  • Page 48: Power Fail Led

    AS1041M-T2/1041M-82 User's Manual Power Fail LED The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table on the right for pin defi ni- tions. This feature is only available for systems with redundant power supplies.

  • Page 49: Usb Headers

    USB Headers Tw o a d d i t i o n a l U S B 2 . 0 h e a d - ers (USB2/3) are included on the serverboard. These may be con- nected to provide front side access. A USB cable (not included) is needed for the connection.

  • Page 50: Power Led/Keylock/Speaker

    AS1041M-T2/1041M-82 User's Manual Power LED/Keylock/Speaker On the JF2 header, pins 2, 4 and 6 are for the power LED, pins 8 and 10 are for the keylock and pins 1, 3, 5 and 7 are for the speaker (there is no pin 9).

  • Page 51: Wake-On-Lan

    Wake-On-LAN The Wake-On-LAN header is desig- nated JWOL. See the table on the right for pin definitions. You must have a LAN card with a Wake-On-LAN connector and cable to use the Wake- On-LAN feature. Wake-On-Ring The Wake-On-Ring header is desig- nated JWOR.

  • Page 52: Jlan1/2 (Ethernet Ports)

    Defi nition P/S 1 Fail Signal P/S 2 Fail Signal P/S 3 Fail Signal Alarm Reset Note: This feature is only available when using redundant Supermicro power supplies. SGPIO Header Pin Defi nitions (SGPIO1, SGPIO2) Pin# Defi nition Pin #...

  • Page 53: Jumper Settings

    Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identifi ed with a square solder pad on the printed circuit board.

  • Page 54: Vga Enable/Disable

    AS1041M-T2/1041M-82 User's Manual VGA Enable/Disable JPG1 allows you to enable or disable the VGA port. The default position is on pins 1 and 2 to enable VGA. See the table on the right for jumper set- tings. JLAN Enable/Disable Change the setting of jumper JPL1 to enable or disable the JLAN1 and JLAN2 Gb Ethernet ports.

  • Page 55: Compact Flash Master/Slave

    Compact Flash Master/Slave The JP1 jumper allows you to assign ei- ther master or slave status to a compact fl ash card installed in the IDE#1 slot. You will need to connect compact fl ash power to JWF1 to use. See the table on the right for jumper settings.

  • Page 56: 5-10 Onboard Indicators

    AS1041M-T2/1041M-82 User's Manual 5-10 Onboard Indicators JLAN1/JLAN2 LEDs The Ethernet ports (located beside the VGA port) have two LEDs. On each Gb LAN port, the right LED indicates activity while the left LED may be green, amber or off to indicate the speed of the connection.

  • Page 57: 5-11 Floppy, Ide, Scsi And Sata Drive Connections

    5-11 Floppy, IDE, SCSI and SATA Drive Connections Use the following information to connect the fl oppy and hard disk drive cables. The fl oppy disk drive cable has seven twisted wires. A red mark on a wire typically designates the location of pin 1. A single fl...

  • Page 58: Ide Connector

    AS1041M-T2/1041M-82 User's Manual IDE Connector There are no jumpers to con- fi gure the onboard IDE#1 con- nector. See the table on the right for pin defi nitions. SATA Ports There are no jumpers to con- fi gure the SATA ports, which are designated N-SATA0 ~ N- SATA5.

  • Page 59: Scsi Connectors

    SCSI Connectors (H8QM8-2+ only) Refer to the table at right for pin defi nitions for the Ultra320 SCSI connectors located at JA1 and JA2. Chapter 5: Advanced Serverboard Setup Ultra320 SCSI Drive Connectors Pin Defi nitions (JA1/JA2) Pin# Defi nition Pin # Defi...

  • Page 60: 5-12 Enabling Sata Raid

    AS1041M-T2/1041M-82 User's Manual 5-12 Enabling SATA RAID Serial ATA (SATA) Serial ATA (SATA) is a physical storage interface that employs a single cable with a minimum of four wires to create a point-to-point connection between devices. This connection is a serial link. The serial cables used in SATA are thinner than the traditional cables used in Parallel ATA (PATA) and can extend up to one meter in length, compared to only 40 cm for PATA cables.

  • Page 61: Using The Nvidia Raid Utility

    2. Use the arrow keys to move to the "Advanced" menu, then scroll down to "nVidia RAID Function" and press the <Enter> key. Use this setting to enable the RAID function. After enabling RAID, use the next setting to enable all drives you wish to include in the RAID array.

  • Page 62: 5-13 Installing Software Drivers

    5-13 Installing Software Drivers After all the hardware and operating system have been installed, you need to install certain drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your serverboard. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-4 should appear.

  • Page 63: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC818TQ+-1000/SC818S+-1000 chassis. For component installa- tion, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the next step. Tools Required The only tool you will need to install components and perform maintenance is a Philips screwdriver.

  • Page 64: Control Panel

    1041M-T2/1041M-82 User's Manual Figure 6-1. Chassis: Front and Rear Views Slim DVD-ROM Drive Power Supply Module USB Ports Mouse/Keyboard COM1 Port Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system status indications. These wires have been bundled together as a ribbon cable to simplify the connec- tion.

  • Page 65: System Fans

    Replace the failed fan with an identical 40-mm, 12 volt fan (available from Supermicro: p/n FAN-0086L). Push the new fan into the vacant space in the hous- ing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans.

  • Page 66: Drive Bay Installation/Removal

    1041M-T2/1041M-82 User's Manual Figure 6-2. System Cooling Fans Drive Bay Installation/Removal Removing the Front Bezel If your system has a front bezel (optional) attached to the chassis, you must fi rst remove it to gain access to the drive bays. To remove the bezel, fi rst unlock the front of the chassis then press the release knob (see Figure 6-3).

  • Page 67: Accessing The Drive Bays

    Figure 6-3. Removing the Front Bezel Accessing the Drive Bays SATA/SCSI Drives: Because of their hotswap capability, you do not need to access the inside of the chassis or power down the system to install or replace SATA or SCSI drives. Proceed to the next section for instructions. DVD-ROM/Floppy Disk Drives: For installing/removing a DVD-ROM or fl...

  • Page 68: Sata/Scsi Drive Installation

    1041M-T2/1041M-82 User's Manual SATA/SCSI Drive Installation 1. Mounting a SATA/SCSI drive in a drive carrier The SATA/SCSI drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airfl ow for the drive bays.
  • Page 69 Chapter 6: Advanced Chassis Setup 2. Installing/removing hot-swap SATA/SCSI drives The SATA/SCSI drive carriers are all easily accessible at the front of the chassis. These hard drives are hot-pluggable, meaning they can be removed and installed without powering down the system. To remove a carrier, push the release button located beside the drive LEDs.

  • Page 70: Dvd-Rom And Floppy Drive Installation

    1041M-T2/1041M-82 User's Manual DVD-ROM and Floppy Drive Installation The top cover of the chassis must be opened to gain full access to the DVD-ROM and fl oppy drive bays. The 1041M-T2/1041M-82 accomodates only slim-line DVD- ROM drives. Side mounting brackets are needed to mount a slim-line DVD-ROM drive in the 1041M-T2/1041M-82 server.

  • Page 71: Power Supply

    If the power supply unit fails, the system will shut down and you will need to replace the unit. Replacement units can be ordered directly from Supermicro (see contact information in the Preface). As there is only one power supply unit in the 1041M- T2/1041M-82, power must be completely removed from the server before removing and replacing the power supply unit for whatever reason.
  • Page 72 1041M-T2/1041M-82 User's Manual Figure 6-6. Removing/Replacing the Power Supply 6-10...

  • Page 73: Chapter 7: Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMIBIOS™ Setup utility for the H8QM8-2+/H8QME-2+. The AMI ROM BIOS is stored in a fl ash chip and can be easily upgraded using a fl oppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 74: Main Menu

    AS1041M-T2/1041M-82 User's Manual Main Menu When you fi rst enter AMI BIOS Setup Utility, you will see the Main Menu screen. You can always return to the Main Menu by selecting the Main tab on the top of the screen with the arrow keys. The Main Menu screen provides you with a system overview, which includes the version, built date and ID of the AMIBIOS, the type, speed and number of the processors in the system and the amount of memory installed in the system.
  • Page 75 Boot up Num-Lock Set this value to allow the Number Lock setting to be modifi ed during boot up. The options are On and Off. PS/2 Mouse Support Set this value to modify support for a PS/2 mouse. The options are Auto, En- abled and Disabled.

  • Page 76: Cpu Configuration

    AS1041M-T2/1041M-82 User's Manual Restore on AC Power Loss This setting allows you to choose how the system will react when power returns after an unexpected loss of power. The options are Power Off, Power On and Last State. Watch Dog Timer Select This setting is used to Enable or Disable the Watch Dog Timer function.
  • Page 77 Floppy/IDE/SATA Confi guration Floppy A Move the cursor to these fi elds via up and down <arrow> keys to select the fl oppy type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44 MB 3½”, and 2.88 MB 3½".
  • Page 78 AS1041M-T2/1041M-82 User's Manual Primary IDE Master/Slave Highlight one of the items above and press <Enter> to access the submenu for that item. Type Select the type of device connected to the system. The options are Not Installed, Auto, CDROM and ARMD. LBA/Large Mode LBA (Logical Block Addressing) is a method of addressing data on a disk drive.
  • Page 79 DMA Mode Selects the DAM Mode. MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3, UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA, UDMA=UltraDMA.) S.M.A.R.T. Self-Monitoring Analysis and Reporting Technology (SMART) can help predict impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk drive support.
  • Page 80 AS1041M-T2/1041M-82 User's Manual PIO Mode PIO (Programmable I/O) mode programs timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI BIOS to auto detect the PIO mode.

  • Page 81: Pcipnp Configuration

    Chapter 7: BIOS ATA(PI) 80Pin Cable Detection This setting allows AMI BIOS to auto-detect the 80-Pin ATA(PI) cable. The options are Host, Device and Host & Device. PCI/PnP Confi guration Clear NVRAM Select Yes to clear NVRAM during boot-up. The options are Yes and No. Plug &...

  • Page 82: Super Io Configuration

    AS1041M-T2/1041M-82 User's Manual IRQ3/IRQ4/IRQ5/IRQ7/IRQ9/IRQ10/IRQ11/IRQ14/IRQ15 This feature specifi es the availability of an IRQ to be used by a PCI/PnP device. Select Reserved for the IRQ to be used by a Legacy ISA device. The options are Available and Reserved. DMA Channel 0/Channel 1/Channel 3/Channel 5/Channel 6/Channel Select Available to indicate that a specifi...
  • Page 83 Parallel Port Address This option specifi es the I/O address used by the parallel port. Select Disabled to prevent the parallel port from accessing any system resources. When the value of this option is set to Disabled, the printer port becomes unavailable. Select 378 to allow the parallel port to use 378 as its I/O port address.
  • Page 84 AS1041M-T2/1041M-82 User's Manual Mem Clk Tristate C3/ALTVID Use this setting to Enable or Disable memory clock tristate during C3 and ALT VID. CS Sparing Enable Use this setting to Enable or Disable the CS Sparing function. Memory Hole Remapping When "Enabled", this feature enables hardware memory remapping around the memory hole.

  • Page 85: South Bridge Configuration

    Chapter 7: BIOS Power Down Control Allows DIMMs to enter power down mode by deasserting the clock enable signal when DIMMs are not in use. Options are Auto and Disabled. Alternate VID Specifi es and alternate VID while in low power states. Options are Auto and various voltages between .8V and 1.115V.

  • Page 86: Event Log Configuration

    AS1041M-T2/1041M-82 User's Manual Event Log Confi guration View Event Log Highlight this item and press <Enter> to view the contents of the event log. Mark All Events as Read Highlight this item and press <Enter> to mark all events as read. Clear Event Log Select Yes and press <Enter>...

  • Page 87: System Health Monitor

    VT-UTF8 Combo Key Support Allows you to Enable or Disable VT-UTF8 combination key support for ANSI/ VT100 terminals. Sredir Memory Display Delay Use this setting to set the delay in seconds to display memory information. Op- tions are No Delay, 1 sec, 2 secs and 4 secs. System Health Monitor CPU Overheat Temperature Use the "+"...

  • Page 88: Boot Menu

    AS1041M-T2/1041M-82 User's Manual Boot Menu This feature allows the user to confi gure the following items: Boot Device Priority This feature allows the user to prioritize the boot sequence from the available de- vices. The devices to set are: · 1st Boot Device ·...

  • Page 89: Security Menu

    Chapter 7: BIOS Security Menu AMI BIOS provides a Supervisor and a User password. If you use both passwords, the Supervisor password must be set fi rst. Change Supervisor Password Select this option and press <Enter> to access the sub menu, and then type in the password.

  • Page 90: Exit Menu

    AS1041M-T2/1041M-82 User's Manual Exit Menu Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Exit When you have completed the system confi guration changes, select this option to leave BIOS Setup and reboot the computer, so the new system confi guration parameters can take effect.

  • Page 91: Appendix A: Bios Error Beep Codes

    Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen. Fatal errors are those which will not allow the system to continue the boot-up pro- cedure.
  • Page 92 AS1041M-T2/1041M-82 User's Manual Notes...

  • Page 93: Appendix B: Bios Post Checkpoint Codes

    BIOS POST Checkpoint Codes When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, diagnostic equipment can be attached to the computer to read I/O port 0080h. Uncompressed Initialization Codes The uncompressed initialization checkpoint codes are listed in order of execution: Checkpoint...

  • Page 94: Bootblock Recovery Codes

    AS1041M-T2/1041M-82 User's Manual Bootblock Recovery Codes The bootblock recovery checkpoint codes are listed in order of execution: Checkpoint Code Description The onboard fl oppy controller if available is initialized. Next, beginning the base 512 KB memory test. Initializing the interrupt vector table next. Initializing the DMA and Interrupt controllers next.
  • Page 95 Uncompressed Initialization Codes The following runtime checkpoint codes are listed in order of execution. These codes are uncompressed in F0000h shadow RAM. Checkpoint Code Description The NMI is disabled. Next, checking for a soft reset or a power on condition. The BIOS stack has been built.
  • Page 96 AS1041M-T2/1041M-82 User's Manual Checkpoint Code Description Interrupt vector initialization is done. Clearing the password if the POST DIAG switch is on. Any initialization before setting video mode will be done next. Initialization before setting the video mode is complete. Confi guring the mono- chrome mode and color mode settings next.
  • Page 97 Checkpoint Code Description The memory below 1 MB has been cleared via a soft reset. Clearing the memory above 1 MB next. The memory above 1 MB has been cleared via a soft reset. Saving the memory size next. Going to checkpoint 52h next. The memory test started, but not as the result of a soft reset.
  • Page 98 AS1041M-T2/1041M-82 User's Manual Checkpoint Code Description The password was checked. Performing any required programming before WIN- BIOS Setup next. The programming before WINBIOS Setup has completed. Uncompressing the WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility next.
  • Page 99 Checkpoint Code Description Returned from adaptor ROM at E000h control. Performing any initialization required after the E000 option ROM had control next. Initialization after E000 option ROM control has completed. Displaying the system confi guration next. Uncompressing the DMI data and executing DMI POST initialization next. The system confi...
  • Page 100 AS1041M-T2/1041M-82 User's Manual Notes...

  • Page 101: Appendix C: System Specifi Cations

    Appendix C: System Specifi cations Appendix C System Specifi cations Processors Dual or quad AMD Socket F type processors. Note: Please refer to our web site for a complete listing of supported processors. Chipset nVidia MCP55 Pro / AMD-8132 BIOS 8 Mb AMIBIOS®...
  • Page 102 AS1041M-T2/1041M-82 User's Manual Expansion Slots Supports the use of one standard size x16 PCI-Express add-on card Serverboard 1041M-T2: H8QME-2+ (extended ATX form factor) 1041M-82: H8QM8-2+ (extended ATX form factor) Dimensions: 16" x 13.05" (406 x 332 mm) Chassis 1041M-T2: SC818TQ+-1000 (1U rackmount) 1041M-82: SC818S+-1000 (1U rackmount) Dimensions (both): (WxHxD) 17.2 x 1.7 x 27.75 in.

  • Page 103: Regulatory Compliance

    Appendix C: System Specifi cations Regulatory Compliance Electromagnetic Emissions: FCC Class B, EN 55022 Class B, EN 61000-3-2/-3-3, CISPR 22 Class B Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: EN 60950/IEC 60950-Compliant UL Listed (USA)
  • Page 104 AS1041M-T2/1041M-82 User's Manual Notes...
