AS1010S-MR

USER'S MANUAL

1.0a

Table of Contents

Summary of Contents for Supermicro AS-1010S-MR

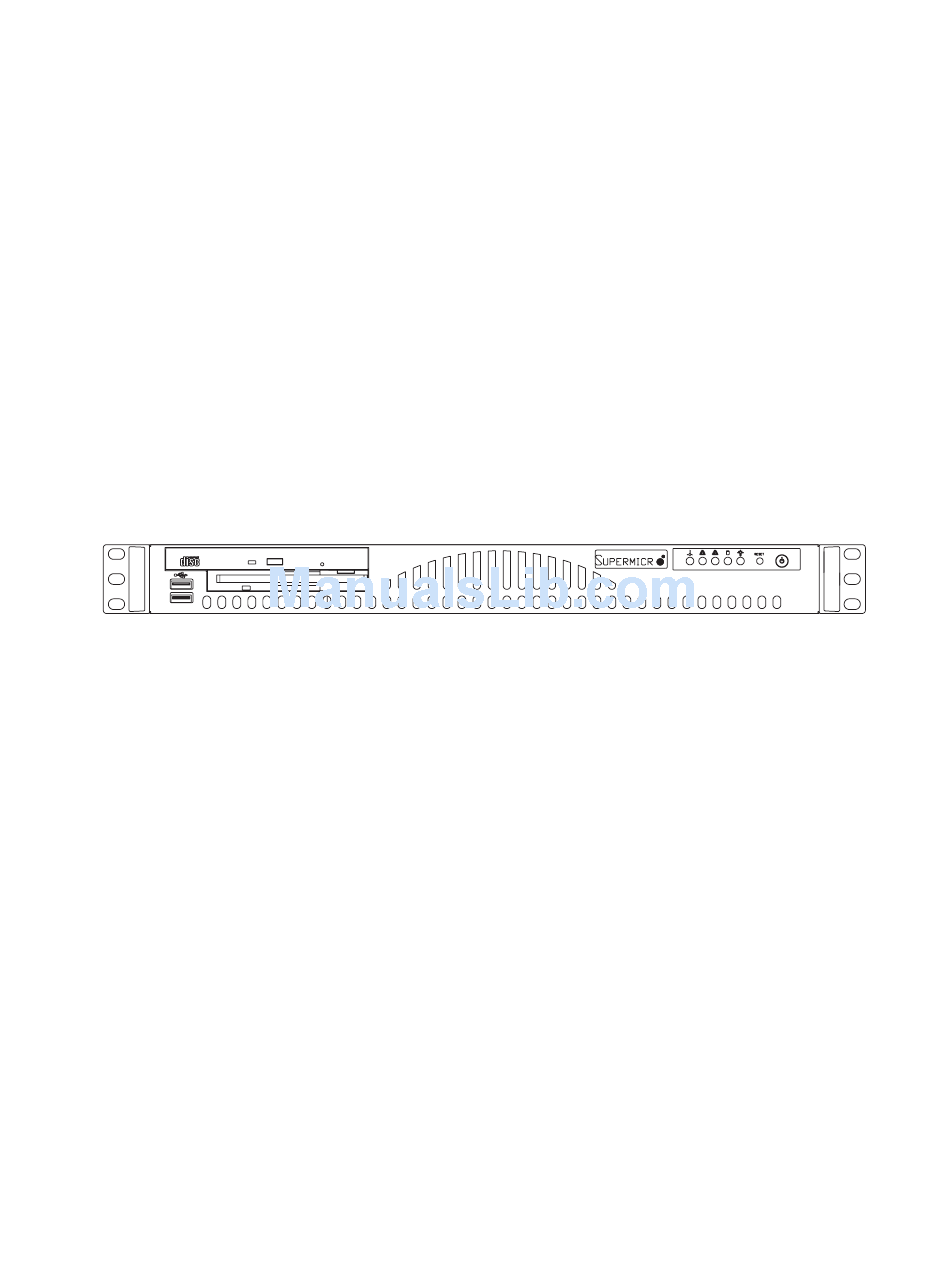

Page 1 AS1010S-MR USER’S MANUAL 1.0a...
Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
Page 3: Preface
Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the AS1010S-MR server. Instal- lation and maintainance should be performed by experienced technicians only. The AS1010S-MR is a high-end server based on the SC512C-260 1U rackmount chassis and the H8SSL-i, a single processor motherboard that supports AMD Op- teron processors and up to 4 GB of unbuffered ECC DDR400/333 SDRAM.
Page 4 AS1010S-MR User's Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the 1010S-MR. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the H8SSL-i motherboard, including the locations and functions of connections, headers and jumpers.
Page 5 Preface Notes...
Page 6: Table Of Contents
AS1010S-MR User's Manual Table of Contents Preface About This Manual ... iii Manual Organization ... iii Chapter 1: Introduction Overview ... 1-1 Motherboard Features ... 1-2 Server Chassis Features ... 1-5 Chapter 2: Server Installation Overview ... 2-1 Unpacking the System ... 2-1 Preparing for Setup ...
Page 7 Chapter 5: Advanced Motherboard Setup Handling the Motherboard ... 5-1 Mounting the Motherboard into a Chassis ... 5-2 Processor and Heatsink Installation ... 5-2 Connecting Cables ... 5-5 Connecting Data Cables ... 5-5 Connecting Power Cables ... 5-5 Connecting the Control Panel ... 5-6 I/O Ports ...
Page 8 AS1010S-MR User's Manual Power Supply Fail Alarm Header ... 5-17 Power Supply Fail Alarm Reset Header ... 5-17 5-10 Jumper Settings ... 5-18 Explanation of Jumpers ... 5-18 CMOS Clear ... 5-18 Onboard Speaker Enable/Disable ... 5-19 PCI-X Slot Speed ... 5-19 VGA Enable/Disable ...
Page 9 Table of Contents Appendices: Appendix A: BIOS Error Beep Codes ... A-1 Appendix B: BIOS POST Checkpoint Codes ... B-1 Appendix C: System Speciﬁ cations ... C-1...
Page 10 AS1010S-MR User's Manual Notes...
Page 11: Chapter 1: Introduction
Overview The AS1010S-MR is a high-end single processor, mini 1U rackmount server. The 1010S-MR is comprised of two main subsystems: the SC512C-260 chassis and the H8SSL-i motherboard. The H8SSL-i supports a single AMD Opteron 100 series processor in a 939-pin socket and up to 4 GB of unbuffered DDR400/333 SDRAM memory.
Page 12: Motherboard Features
AS1010S-MR User's Manual Motherboard Features At the heart of the 1010S-MR lies the H8SSL-i, a single processor motherboard designed to provide maximum performance. Below are the main features of the H8SSL-i. (See Figure 1-1 for a block diagram of the ServerWorks HT-1000 chipset.) Processors The H8SSL-i has an 939-pin ZIF socket that supports a single AMD Opteron Series...
Page 13 ATI Graphics Controller An ATI video controller based on the Rage XL 8 MB graphics chip is integrated onboard the H8SSL-i. Onboard Controllers/Ports An onboard IDE controller supports one ﬂ oppy drive and up to two Ultra ATA 100 hard drives or ATAPI devices. Onboard I/O backpanel ports include one serial COM port, two USB ports, a VGA (monitor) port, PS/2 mouse and keyboard ports and two GLAN (RJ45) ports.
Page 14 AS1010S-MR User's Manual Figure 1-1 . ServerWorks HT-1000 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. 184 -pin DIMMs Opteron Processor 144-bit, 200 -400 MT/s Rage XL 8x HT @ 1.6 GB/sec GLAN (2 ) 33 MHz PCI Slots (2) ServerWorks...
Page 15: Server Chassis Features
Server Chassis Features The 1010S-MR is a mini 1U rackmount server platform conﬁ guration. The following is a general outline of the main features of the SC512C-260 chassis. System Power When conﬁ gured as a 1010S-MR, the SC512C-260 chassis includes a single 260W power supply.
Page 16 AS1010S-MR User's Manual Notes...
Page 17: Chapter 2: Server Installation
An optional rack rail package is avail- able if you wish to order from Supermicro. Follow the steps in the order given to complete the installation process in a minimal amount of time. Please read this section in its entirety before you begin the installation procedure outlined in the sections that follow.
Page 18: Warnings And Precautions
AS1010S-MR User's Manual Choosing a Setup Location - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufﬁ...
Page 19: Rack Mounting Considerations
Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).
Page 20: Installing The System Into A Rack
AS1010S-MR User's Manual Installing the System into a Rack (Rack hardware optional) This section provides information on installing the 1010S-MR into a rack unit. If the system has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6.
Page 21 Chapter 2: Server Installation Installing the Chassis Rails The two rail sections must be detached from each other prior to installation. Do this by depressing the locking tab on the inner rail to release it from its locked position then pull the two rails completely apart. Do this for both the left and right side rack rail assemblies.
Page 22 AS1010S-MR User's Manual Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chas- sis rails with the front of the rack rails.
Page 23 Chapter 2: Server Installation Figure 2-4. Installing the Server into a Rack: w/ Rackmount Kit Installing the Server into a Telco Rack If you are installing the 1010S-MR into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.
Page 24: Checking The Motherboard Setup
AS1010S-MR User's Manual Figure 2-5. Installing the Server into a Telco Rack: Basic Checking the Motherboard Setup After you install the 1010S-MR in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the connections have been made.
Page 25 Figure 2-6. Installing the Server into a Telco Rack: w/ Rackmount Kit the cover away from you until it stops. You can then lift the top cover from the chassis to gain full access to the inside of the server. 2.
Page 26 AS1010S-MR User's Manual 4. Installing add-on cards If desired, you can install an add-on card to the system. See Chapter 5 for details on installing a PCI add-on card. 5. Check all cable connections and airﬂ ow Make sure all power and data cables are properly connected and not blocking the airﬂ...
Page 27: Checking The Drive Bay Setup
Chapter 2: Server Installation Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the Serial ATA drive have been properly installed and all essential connections have been made. 1. Accessing the drive bays For servicing the Serial ATA, CD-ROM and ﬂ...
Page 28 AS1010S-MR User's Manual Notes 2-12...
Page 29: Chapter 3: System Interface
System Interface Overview There are several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the activity and health of speciﬁ c com- ponents. There are also two buttons on the chassis control panel. This chapter explains the meanings of all LED indicators and the appropriate response you may need to take.
Page 30: Control Panel Leds
AS1010S-MR User's Manual Control Panel LEDs The control panel located on the front of the SC512C-260 chassis has ﬁ ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.
Page 31: Power
Chapter 3: System Interface Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
Page 32 AS1010S-MR User's Manual Notes...
Page 33: Chapter 4: System Safety
Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the 1010S-MR from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.
Page 34: General Safety Precautions
AS1010S-MR User's Manual Motherboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 4-1). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer.
Page 35: Esd Precautions
ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic com ponents and printed circuit boards. The following measures are generally sufﬁ cient to neutralize this difference before contact is made to protect your equipment from ESD: Use a grounded wrist strap designed to prevent static discharge.
Page 36: Operating Precautions
AS1010S-MR User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 1010S-MR is operating to assure proper cooling. Out of warranty damage to the 1010S-MR system can occur if this practice is not strictly followed. Figure 4-1.
Page 37: Chapter 5: Advanced Motherboard Setup
Advanced Motherboard Setup This chapter covers the steps required to install processors and heatsinks to the H8SSL-i motherboard, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are described and a layout and quick reference chart are included in this chapter. Remember to close the chassis completely when you have ﬁ...
Page 38: Mounting The Motherboard Into A Chassis
AS1010S-MR User's Manual Mounting the Motherboard into a Chassis All serverboards and motherboards have standard mounting holes to ﬁ t different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
Page 39 Chapter 5: Advanced Motherboard Setup 2. Use your thumb and your index ﬁ n- ger to hold the CPU. Locate pin 1 on the CPU socket and pin 1 on the CPU. Triangles Both are marked with a triangle. 3. Align pin 1 of the CPU with pin 1 of the socket.
Page 40 AS1010S-MR User's Manual Installing the Heatsink Retention Modules One heatsink retention module (BKT-0005) and two screws are included in the retail box. Once installed, these are used to help attach the heatsink to the CPU. To install, position the module so that the CPU backplate standoffs insert through the holes on the heatsink retention module and the four feet on the module contact the motherboard.
Page 41: Connecting Cables
Connecting Cables Now that the processors are installed, the next step is to connect the cables to the motherboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed in preconﬁ...
Page 42: Connecting The Control Panel
AS1010S-MR User's Manual Connecting the Control Panel JF1 contains header pins for various front control panel connectors. See Figure 5-2 for the pin locations of the various front control panel buttons and LED indica- tors and refer to section 5-9 for details. Note that even and odd numbered pins are on opposite sides of each header.
Page 43: I/O Ports
I/O Ports The I/O ports are color coded in conformance with the PC 99 speciﬁ cation. See Figure 5-3 below for the colors and locations of the various I/O ports. Figure 5-3. Rear Panel I/O Ports Mouse (Green) USB 0/1 Ports Keyboard COM1 Port (Purple)
Page 44 AS1010S-MR User's Manual Support The H8SSL-i supports single or dual-channel, unbuffered ECC DDR400/333 SDRAM. Both interleaved and non-interleaved memory are supported, so you may populate any number of DIMM slots. You should use low-proﬁ le memory in the 1U server chassis. Populating two adjacent slots at a time with memory modules of the same size and type will result in interleaved (128-bit) memory, which is faster than non-interleaved (64-bit) memory.
Page 45: Adding Pci Cards
Chapter 5: Advanced Motherboard Setup Adding PCI Cards 1. PCI slots: The H8SSL-i has three PCI expansion slots. One of these slots (the 133 MHz PCI- X slot #6) may be populated with the use of the CSE-RR1U-X riser card, which is included with the system.
Page 46: Motherboard Details
AS1010S-MR User's Manual Motherboard Details Figure 5-5. H8SSL-i Motherboard Layout USB0/1 LAN1 LAN2 JPXA1 Rage SATA3 SATA2 SATA1 Notes: Jumpers not indicated are for test purposes only. (not drawn to scale) FAN5 CPU1 DIMM 2B CPU1 DIMM 1B CPU1 DIMM 2A CPU1 DIMM 1A 1U IPMI PCI #6: 133 MHz PCI-X...
Page 47: H8Ssl-I Quick Reference
H8SSL-i Quick Reference Jumpers Description JBT1 CMOS Clear Onboard Speaker En/Disable Pins 6-7 (Enabled) Power Force On JPG1 VGA Enable/Disable LAN Enable/Disable JPCISMB1 SMBus Enable/Disable JPXISMB1 SMBus Enable/Disable JPXA1 PCI-X Slot Frequency Select Open (Auto) Watch Dog Connectors Description 1U IPMI IPMI 2.0 Socket COM1/COM2 COM1 Serial Port/Header...
Page 48: Connector Deﬁ Nitions
AS1010S-MR User's Manual Connector Deﬁ nitions Primary ATX Power Connector The primary power connector on the H8SSL-i meets the SSI (Superset ATX) 24-pin speciﬁ cation. Refer to the table on the right for the pin deﬁ nitions of the main ATX power connector. Note: You must also connect the PW2 power connector to your power supply (see below).
Page 49: Hdd Led
HDD LED The HDD (IDE Hard Disk Drive) LED connection is located on pins 13 and 14 of JF1. Attach the IDE hard drive LED cable to display disk activity. Refer to the table on the right for pin deﬁ nitions. NIC1 LED The NIC1 (Network Interface Control- ler) LED connection is located on pins...
Page 50: Reset Button
AS1010S-MR User's Manual Reset Button The Reset Button connection is lo- cated on pins 3 and 4 of JF1. Attach it to the hardware reset switch on the computer case. Refer to the table on the right for pin deﬁ nitions. Power Button The Power Button connection is located on pins 1 and 2 of JF1.
Page 51: Usb2/3 Headers
USB2/3 Headers Two additional USB2.0 headers (USB2/3) are included on the mother- board near the COM2 header. These may be connected to provide front side USB access. USB cables (not included) are needed for the connec- tions. See the table on the right for pin deﬁ...
Page 52: Power Led/Speaker
AS1010S-MR User's Manual Power LED/Speaker On JD1, pins 1, 2, and 3 are for the power LED and pins 4 through 7 are for the speaker. See the tables on the right for pin deﬁ nitions. Note: The speaker connector pins are for use with an external speaker.
Page 53: Lan1/2 (Ethernet Ports)
LAN1/2 (Ethernet Ports) Two Gigabit Ethernet ports (desig- nated LAN1 and LAN2) are located beside the VGA port. These ports accept RJ45 type cables. Chassis Intrusion A Chassis Intrusion header is located at JL1. Attach the appropriate cable to inform you of a chassis intrusion. IPMI Header The Intelligent Platform Management Interface (IPMI) header is located at...
Page 54: 5-10 Jumper Settings
AS1010S-MR User's Manual 5-10 Jumper Settings Explanation of Jumpers To modi f y the operat ion of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector.
Page 55: Onboard Speaker Enable/Disable
Onboard Speaker Enable/ Disable The JD1 header allows you to use either an external speaker or the internal (onboard) speaker. To use the internal (onboard) speaker, close pins 6 and 7 with a jumper. To use an external speaker, connect the speaker wires to pins 4 through 7 of JD1.
Page 56: Watch Dog Enable/Disable
AS1010S-MR User's Manual Watch Dog Enable/Disable JWD controls the Watch Dog function. Watch Dog is a system monitor that can reboot the system when a software application hangs. Pins 1-2 will cause WD to reset the system if an applica- tion has frozen.
Page 57: 5-11 Onboard Indicators
5-11 Onboard Indicators LAN1/LAN2 LEDs The Ethernet ports (located beside the VGA port) have two LEDs. On each Gb LAN port, the yellow (right) LED indicates activity while the left LED may be green, orange or off to indicate the speed of the connection. See the table on the right for the func- tions associated with the left (activity speed) LED.
Page 58: 5-12 Floppy, Ide And Sata Drive Connections
AS1010S-MR User's Manual 5-12 Floppy, IDE and SATA Drive Connections Use the following information to connect the ﬂ oppy and hard disk drive cables. The ﬂ oppy disk drive cable has seven twisted wires. A red mark on a wire typically designates the location of pin 1. A single ﬂ...
Page 59: Ide Connector
IDE Connector There are no jumpers to con- ﬁ gure the onboard IDE connec- tor. See the table on the right for pin deﬁ nitions. SATA Connectors There are no jumpers to con- figure the SATA connectors, which are designated SATA0, SATA1, SATA2 and SATA3.
Page 60 AS1010S-MR User's Manual Notes 5-24...
Page 61: Chapter 6: Advanced Chassis Setup
Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC512C-260 chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows. Tools Required The only tool you will need to install components and perform maintainance is a Philips screwdriver.
Page 62: Control Panel
AS1010S-MR User's Manual Figure 6-1. Chassis Front View Figure 6-2. Chassis Rear View Parallel Port Keyboard/ Mouse Ports USB Ports COM1 Port Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the motherboard to provide you with system control buttons and status indicators.
Page 63: System Fans
System Fan Failure If the fan fails, you will need to have it replaced with the same type. Contact your vendor or Supermicro for information on replacement fans. The fan sits on two mounting posts secured with screws. See Figure 6-3.
Page 64: Drive Bay Installation/Removal
AS1010S-MR User's Manual Drive Bay Installation/Removal Accessing the Drive Bays CD-ROM/Serial ATA/Floppy Disk Drives: For installing or removing the CD-ROM, Serial ATA or ﬂ oppy disk drive, you will need to gain access to the inside of the 1010S-MR by removing the top cover of the chassis. Note: Only a "slim" CD-ROM and a "slim"...
Page 65 Drives mount on rails and should "click" into place to be correctly and fully installed in their bays. • The ﬂ oppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1. •...
Page 66: Power Supply
AS1010S-MR User's Manual Power Supply The 1010S-MR has a single 260 watt power supply. This power supply has the capability of operating at 100 - 240 input volts. Power down the system and then unplug the AC power cord to completely remove power from the system before removing the power supply.
Page 67: Chapter 7: Bios
Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMIBIOS™ Setup utility for the H8SSL-i. The AMI ROM BIOS is stored in a ﬂ ash chip and can be easily upgraded using a ﬂ oppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.
Page 68: Main Menu
AS1010S-MR User's Manual Main Menu When you ﬁ rst enter AMI BIOS Setup Utility, you will see the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main Setup screen provides you with a system overview, which includes the version, built date and ID of the AMIBIOS, the type, speed and number of the processors in the system and the amount of memory installed in the system.
Page 69 Floppy B Move the cursor to these ﬁ elds via up and down <arrow> keys to select the ﬂ oppy type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44 MB 3½”, and 2.88 MB 3½". IDE Conﬁ...
Page 70 AS1010S-MR User's Manual PIO Mode PIO (Programmable I/O) mode programs timing cycles between the IDE drive and the programmable IDE controller. As the PIO mode increases, the cycle time decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI BIOS to auto detect the PIO mode.
Page 71 Chapter 7: BIOS ATA(PI) 80Pin Cable Detection This setting allows AMI BIOS to auto-detect the 80-Pin ATA(PI) cable. The op- tions are Host & Device, Host and Device. PCI/PnP Clear NVRAM Select Yes to clear NVRAM during boot-up. The options are Yes and No. Plug &...
Page 72 AS1010S-MR User's Manual IRQ3/IRQ4/IRQ5/IRQ7/IRQ9/IRQ10/IRQ11/IRQ14/IRQ15 This feature speciﬁ es the availability of an IRQ to be used by a PCI/PnP device. Select Reserved for the IRQ to be used by a Legacy ISA device. The options are Available and Reserved. DMA Channel0/Channel1/Channel3/Channel5/Channel6/Channel7 Select Available to indicate that a speciﬁ...
Page 73: Advanced Chipset Control
Chapter 7: BIOS Restore on AC Power Loss This setting allows you to choose how the system will react when power returns after an unexpected loss of power. The options are Power Off and Last State. Watch Dog Timer This setting is used to enable or disabled the Watch Dog Timer function. It must be used in conjunction with the Watch Dog jumper (see Chapter 2).
Page 74 AS1010S-MR User's Manual Hardware Memory Hole When "Enabled", allows software memory remapping around the memory hole (only supported by rev. E0 processors and above). Options are Enabled and Disabled. ECC Conﬁ guration DRAM ECC Enable DRAM ECC allows hardware to report and correct memory errors automati- cally.
Page 75 HT1000 SouthBridge Conﬁ guration HIDE XIOAPIC PCI Functions The options are Yes and No. S-ATA Conﬁ guration HT-1000 S-ATA Use this setting to Enable or Disable the on-chip SATA controller. Port# to Boot From Use this setting to select which port to boot from. Options are Port0, Port1, Port2 and Port3.
Page 76 AS1010S-MR User's Manual Headless Mode Select "Enabled" to activate the Headless Operation Mode through ACPI. The options are Enabled and Disabled. Event Log Conﬁ guration View Event Log Highlight this item and press <Enter> to view the contents of the event log. Mark All Events as Read Highlight this item and press <Enter>...
Page 77: System Health Monitor
Legacy USB Support Select "Enabled" to enable the support for USB Legacy. Disable Legacy support if there are no USB devices installed in the system. The options are Enabled and Disabled. USB 2.0 Controller Mode Select the controller mode for your USB ports. Options are HiSpeed and FullSpeed.
Page 78: Boot Menu
AS1010S-MR User's Manual the onboard fans to continuously run at full speed (12V). The options are 1) Disable, Full Speed 2) 3-pin (Server) and 3) 3-pin (Workstation). FAN1 Speed through FAN5 Speed The speeds of the onboard fans (in rpm) are displayed here. Boot Menu Boot Settings Conﬁ...
Page 79: Boot Device Priority
Hit ‘DEL’ Message Display Enable to display the message telling the user to hit the DEL key to enter the setup utility. The options are Enabled and Disabled. PXE Option ROM Use this setting to either Enable or Disable the PXE ROM. The options are Enabled and Disabled.
Page 80: Security Menu
AS1010S-MR User's Manual CD/DVD Drives This feature allows the user to specify the boot sequence from available CDROM drives. 1st Drive Speciﬁ es the boot sequence for the 1st Hard Drive. Onboard SCSI Host RAID Use this setting to Enable or Disable the onboard SCSI Host RAID. Onboard NIC PXE Option ROM Use this setting to Enable or Disable the onboard NIC PXE option ROM.
Page 81: Exit Menu
Chapter 7: BIOS Exit Menu Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Exit When you have completed the system conﬁ guration changes, select this option to leave BIOS Setup and reboot the computer, so the new system conﬁ guration parameters can take effect.
Page 82 AS1010S-MR User's Manual Notes 7-16...
Page 83: Appendix A: Bios Error Beep Codes
BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen. Fatal errors are those which will not allow the system to continue the boot-up pro- cedure.
Page 84 AS1010S-MR User's Manual Notes...
Page 85: Appendix B: Bios Post Checkpoint Codes
BIOS POST Checkpoint Codes When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, diagnostic equipment can be attached to the computer to read I/O port 0080h. Uncompressed Initialization Codes The uncompressed initialization checkpoint codes are listed in order of execution: Checkpoint...
Page 86 AS1010S-MR User's Manual Bootblock Recovery Codes The bootblock recovery checkpoint codes are listed in order of execution: Checkpoint Code Description The onboard ﬂ oppy controller if available is initialized. Next, beginning the base 512 KB memory test. Initializing the interrupt vector table next. Initializing the DMA and Interrupt controllers next.
Page 87 Uncompressed Initialization Codes The following runtime checkpoint codes are listed in order of execution. These codes are uncompressed in F0000h shadow RAM. Checkpoint Code Description The NMI is disabled. Next, checking for a soft reset or a power on condition. The BIOS stack has been built.
Page 88 AS1010S-MR User's Manual Checkpoint Code Description Interrupt vector initialization is done. Clearing the password if the POST DIAG switch is on. Any initialization before setting video mode will be done next. Initialization before setting the video mode is complete. Conﬁ guring the mono- chrome mode and color mode settings next.
Page 89 Checkpoint Code Description The memory below 1 MB has been cleared via a soft reset. Clearing the memory above 1 MB next. The memory above 1 MB has been cleared via a soft reset. Saving the memory size next. Going to checkpoint 52h next. The memory test started, but not as the result of a soft reset.
Page 90 AS1010S-MR User's Manual Checkpoint Code Description The password was checked. Performing any required programming before WIN- BIOS Setup next. The programming before WINBIOS Setup has completed. Uncompressing the WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility next.
Page 91 Checkpoint Code Description Returned from adaptor ROM at E000h control. Performing any initialization required after the E000 option ROM had control next. Initialization after E000 option ROM control has completed. Displaying the system conﬁ guration next. Uncompressing the DMI data and executing DMI POST initialization next. The system conﬁ...
Page 92 AS1010S-MR User's Manual Notes...
Page 93: Appendix C: System Speciﬁ Cations
Appendix C: System Speciﬁ cations Appendix C System Speciﬁ cations Processors Single AMD Opteron Series 100 processor in a 939-pin socket Note: Please refer to our web site for a complete listing of supported processors. Chipset ServerWorks HT-1000 chipset BIOS 4 Mb AMI BIOS®...
Page 94 AS1010S-MR User's Manual Motherboard Model: H8SSL-i (ATX form factor) Dimensions: 8 x 12 in (203 x 305 mm) Chassis Model: SC512C-260 Form Factor: 1U rackmount Dimensions: (WxHxD) 16.7 x 1.7 x 14 in. (424 x 43 x 356 mm) Weight Net (Gross): 23 lbs.
Page 95 Appendix C: System Speciﬁ cations Regulatory Compliance Electromagnetic Emissions: FCC Class B, EN 55022 Class B, EN 61000-3-2/-3-3, CISPR 22 Class B Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: EN 60950/IEC 60950-Compliant, UL Listed (USA), CUL Listed (Canada), TUV Certiﬁ...
Page 96 AS1010S-MR User's Manual Notes...
