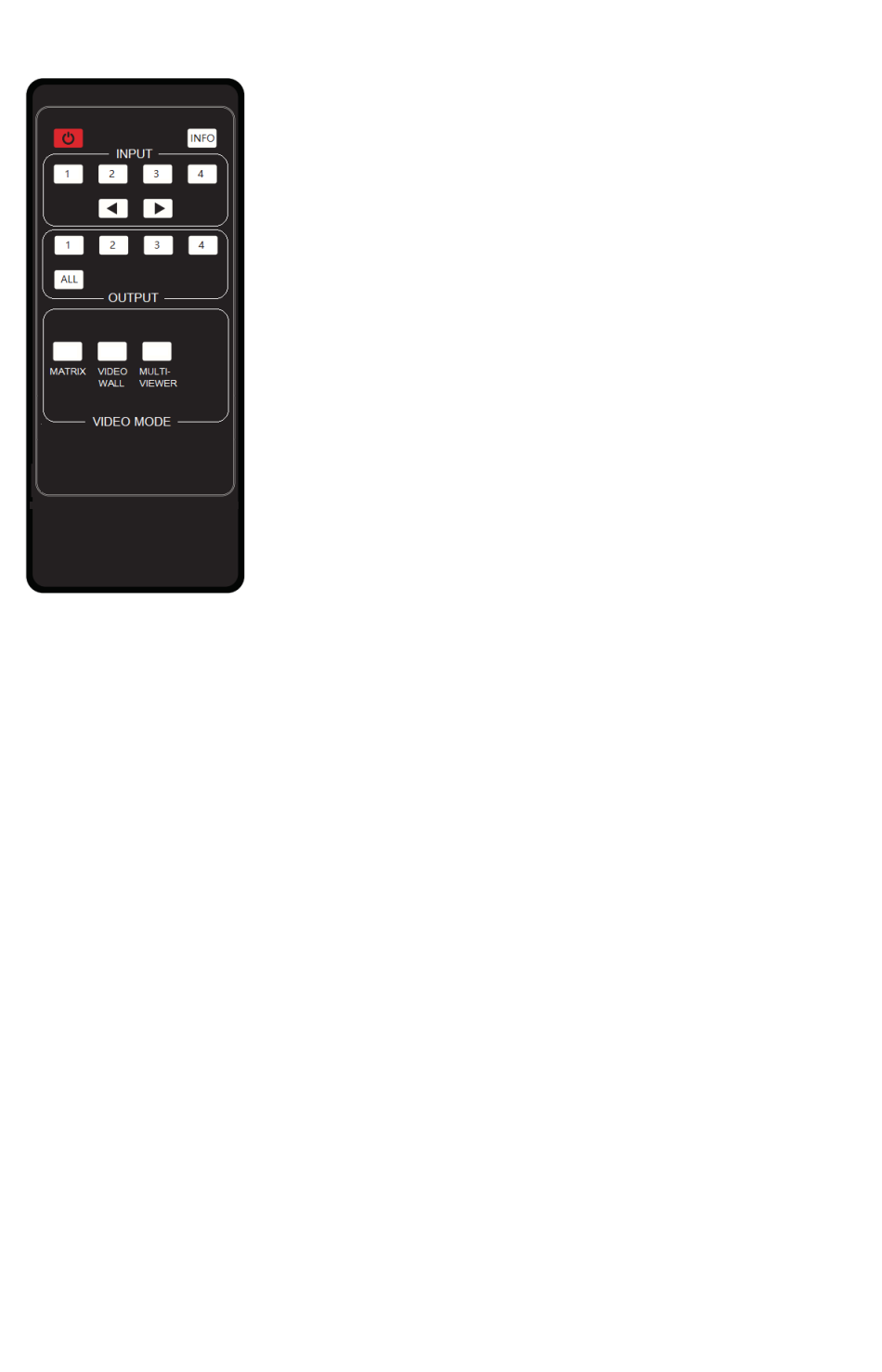

6. IR Remote

VIDEO MODE:
There are three video output modes: MATRIX, VIDEO WALL and MULTI-VIEWER.
It will memorize the correspondence between the inputs and outputs and the
configuration which are set in each mode on Web page last time when you switch
the modes.
Operation Instruction:
You need to press the output button firstly and then press input button to select the
corresponding input source. For example, press Output-X (X means output button
from 1 to 4 , including "ALL" button), then press Input-Y (Y means input button from 1
to 4)
The Matrix can be selected input and output source by using the IR remote. There
are two ways to receive the IR remote signal.
The first way: The IR window accepts the IR remote signal. Using the IR remote, the
furthest distance is 8 meters when the IR remote is directly faced to the matrix, and 5
meters when the using angle is ± 45°. The diagram is shown as below:
Power on or Standby:
Power on the Matrix or set it to standby mode.
INFO:
Press to check the serial baud rate and IP address. It
will be displayed in the top right corner of the screen,
and disappear in five seconds or press the button again.
INPUT 1/2/3/4:
Press these buttons to select input sources.
◄ ►:
Select the last or next input source.
OUTPUT 1/2/3/4:
Select the output display device.
ALL:
Select all output simultaneously. For example, when
you press the "ALL" button and then press input "1"
button, at this time the input "1" source will be output
to all display devices.
7 / 38
