5. Operation Controls and Functions

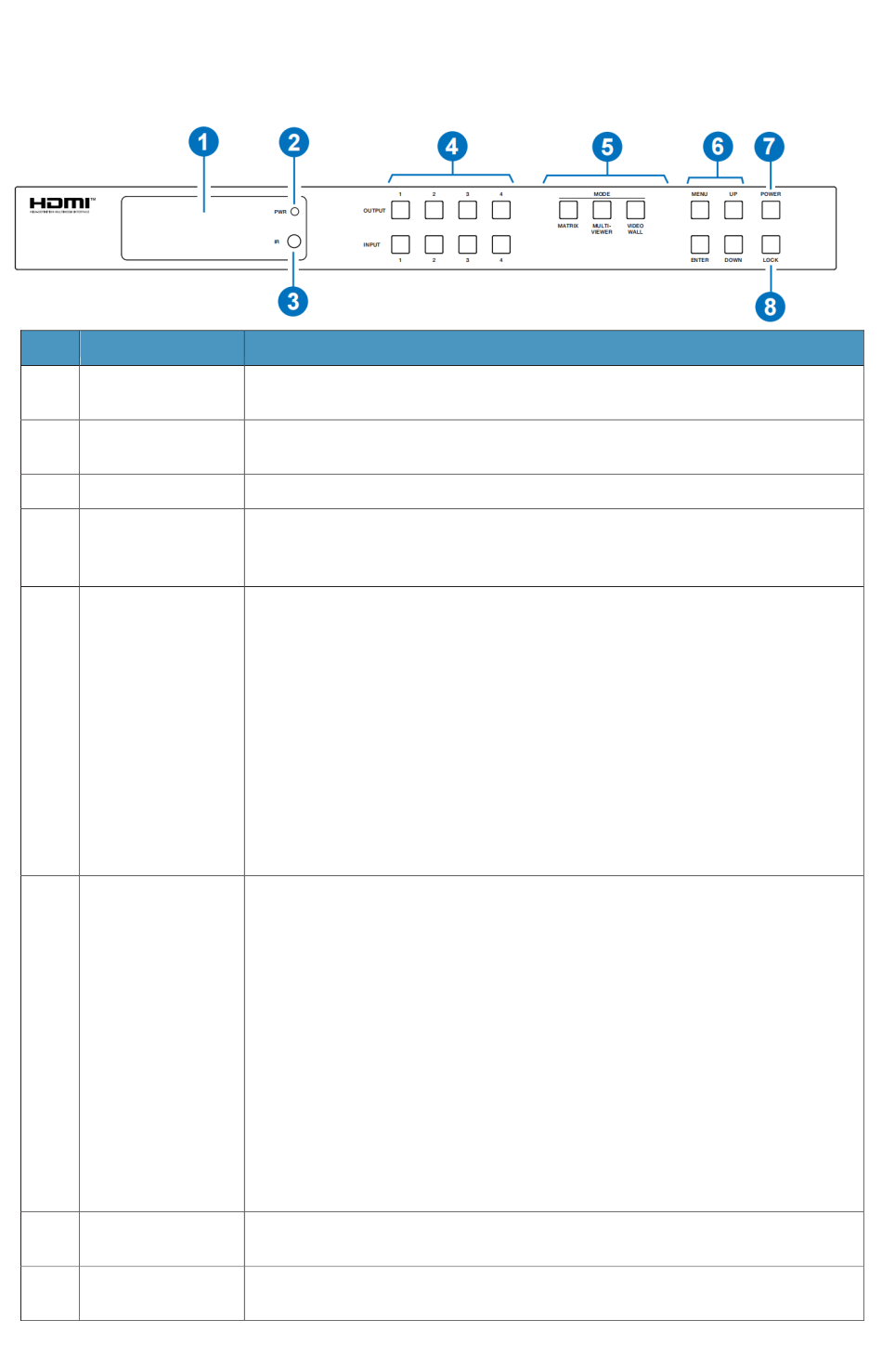

5.1 Front Panel
NO. Name
1 LCD screen
2 PWR LED
3 IR
INPUT / OUTPUT
4
buttons
MODE
(MATRIX /
5
MULTIVIEWER
/ VIDEO WALL)
MENU / ENTER
6
/ UP /DOWN
7 POWER button
8 LOCK button
Display matrix switching status, input / output port, EDID, Baud rate, IP
Address, etc.
The LED is on green when the device is working. The LED is on red
when the device is on standby.
IR signal receiver, receiving the signal from the IR remote.
You need to press an output button (1~4) firstly and then press an input
button (1~4) to select the corresponding input source for the output
port.
Press these buttons to select the corresponding video mode as required.
MATRIX: Press Matrix button to enter the matrix mode. You can
operate via front panel buttons, RS-232 commands and Web GUI to
set more details of the matrix mode.
MULTIVIEWER: Press MULTIVIEWER button to enter the multi-viewer
mode (The output buttons are used as Windows). You can operate via
front panel buttons, RS-232 commands and Web GUI to set more
details of the multi-viewer mode.
VIDEO WALL: Press VIDEO WALL button to enter the video wall mode
(The output buttons are used as Groups). You can operate via front
panel buttons, RS-232 commands and Web GUI to set more details
of the video wall mode.
Take RESET, for example.
① On the initial LCD display screen, press "MENU" button. There are
OUTPUT/MV/VM/INPUT/EXTAUDIO/SET items to be selected.
② Press the "UP/DOWN" button to select "SET" item.
③ Press the "ENTER" button to enter into the next level menu. There
are LCD ONTIME/BAUD RATE/IP INFO/BG PATTERN/REBOOT/
RESET items to be selected.
④ Press the "UP/DOWN" button to select "RESET" item.
⑤ Press the "ENTER" button to confirm the selection.
⑥ Press the "ENTER" button, and then it will prompt: SUCCESS!
Note:
• Pressing the "MENU" button will return to the previous menu.
• In any level menu, it will return to the initial display screen if no
operation goes on within 10 seconds.
Long press the button for 1 second to enter the standby mode, then
short press it to wake up the device.
Short press the button to lock front panel buttons (Except the power
button); press it again to unlock.
Function Description
