Note: You can drag and drop any input source on the right to the corresponding
window easily and quickly.

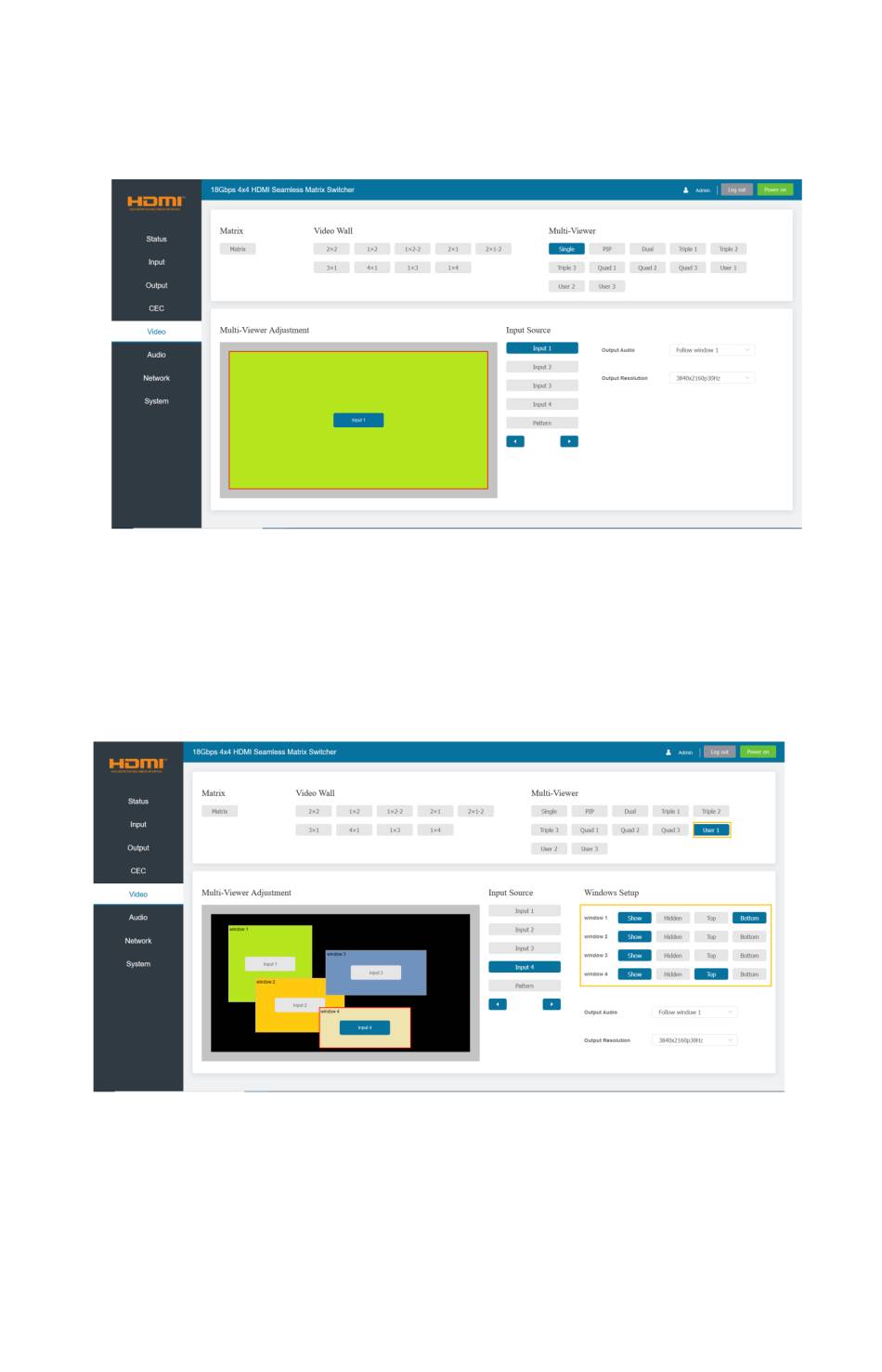

③ Multi-Viewer: Click the buttons to select the multi-viewer display mode. There are
12 modes to be selected.
In multi-viewer mode, all the four HDMI outputs display the same image from the HDMI
IN you selected. You can select the input source which will appear on the corresponding
window area. Then set the output resolution for current output by clicking the drop-
down list. Output Audio can be selected to follow any input source or the corresponding
window as required.
If a user-defined mode is selected, you can do the following operations on this page:
• The four windows are all displayed by default.
• Each window can be dragged and zoomed at will.
• Drag and drop the input source to any window.
• Click Windows Setup buttons to set the display of the corresponding window.
• The window will be maximized and placed on the top with double-clicking. It will
restore the previous status with double-clicking again.
