infobit iMatrix H44VAW User Manual

4k60 4x4 seamless matrix, w/ videowall & multiviewer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
iMatrix H44VAW
4K60 4x4 Seamless Matrix, w/ videowall &
multiviewer
VER 1.0
www.infobitav.com info@infobitav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMatrix H44VAW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for infobit iMatrix H44VAW

Summary of Contents for infobit iMatrix H44VAW

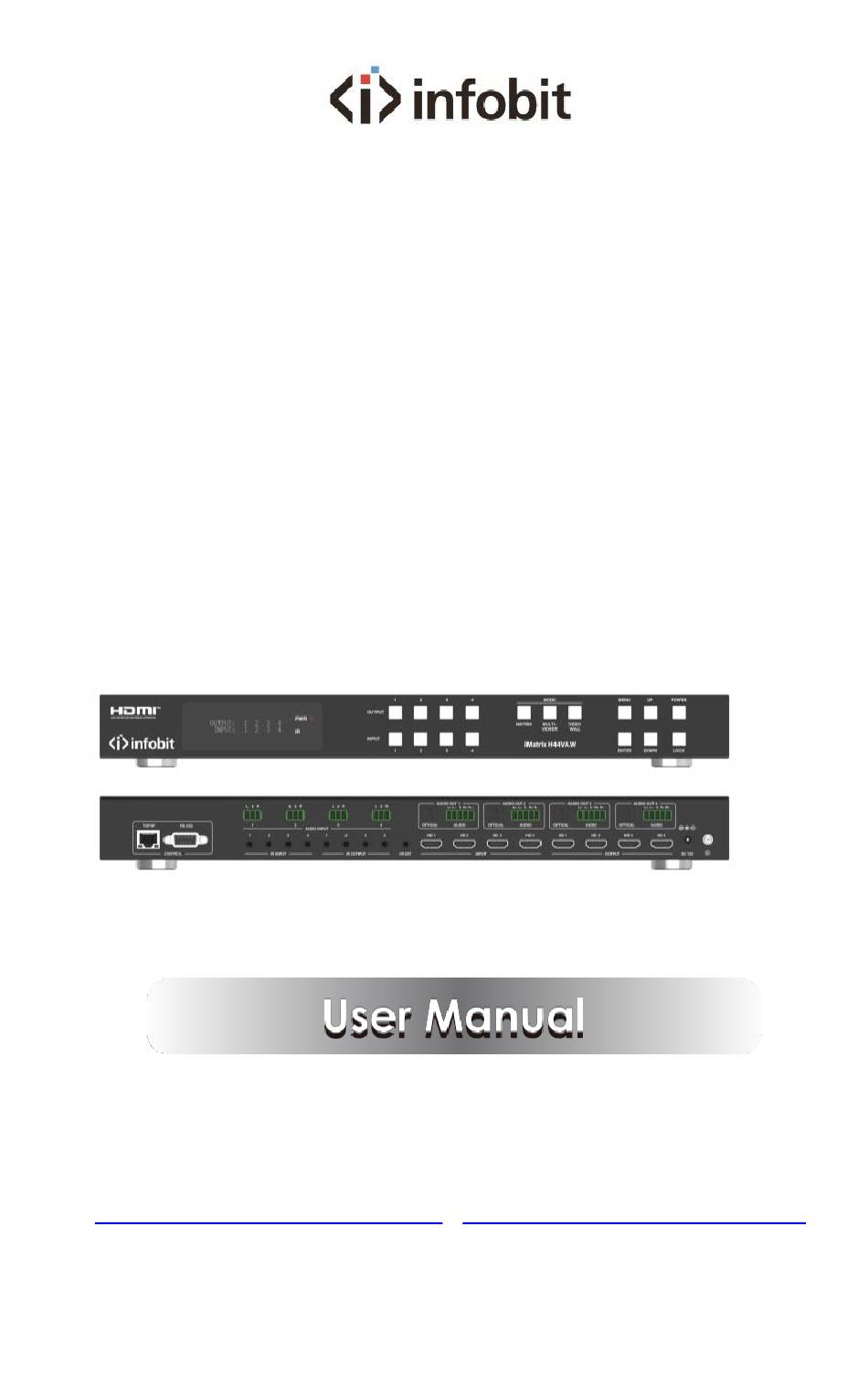

  • Page 1 H44VAW 4K60 4x4 Seamless Matrix, w/ videowall & multiviewer VER 1.0 www.infobitav.com info@infobitav.com...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The 4K60 4x4 Seamless Matrix is a perfect solution for video transmission from 4 HDMI sources to 4 HDTV displays. It has video wall and multi-viewer functions with multiple display modes. 4x4 IR matrix, audio embedded and de-embedded are also supported.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 Video Bandwidth 594MHz/18Gbps Video Resolution 480i ~1080P@50/60Hz, 4K2K@24/30Hz, 4K2K@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 Color Depth 8/10/12-bit LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS- Audio Formats 96/24, DTS High Res, DTS-HD Master Audio IR Level...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Front Panel Name Function Description Display matrix switching status, input / output port, EDID, Baud rate, IP LCD screen Address, etc. The LED is on green when the device is working. The LED is on red PWR LED when the device is on standby.
  • Page 6 5.2 Rear Panel Name Function Description TCP/IP control port, connected to PC or router with a CAT cable. TCP/IP Connect to a PC or control system by D-Sub 9-pin cable to transmit RS-232 port RS-232 command. L/R analog audio input port, connected to an analog audio input source AUDIO INPUT such as DVD or Blu-ray Player.
  • Page 7 5.3 LCD Display Navigation The buttons on the the front panel are used for LCD display navigation, including INPUT(1~4), OUTPUT(1~4), MATRIX, MULTIVIEWER, VIDEOWALL, MENU, ENTER, UP, DOWN, POWER, LOCK. Menu items are as follows: Level 1 Level 2 Level 3 Level 4 4K×2K60W, 4K×2K50W,...
  • Page 8 Level 1 Level 2 Level 3 Level 4 2×2 / 2×1 / 2×2-2 / 1×2 / 1×2-2 / 3×1 / MODE 4×1 / 1×3 / 1×4 4K2K60W / 4K2K50W / 4K2K60 / 4K2K50 / 4K2K30 / 1080P60 / 1080P50 / 1080i60 / RESO 1080i50 / WUXGA60_RB / 1360x768@60 / 1280x800@60 / 720P60 / 720P50 / XGA60...

  • Page 9: Ir Remote

    6. IR Remote Power on or Standby: Power on the Matrix or set it to standby mode. INFO: Press to check the serial baud rate and IP address. It will be displayed in the top right corner of the screen, and disappear in five seconds or press the button again.

  • Page 10: Ir Cable Pin Assignment

    The second way: If the IR receiver window of the Matrix is blocked or the Matrix is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR remote signal. The furthest distance of using the IR remote is 5 meters when the IR remote is directly faced to the IR receiver head, and 3 meters when the using angle is ±...

  • Page 11: Ir Control System

    8. IR Control System This product supports one-way IR control. When the matrix is connected to IR receiver cable and IR blaster cable, you can control the corresponding input source devices through IR signal transmission remotely at the side of display devices. Four IR blaster cables connected to the IR outputs must be placed near the four HDMI input sources.

  • Page 12: Multi-Viewer

    10. Multi-Viewer The matrix supports multiple display modes: SINGLE, PIP, Dual, Triple 1, Triple 2, Triple 3, Quad 1, Quad 2, Quad 3, User 1, User 2, User 3. Users can select different operations for different multi-viewer modes as following: SINGLE: Inputs selection PIP: Inputs selection, Sub window size and position selection Dual, Triple 1, Triple 2, Triple 3, Quad 1, Quad 2, Quad 3: Inputs selection, Display...

  • Page 13: Edid Management

    11. EDID Management This Matrix has 12 factory defined EDID settings, 2 user-defined EDID modes and 4 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 control or Web GUI. On-panel button operation: On the initial LCD display screen, press “MENU”...
  • Page 14 The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 4K60, 2.0CH 4K60, 5.1CH 4K60, 7.1CH 4K30, 2.0CH 4K30, 5.1CH 4K30, 7.1CH 1080P, 2.0CH 1080P, 5.1CH 1080P, 7.1CH WUXGA, 2.0CH 768P, 2.0CH XGA, 2.0CH USER1 USER2 COPY OUT1...

  • Page 15: Web Gui User Guide

    12. Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100. You can get the current Matrix IP address in two ways: The first way: You can get the IP address via IR remote.
  • Page 16 Select the Username and enter the password. The default password is: Username User / Admin Password user / admin Click the Language drop-down list to select English or Simplified Chinese. Then click the“LOGIN” button and the following Status page will appear. ■...
  • Page 17 ④ EDID: It indicates the current EDID of the device. You can click the drop-down menu to select other EDIDs. ⑤ Load EDID to user memory: Set EDID for the User. Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will be a prompt, as shown in the following figure: Make sure to select the correct file, then you can check the name of the selected file.
  • Page 18 ■ Output Page You can do the following operations on the Output page: ① Outputs: Output channel of the device. ② Cable: It indicates the connection status of output ports. When the output port is connected to the display, it shows green. Otherwise, it shows gray. ③...
  • Page 19 ⑤ Color Space: Set the color space for current output. Click the drop-down menu and select the item as required. There are four options to be selected. ⑥ HDCP: Click the drop-down menu and set the HDCP version for current output. There are four options to be selected: •...
  • Page 20 ■ CEC Page You can perform CEC management on this page. Inputs and Outputs can be controlled by clicking on the corresponding icons. ① Input Control: Select the input source on the left, and then click on the icons to power on, power off, return, switch, pause, fast-forward, fast-back, mute, unmute, etc.
  • Page 21 ■ Video Page You can set the video mode on this page. There are three modes: Matrix, Video Wall and Multi-Viewer. ① Matrix: Click to select Matrix mode. In matrix mode, you can select an output (1~4) firstly, and then select an input source (1~4) which will appear on the selected output area.
  • Page 22 Note: You can drag and drop any input source on the right to the corresponding window easily and quickly. ③ Multi-Viewer: Click the buttons to select the multi-viewer display mode. There are 12 modes to be selected. In multi-viewer mode, all the four HDMI outputs display the same image from the HDMI IN you selected.
  • Page 23 ■ Audio Page In Audio page, you can select the input audio in Input Audio Select area, and set the ext-audio mode in Ext Audio Select area. You can select any input audio source from an HDMI input internal audio or an embedded audio.
  • Page 24 Bind to Output: The AUDIO OUT (1~4) follows the HDMI OUTPUT (1~4). For example, if HDMI INPUT 2 is assigned to HDMI OUTPUT 1, the audio of AUDIO OUT 1 is from HDMI INPUT 2; if HDMI INPUT 3 is assigned to HDMI OUTPUT 1, the audio of AUDIO OUT 1 is from HDMI INPUT 3.
  • Page 25 If the Mode is “Static”, you can set manually the IP Address/Gateway/Subnet/Telnet Port as required. If the Mode is “DHCP”, it will search and be filled with the IP Address assigned by the router automatically. You can't modify it now. ②...
  • Page 26 ■ System Page You can do the following operations on the System page: ① Panel Lock: Click “ON/OFF” to lock/unlock panel buttons. “ON” indicates that panel buttons are unavailable; “OFF” indicates panel buttons are available. ② Beep: Turn on/off the beep. ③...

  • Page 27: Rs-232 Control Command

    13. RS-232 Control Command The product also supports RS-232 control. You need a serial cable with RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 28 Function Description Example Feedback Default Setting Command Code System Setting r beep! Get buzzer state r beep! beep on / beep off Lock/unlock front panel panel button lock on panel button lock s lock z! button, z=0~1 (z=0 lock s lock 1! panel button lock off off,z=1 lock on) Get panel button lock...
  • Page 29 Command Code Function Description Example Feedback Default Setting Output Setting Set output y resolution (y=0~4, x=1~16) y=0. output all y=1. output 1 y=2. output 2 y=3. output 3 y=4. output 4 1. 4096x2160p60, 2. 4096x2160p50, 3. 3840x2160p60, 4. 3840x2160p50, s output output 1 resolution: s output y res x! 5.
  • Page 30 Command Function Description Example Feedback Default Setting Code Output Setting Get output y hdcp status (y=0~4) y=0. output all r output y r output 1 output 1 hdcp: hdcp y=1. output 1 hdcp! hdcp! y=2. output 2 y=3. output 3 y=4.
  • Page 31 Function Description Example Feedback Default Setting Command Code Output Setting Set output no signal background display mode (x=1~6) x=1. black screen s output bg output background: s output bg x! x=2. blue screen black screen black screen x=3. color bar x=4.
  • Page 32 Function Description Example Feedback Default Setting Command Code Video Matrix Setting Route input source to output y (y=0~4, x=1~4) y=0. output all y=1. output 1 output1->input1 y=2. output 2 s output y in s output 1 in output2->input2 y=3. output 3 output1->input1 source x! source 1!
  • Page 33 Command Function Example Feedback Default Setting Code Description Video Wall Setting Get tv wall group y display which source input (y=0~4) tv wall group 1 input: hdmi input 1 r tw group y y=0. tv wall group all r tw group 0 tv wall group 2 input: hdmi input 2 source! y=1.
  • Page 34 Default Command Code Function Description Example Feedback Setting Multi-viewer Setting Get windows y selected input source (y=0~4) y=0. window all window 1 select r window y in! y=1. window 1 r window in! hdmi 1 y=2. window 2 y=3. window 3 y=4.
  • Page 35 Command Code Function Description Example Feedback Default Setting Multi-viewer Setting Set user define windows display mode (x=1~3) s user x mode! 1. user 1 mode s user 1 mode! user 1 mode user 1 mode 2. user 2 mode 3. user 3 mode Get user define windows r user mode! r user mode!
  • Page 36 Command Code Function Description Example Feedback Default Setting Embedded Audio Setting Get input x audio input 1 select hdmi selected source hdmi or original audio embed analog audio input 2 select hdmi (x=0~4, z=0~1) original audio r input x as! r input 0 as! x=0.
  • Page 37 Command Code Function Description Example Feedback Default Setting Ext-audio Setting output 1 ext-audio- Get output y ext-audio selected input source >input 1 (y=0~4) output 2 ext-audio- r output y exa in r output 0 exa >input 2 y=0. output all output 3 ext-audio- source! y=1.
  • Page 38 Default Command Code Function Description Example Feedback Setting CEC Setting s cec in x Set input x previous by s cec in 1 input 1 previous operation previous! cec, x=0~4 (0=all input) previous! Set input x next by cec, s cec in x next! s cec in 1 next! input 1 next operation x=0~4 (0=all input) Set hdmi output y power...
  • Page 39 Default Command Code Function Description Example Feedback Setting Network Setting r ip addr! Get network ip address r ip addr! ip address:192.168.0.100 set subnet mask: 255.255.255.0 (please use "s net reboot!" s subnet xxx. Set network subnet command or repower device s subnet 255.255.255.0! xxx.xxx.xxx!

  • Page 40: Application Example

    14. Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 38 / 38...
