Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual for
future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the life of
your equipment.
Caution
The product requires the use of UTP connectors. Please connect in direct
interconnection method and do not cross connect.

Table of Contents

1. Introduction. ........................................................................................................... 1
2. Features. ................................................................................................................ 1
3. Package Contents. ................................................................................................ 1
4. Specifications. ................................................................................................................... 2
5. Operation Controls and Functions. ...................................................................... 3
6. IR Remote. ............................................................................................................... 7
7. IR Cable Pin Assignment. ...................................................................................... 8
8. IR Control System. .................................................................................................. 9
9. Video Wall. ............................................................................................................ 9
10. Multi-Viewer. ..................................................................................................... 10
11. EDID Management. ........................................................................................... 11
12. Web GUI User Guide. ......................................................................................... 13
13. RS-232 Control Command. ............................................................................... 25
14. Application Example. ........................................................................................ 38

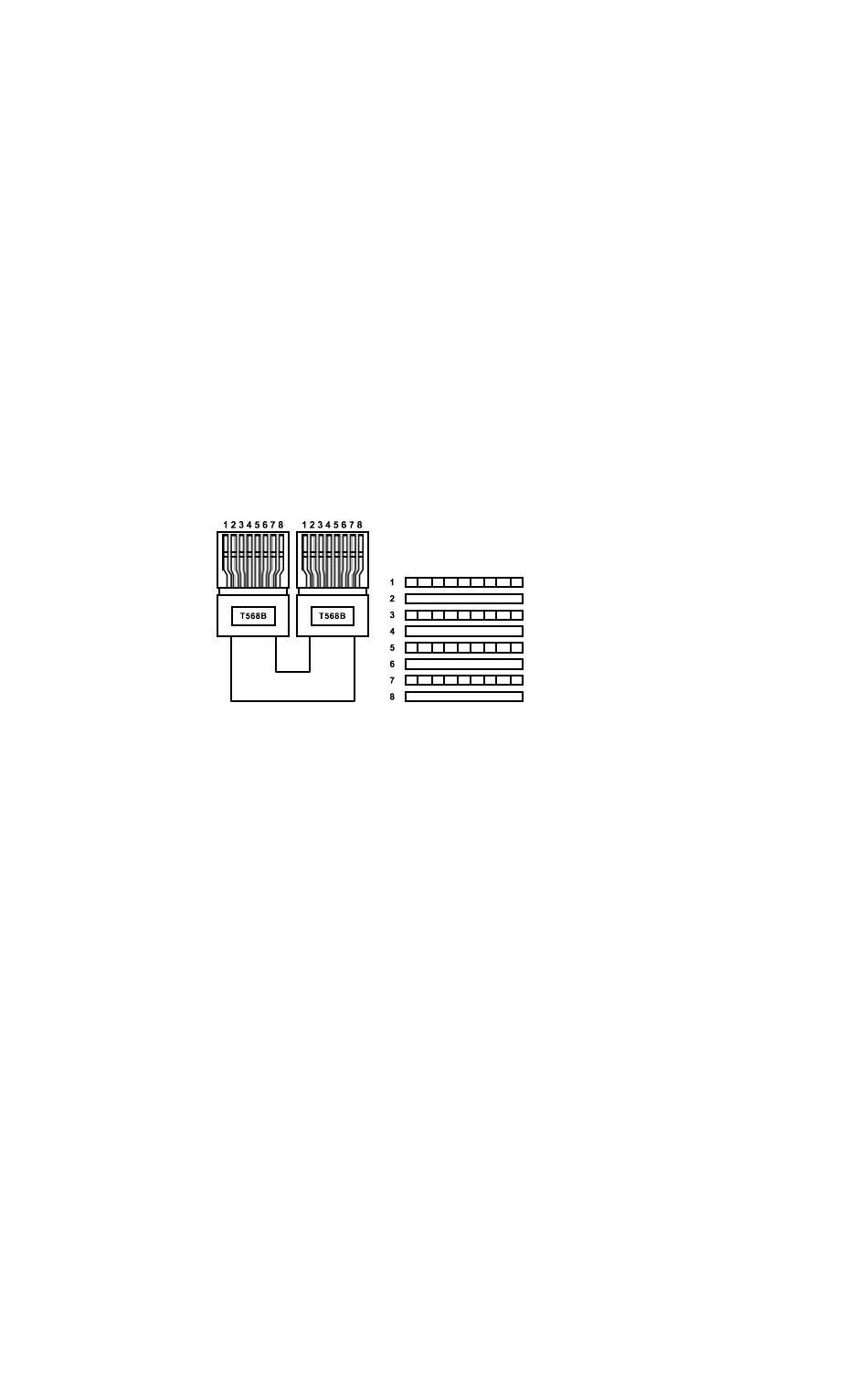

Direct Interconnection Method
White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown
