8. IR Control System

This product supports one-way IR control. When the matrix is connected to IR
receiver cable and IR blaster cable, you can control the corresponding input source
devices through IR signal transmission remotely at the side of display devices.
Four IR blaster cables connected to the IR outputs must be placed near the four
HDMI input sources. Four IR receiver cables connected to the IR inputs must be
placed near the display devices connected to the four HDMI outputs.
IR matrix follows the HDMI matrix. For example, if HDMI INPUT3 is selected for
HDMI OUT1 to output, the signal of IR OUT3 near the HDMI INPUT3 is emitted to
IR IN1 near the HDMI OUT1. Now you can use the IR remote of the DVD connected
to HDMI INPUT3 to control it at the side of the TV connected to HDMI OUT1.
Similarly, if HDMI INPUT1 is selected for all HDMI OUT1/2/3/4 to output, the signal of
IR OUT1 near the HDMI INPUT1 is emitted to IR IN1/2/3/4 near the four HDMI OUTs.

9. Video Wall

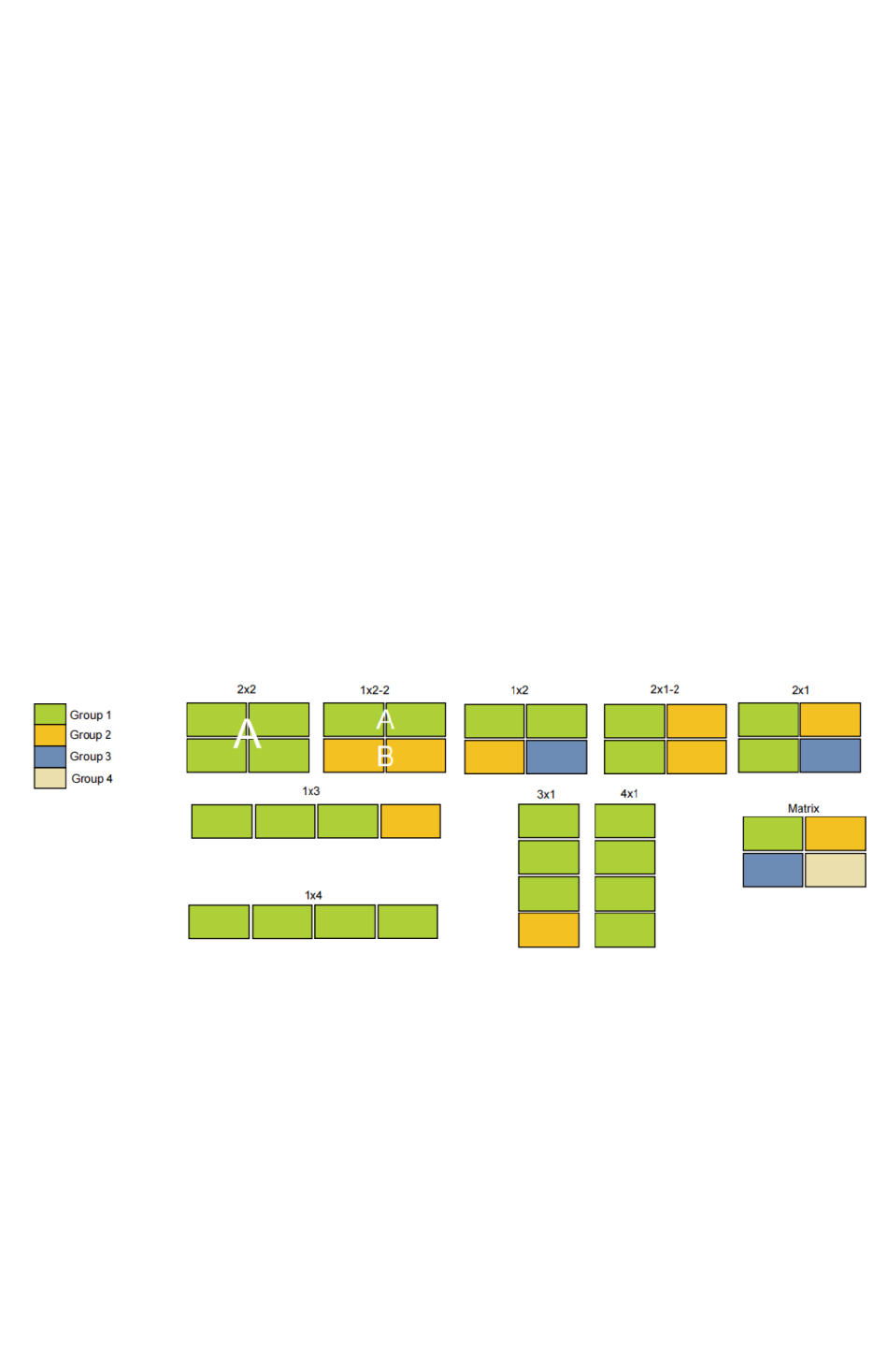

The matrix supports 10 categories of display modes as below:
User can select display modes via front panel buttons, Web GUI, and RS-232 commands.
