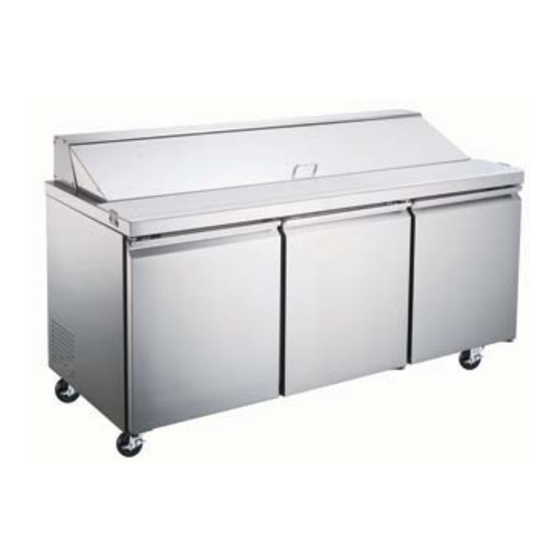

Refrigerated Sandwich Prep Units
Models PT-CN-0686-HC, 0920-HC, 1194-HC, 1524-HC, 1778-HC, 0711-HC,
0920-M-HC, 1194-H, 1537-HC, 1787-M-HC
Items 50045, 50034, 50046, 50047, 50048, 50049, 50129, 50050, 50051, 50130
Instruction Manual
Revised - 09/13/2023
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0920-HC and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan 0920-HC

Summary of Contents for Omcan 0920-HC

  • Page 1 Refrigerated Sandwich Prep Units Models PT-CN-0686-HC, 0920-HC, 1194-HC, 1524-HC, 1778-HC, 0711-HC, 0920-M-HC, 1194-H, 1537-HC, 1787-M-HC Items 50045, 50034, 50046, 50047, 50048, 50049, 50129, 50050, 50051, 50130 Instruction Manual Revised - 09/13/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model PT-CN-0686-HC / Model PT-CN-0920-HC / Model PT-CN-1194-HC Model PT-CN-1524-HC / Model PT-CN-1778-HC / Model PT-CN-0711-HC Model PT-CN-0920-M-HC / Model PT-CN-1194-H / Model PT-CN-1537-HC Model PT-CN-1787-M-HC Section Page Disclaimer -------------------------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------------------------- 4 - 5...

  • Page 3: Disclaimer

    D’hUMIDITé RelaTIve, eT SI le DRaIn De l’aPPaReIl n’eST PaS RaCCORDé DIReCTeMenT à Un DRaIn De PlanCheR. OMCan nO Se haCe ReSPOnSable De lOS DañOS CaUSaDOS POR fUgaS De agUa. la gaRanTía POR fUgaS De agUa qUeDa anUlaDa SI la TeMPeRaTURa aMbIenTe SUPeRa lOS 75°f y el...

  • Page 4: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 5: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 6 2 YEARS PARTS AND LABOUR / 5 YEARS PARTS ONLY ON COMPRESSOR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 7: Technical Specifications

    In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications REFRIGERATED PREP TABLES Model PT-CN-0686-HC PT-CN-0920-HC PT-CN-1194-HC PT-CN-1524-HC PT-CN-1778-HC Volume 160 L / 5.7 cu.ft. 258 L / 9.1 cu.ft.

  • Page 8: Installation

    Technical Specifications MEGA REFRIGERATED PREP TABLES Model PT-CN-0711-HC PT-CN-0920-M-HC PT-CN-1194-H PT-CN-1537-HC PT-CN-1787-M-HC Volume 160 L / 5.7 cu.ft. 258 L / 9.1 cu.ft. 269 L / 9.5 cu.ft. 424.8 L / 15 cu.ft. 553 L / 19.5 cu.ft. Temperature 0.5 - 5°C / 33 - 41°F Range Max Ambient 24°C / 75°F...
  • Page 9 Installation CABINET LOCATION GUIDELINES • Install the unit on strong and leveled surfaces. - Unit may make unpleasant noises if surface is uneven. - Unit may malfunction if surface is uneven. • Install the unit in an indoor, well-ventilated area. - Unit performs more efficiently in a well-ventilated area.

  • Page 10: Maintenance

    Installation DEFROST SYSTEMS Refrigerator coils are kept below the freezing point (32°F). During compressor down-time, the evaporator fan continues to circulate air through the evaporator coil. This air circulation raises the coil temperature above the freezing point, melting any accumulated frost. Run-off water is drained into the evaporator pan and evaporated. Freezer coils are defrosted electrically.

  • Page 11: Troubleshooting

    Maintenance CLEANING THE FAN BLADE AND MOTOR • If necessary, clean the fan blades and motor with a soft cloth, If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage. CLEANING THE INTERIOR OF UNIT •...
  • Page 12 Troubleshooting Condensing unit runs for long Excessive amount of warm product Allow adequate time for product to periods of time. placed in cabinet. cool down. Prolonged door opening or door Ensure doors are closed when not ajar. in use. Avoid opening doors for long periods of time.

  • Page 13: Controller Instructions

    Controller Instructions Digital controller model: PJEz for cooler Display and functions During normal operation, the controller displays the value of the probe set using parameter/4(=1 ambient probe, default, = 2 second probe, = 3 third probe).In addition, the display has LEDs that indicate the activation of the control functions (see Table 1), while the 3 buttons can be used to activate/deactivate some of the functions (see Table 2).
  • Page 14 Controller Instructions Table of Functions activated by the buttons - Models s, X, Y, C (Table 2) Button Normal Operation Start Up Pressing the Button Alone Pressed Together More than 3 sec: toggle ON/ Start/Stop ON/OFF continuous cycle Down More than 3 sec: start/stop Pressed For 1 sec.
  • Page 15 Controller Instructions • to display/set the values of the parameter displayed, press SET, then UP/DOWN and finally SET to confirm the changes (returning to the parameter menu). To save all the new values and exit the parameter menu, press SET for 3 s. To exit the menu without saving the changed values (exit by timeout) do not press any button for at least 60 s.

  • Page 16: Parts Breakdown

    Parts breakdown Model PT-Cn-0686-hC 50045...
  • Page 17 Parts breakdown Model PT-Cn-0686-hC 50045 Item No. Description Position Item No. Description Position Item No. Description Position AF068 Cabinet for 50045 AA118 Evaporator for 50045 AA208 Condenser Fan Blade for 50045 AF069 Door for 50045 AF077 Fan Motor Installation Panel for 50045 AA207 Condenser Fan Motor Cover for 50045 AB250...
  • Page 18 Parts breakdown Model PT-Cn-0920-hC 50034...
  • Page 19 Parts breakdown Model PT-Cn-0920-hC 50034 Item No. Description Position Item No. Description Position Item No. Description Position AO056 Cabinet for 50034 AO064 Evaporator Cover for 50034 AL932 Condenser Fan Motor for 50034 AO057 Right Door for 50034 AF100 Inner Drain Pan for 50034...
  • Page 20 Parts breakdown Model PT-Cn-1194-hC 50046...
  • Page 21 Parts breakdown Model PT-Cn-1194-hC 50046 Item No. Description Position Item No. Description Position Item No. Description Position AF092 Cabinet for 50046 AB259 Split Pin for 50046 AB213 Condenser for 50046 AF093 Right Door for 50046 AF099 Evaporator Cover for 50046 AB049 Condenser Fan Motor for 50046 AB197...
  • Page 22 Parts breakdown Model PT-Cn-1524-hC 50047...
  • Page 23 Parts breakdown Model PT-Cn-1524-hC 50047 Item No. Description Position Item No. Description Position Item No. Description Position AF108 Cabinet for 50047 AB259 Split Pin for 50047 AB213 Condenser for 50047 AF109 Right Door for 50047 AF115 Evaporator Cover for 50047 AB049 Condenser Fan Motor for 50047 AB363...
  • Page 24 Parts breakdown Model PT-Cn-1778-hC 50048...
  • Page 25 Parts breakdown Model PT-Cn-1778-hC 50048 Item No. Description Position Item No. Description Position Item No. Description Position AF123 Cabinet for 50048 AF128 Evaporator Cover for 50048 AB213 Condenser for 50048 AF093 Right Door for 50048 AF116 Inner Drain Pan for 50048 AB049 Condenser Fan Motor for 50048 AB197...
  • Page 26 Parts breakdown Model PT-Cn-0711-hC 50049...
  • Page 27 Parts breakdown Model PT-Cn-0711-hC 50049 Item No. Description Position Item No. Description Position Item No. Description Position AF068 Cabinet for 50049 AA118 Evaporator for 50049 AA208 Condenser Fan Blade for 50049 AF069 Door for 50049 AF139 Fan Motor Installation Panel for 50049 AA207 Condenser Fan Motor Cover for 50049 AB250...
  • Page 28 Parts breakdown Model PT-Cn-0920-M-hC 50129...
  • Page 29 Parts breakdown Model PT-Cn-0920-M-hC 50129 Item No. Description Position Item No. Description Position Item No. Description Position AO056 Cabinet for 50129 AO064 Evaporator Cover for 50129 AL932 Condenser Fan Motor for 50129 AO057 Right Door for 50129 AF100 Inner Drain Pan for 50129 AI391 Blade of Condenser Fan Motor for 50129 AO058...
  • Page 30 Parts breakdown Model PT-Cn-1194-h 50050...
  • Page 31 Parts breakdown Model PT-Cn-1194-h 50050 Item No. Description Position Item No. Description Position Item No. Description Position AF092 Cabinet for 50050 AB259 Split Pin for 50050 AB213 Condenser for 50050 AF093 Right Door for 50050 AF099 Evaporator Cover for 50050 AB049 Condenser Fan Motor for 50050 AB197...
  • Page 32 Parts breakdown Model PT-Cn-1537-hC 50051...
  • Page 33 Parts breakdown Model PT-Cn-1537-hC 50051 Item No. Description Position Item No. Description Position Item No. Description Position AF108 Cabinet for 50051 AB259 Split Pin for 50051 AB213 Condenser for 50051 AF109 Right Door for 50051 AF115 Evaporator Cover for 50051 AB049 Condenser Fan Motor for 50051 AB363...
  • Page 34 Parts breakdown Model PT-Cn-1787-M-hC 50130...
  • Page 35 Parts breakdown Model PT-Cn-1787-M-hC 50130 Item No. Description Position Item No. Description Position Item No. Description Position Compressor Unit Installation Board AF123 Cabinet for 50130 AF128 Evaporator Cover for 50130 AF106 for 50130 AO074 Right Door for 50130 AF116 Inner Drain Pan for 50130 AO082 Condenser for 50130 AB197...

  • Page 36: Electrical Schematics

    electrical Schematics Model PT-Cn-0686-hC 50045...
  • Page 37 Schematics Model PT-Cn-0920-hC 50034...
  • Page 38 electrical Schematics Model PT-Cn-1194-hC 50046...
  • Page 39 electrical Schematics Model PT-Cn-1524-hC 50047...
  • Page 40 electrical Schematics Model PT-Cn-1778-hC 50048...
  • Page 41 electrical Schematics Model PT-Cn-0711-hC 50049...
  • Page 42 electrical Schematics Model PT-Cn-0920-M-hC 50129...
  • Page 43 electrical Schematics Model PT-Cn-1194-h 50050...
  • Page 44 electrical Schematics Model PT-Cn-1537-hC 50051...
  • Page 45 electrical Schematics Model PT-Cn-1787-M-hC 50130...

  • Page 46: Notes

    notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 47: Warranty Registration

    Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 48 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
