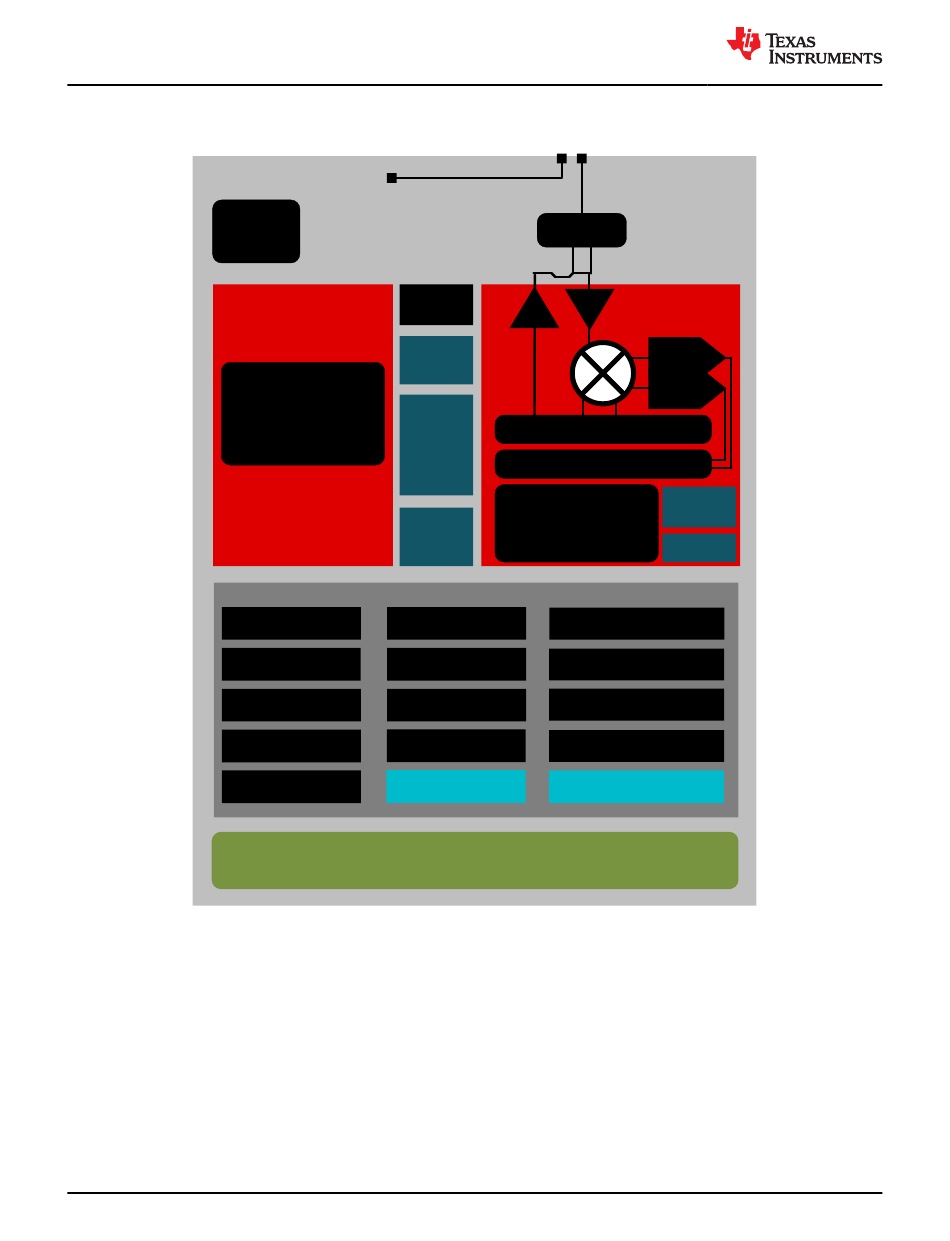

Figure 4-2 shows an overview of the CC2651R3SIPA hardware.
CC2651R3SIPA
48-MHz
Crystal
Oscillator
4 Submit Document Feedback
Integrated Antenna
cJTAG
Main CPU
40KB
ROM
® ®
Arm Cortex -M4
Up to
Processor
352KB
Flash
with 8KB
Cache
48 MHz
Up to
32KB
SRAM
General Hardware Peripherals and Modules
2
I C 4× 32-bit Timers
UART
2
I S Watchdog Timer
32 ch. µDMA
Up to 32 GPIOs
AES & TRNG
LDO, Clocks, and References
Optional DC/DC Converter
Figure 4-2. CC2651R3SIPA Hardware Overview
