www.ti.com

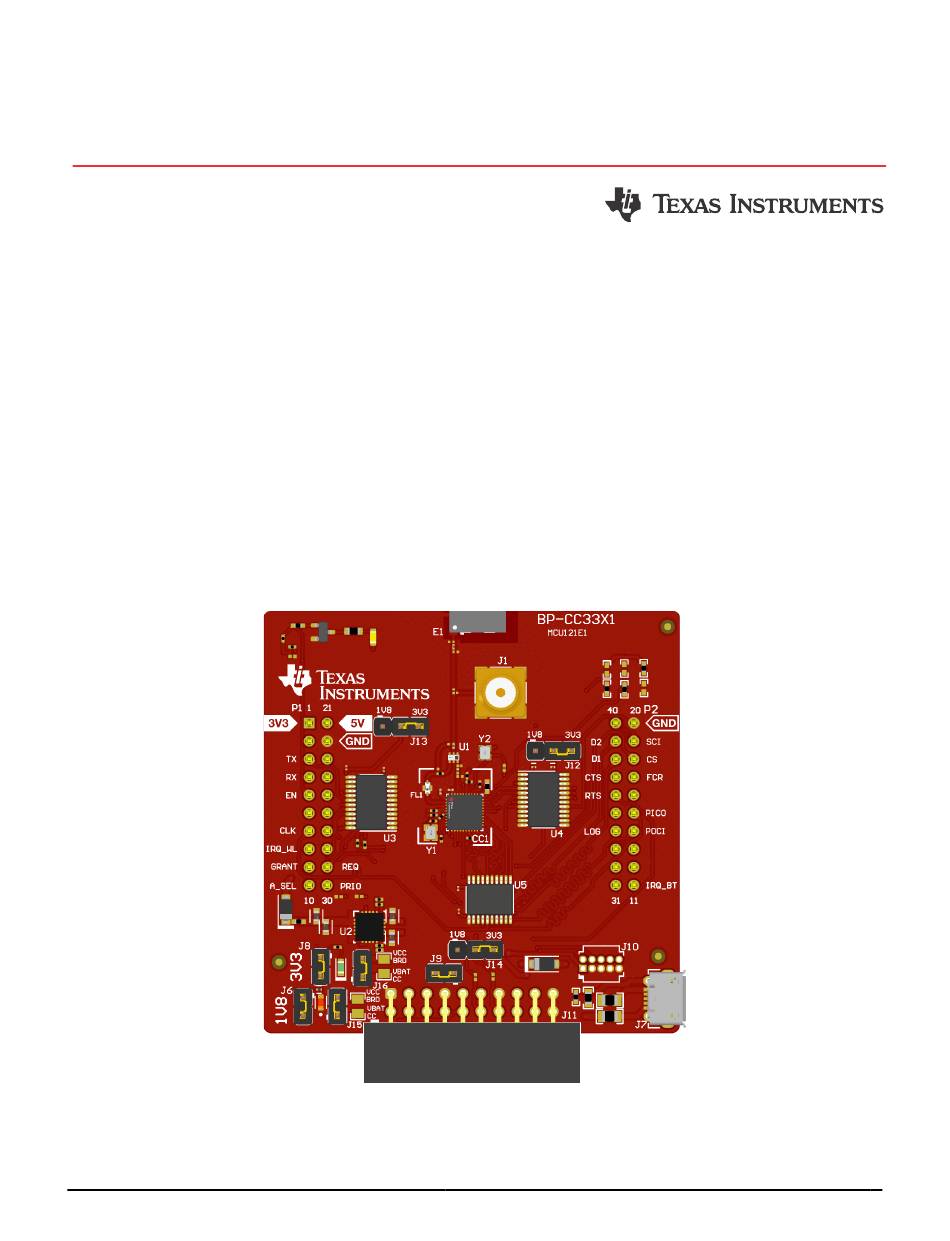

EVM User's Guide: BP-CC3351
SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low
Energy BoosterPack Plug-in Module
Description
The SimpleLink
™
CC3351 Dual-Band Wi-Fi 6
Bluetooth
®
low energy devices enable affordable,
reliable and secure connectivity in embedded
applications with a processor host running Linux

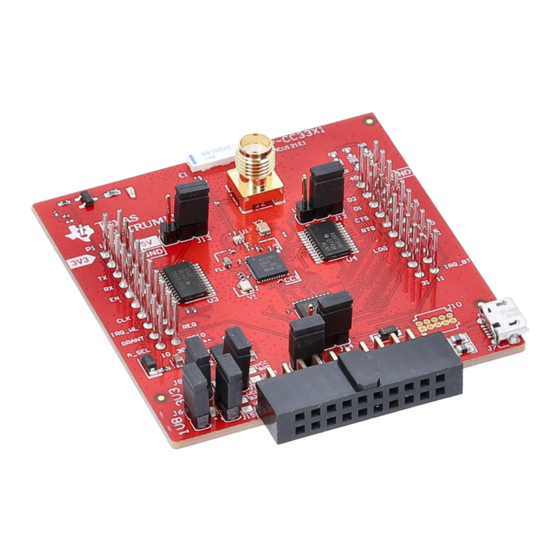

or an MCU host running RTOS. The CC3351
™
BoosterPack
plug-in module (BP-CC3351) is a test
and development board that can be easily connected
to TI LaunchPad
™
development kits or processor
boards; thus enabling rapid software development.
Note: The IC on this hardware is pre-production and
thus does not have the finalized CC3351 marking.
Features
•
CC3351 Dual-band Wi-Fi 6 and Bluetooth low
energy combo device
SWAU132 – APRIL 2024
Submit Document Feedback
•
Two 20-pin stackable connectors (BoosterPack
standard)
®
and
•
Onboard chip dual-band antenna
•
SMA/U.FL connector for conducted RF testing
•
Power from on board dual rail (3.3V and 1.8V)
®
LDO using USB or LaunchPad
•
3 level shifters for voltage translation (3.3V to
1.8V)
•
JTAG header pins for SWD interface with XDS110
or LP-XDS110
•
Jumper for current measurement on both power
supplies (3.3V and 1.8V) with provision to mount
0.1 ohm (0603) resistors for measurement with
voltmeter
•
32kHz oscillator for lower power evaluation
SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy
Copyright © 2024 Texas Instruments Incorporated
Description
1
BoosterPack Plug-in Module
Advertisement
Related Manuals for Texas Instruments SimpleLink CC3351
Summary of Contents for Texas Instruments SimpleLink CC3351
- Page 1 32kHz oscillator for lower power evaluation • CC3351 Dual-band Wi-Fi 6 and Bluetooth low energy combo device SWAU132 – APRIL 2024 SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy Submit Document Feedback BoosterPack Plug-in Module Copyright © 2024 Texas Instruments Incorporated...
-
Page 2: Kit Contents
The purpose of the BP-CC3351 is to showcase the hardware and software capabilities of the CC3351 device. The other components on the board are populated for testing and support of this main device. SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy SWAU132 – APRIL 2024... -
Page 3: Hardware Features
Jumper for current measurement on both power supplies (3.3V and 1.8V) with provision to mount 0.1 ohm (0603) resistors for measurement with voltmeter • 32kHz oscillator for lower power evaluation SWAU132 – APRIL 2024 SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy Submit Document Feedback BoosterPack Plug-in Module Copyright © 2024 Texas Instruments Incorporated... - Page 4 P1, P2 BoosterPack header 2 X 20 pins each connected to LaunchPad. See Section 2.2.3. SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy SWAU132 – APRIL 2024 BoosterPack Plug-in Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 5 P1.22 Board ground P1.23 Reserved P1.24 Reserved P1.25 Reserved P1.26 Reserved P1.27 Reserved P1.28 Reserved SWAU132 – APRIL 2024 SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy Submit Document Feedback BoosterPack Plug-in Module Copyright © 2024 Texas Instruments Incorporated...
- Page 6 P2.38 SDIO_D1_3V3 Input/Output SDIO data D1. P2.39 SDIO_D2_3V3 Input/Output SDIO data D2. P2.40 Reserved SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy SWAU132 – APRIL 2024 BoosterPack Plug-in Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 7 Board ground SWCLK nRESET UART_RX VCC_BRD_5V SWDIO UART_TX VCC_BRD_1V8 Figure 2-5. 20 pin LP-XDS110 Connector (J11) SWAU132 – APRIL 2024 SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy Submit Document Feedback BoosterPack Plug-in Module Copyright © 2024 Texas Instruments Incorporated...
- Page 8 3.3V supply. The same process can be used for observing the current on the 1.8V supply with J15. TI recommends this method for measuring the LPDS. Figure 2-6. Low Current Measurement SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy SWAU132 – APRIL 2024 BoosterPack Plug-in Module Submit Document Feedback Copyright ©...
- Page 9 2-8. The slow clock can also be generated internally to save on BOM. Slow Clock 40 MHz XTAL Figure 2-8. BP-CC3351 Clock Circuitry SWAU132 – APRIL 2024 SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy Submit Document Feedback BoosterPack Plug-in Module Copyright © 2024 Texas Instruments Incorporated...
- Page 10 Mounted 3.9pF Capacitor U.FL Connector Connector Diplexer 2.4Ghz BPF Figure 2-9. RF Path on BP-CC3351 SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy SWAU132 – APRIL 2024 BoosterPack Plug-in Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 11 Black (BBB). The BeagleBone Black is a low-cost, community-supported development platform as shown below. Figure 3-2. BeagleBone Black Board SWAU132 – APRIL 2024 SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy Submit Document Feedback BoosterPack Plug-in Module Copyright © 2024 Texas Instruments Incorporated...
- Page 12 BBB, the FTDI cable can get pinched between the BBB and adapter board, which can cause communication problems. (see Figure 3-6). SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy SWAU132 – APRIL 2024 BoosterPack Plug-in Module Submit Document Feedback...
- Page 13 2.5. Note that a rework can be needed. The user can download this tool from the CC330x product page on ti.com. SWAU132 – APRIL 2024 SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy Submit Document Feedback BoosterPack Plug-in Module Copyright © 2024 Texas Instruments Incorporated...
- Page 14 Power supply for the BP-CC3351 comes from the LP-XDS110 in this case, but there can be usage scenarios where additional current is needed from the USB connection (J7). LP-XDS110ET Figure 3-7. BP-CC3351 Connected to LP-XDS110 (ET) SimpleLink CC3351 Dual-Band Wi-Fi 6 and Bluetooth Low Energy SWAU132 – APRIL 2024 BoosterPack Plug-in Module Submit Document Feedback...
-
