7.1.3 Structure of the operating menu
The menu structure has been implemented according to VDMA 24574-1 and
complemented by Endress+Hauser-specific menu items.
User role Submenu
Operator (display Display/operat.
level)
Maintenance (user Parameters on
level) the topmost
menu level.
EF
DIAG
For an overview of the operating menu, see →  55 and →  60
7.2

Operation with local display

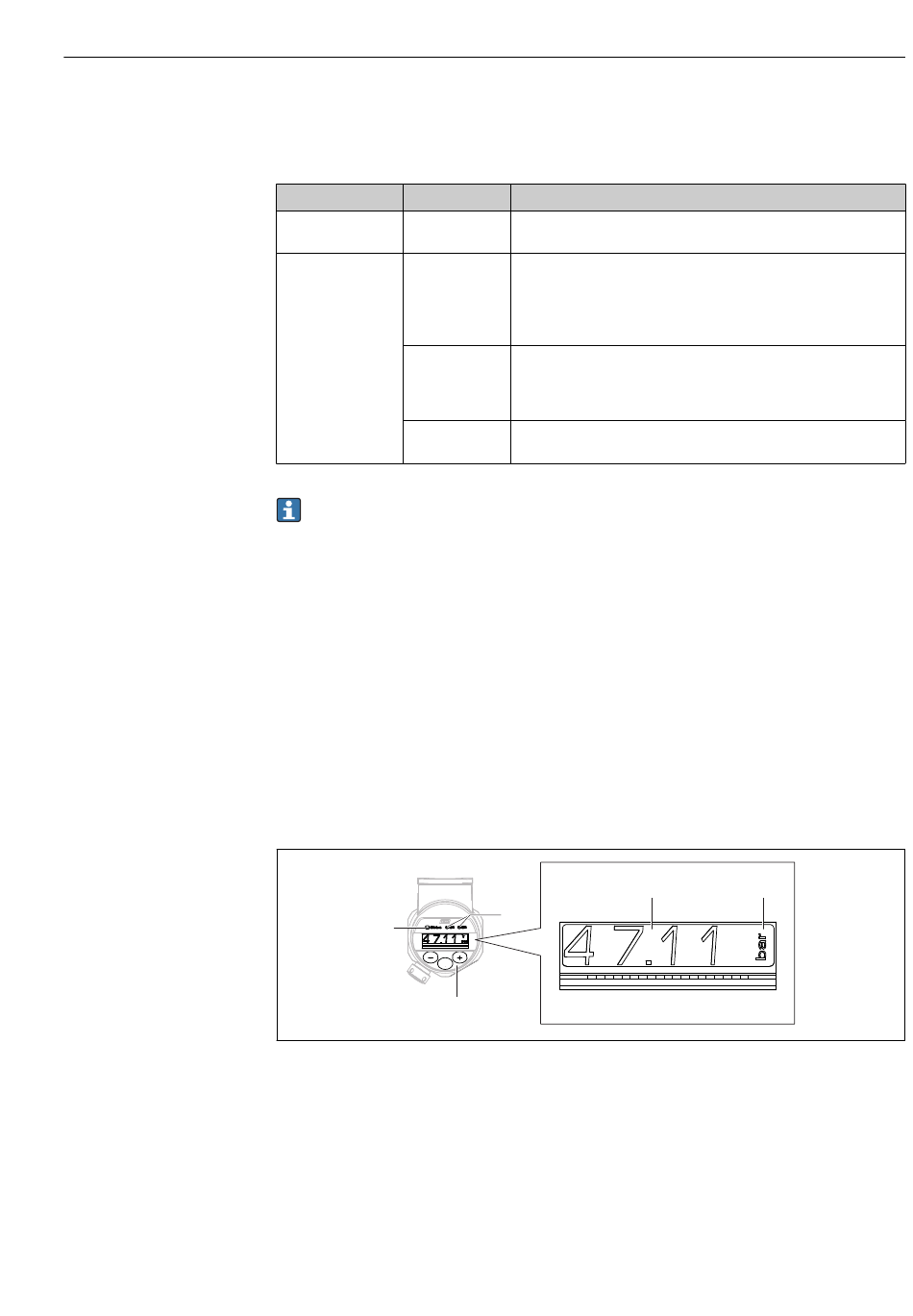

7.2.1 Overview
A 1-line liquid crystal display (LCD) is used for display and operation. The local display
shows measured values, fault messages and information messages and therefore supports
the user through each operating step.
The display is fixed to the housing and can be electronically rotated 180° (see parameter
description for "DRO" →  82). This ensures optimum readability of the local display and
allows the device to be mounted upside down also.
During measuring operation, the display shows measured values, fault messages and
notice messages. In addition, it is possible to switch to menu mode via the operating keys.
2
E
1 Operating keys
2 Status LED
3 Switch output LEDs
4 Measured value
5 Unit
The second switch output is not used for the device version with current output.
Meaning/use
Display of measured values, fault and information messages
Contains all the parameters that are needed to commission
measuring operations. A wide range of parameters, which can be
used to configure a typical application, is available at the start. After
making settings for all these parameters, the measuring operation
should be completely configured in the majority of cases.
The "EF" submenu (Extended Functions) contains additional
parameters which allow more accurate configuration of the
measurement, conversion of the measured value and scaling of the
output signal.
Contains all the parameters that are needed to detect and analyze
operating errors.
3
1
Operation options
4 5
A0022121
