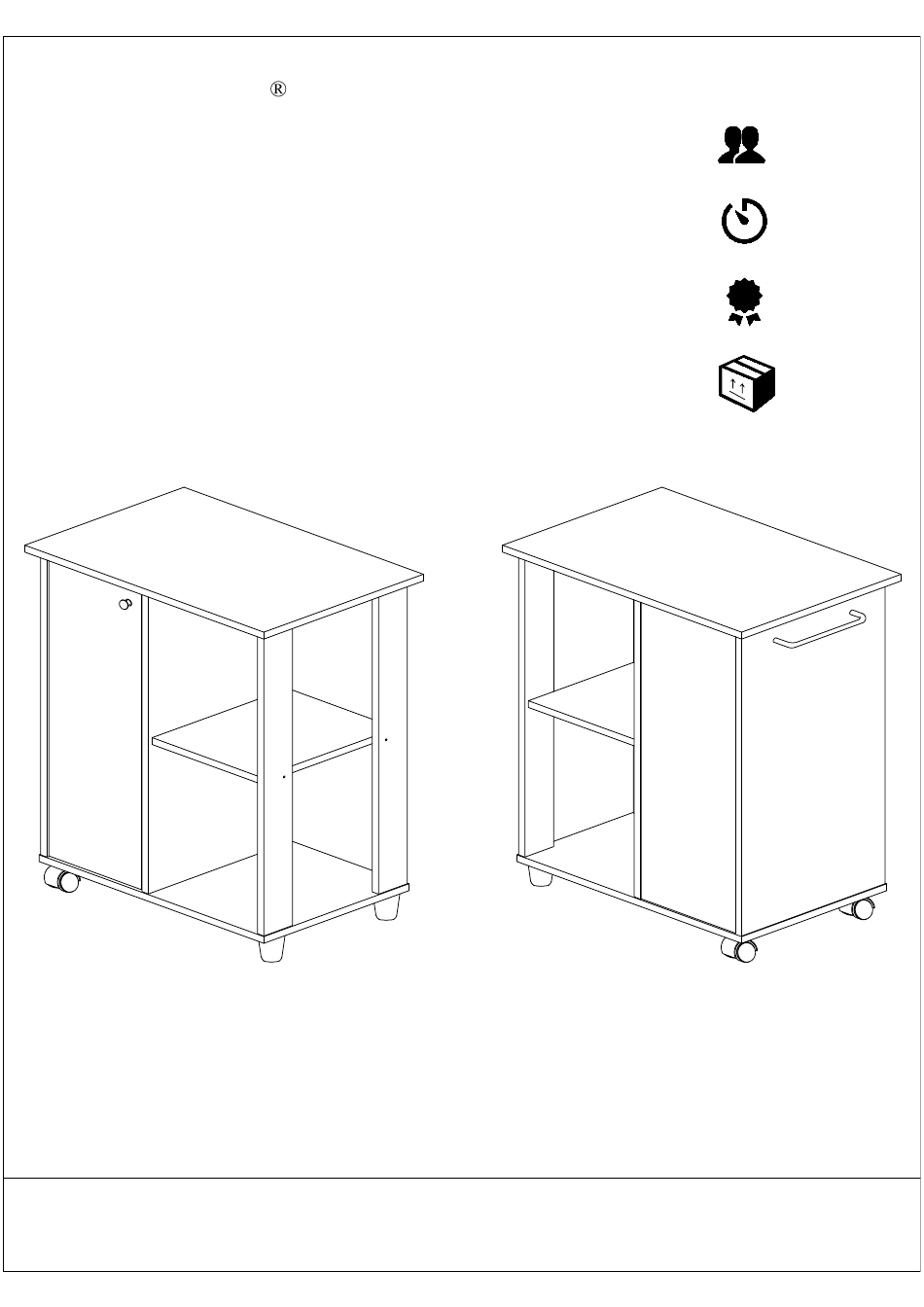

HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HIK 73

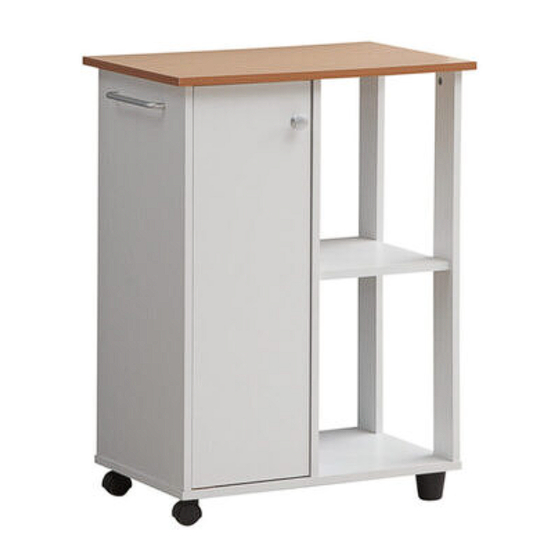

Kitchen Trolley
FRONT VIEW
Product Dimensions : Height 31.5'' x Width 23.6'' x Depth 15.7''
www.Hodedah.com
2 people
70 mins
1 YR LTD
1 Box
REAR VIEW
1 | Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIK 73 and is the answer not in the manual?

Questions and answers

Related Manuals for Hodedah HIK 73

Summary of Contents for Hodedah HIK 73

  • Page 1 HODEDAH Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 70 mins ITEM # HIK 73 1 YR LTD Kitchen Trolley 1 Box REAR VIEW FRONT VIEW Product Dimensions : Height 31.5'' x Width 23.6'' x Depth 15.7'' 1 | Page www.Hodedah.com...
  • Page 2 WARRANTY Hodedah warrants this product to be free from defect in materials and workmanship and agrees to remedy and such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.

  • Page 3: Product Care And Maintenance

    HODEDAH Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes. if your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.

  • Page 4: Hardware List

    HODEDAH Hardware List M8X25MM Minifix Bolt Minifix Nut M4X32MM Minifix Cap M3.5X16MM M4X45MM Handle U77192 M4X19MM Handle M4X25MM 9200 (PVC) MT Stopper Magnet Plate M3.5X12MM 3.5kg Magnet Shelf Support Allen Key PVC Leg 55MM Caster (w/out Stopper) Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need.

  • Page 5: Parts List

    HODEDAH Parts List 600x400x15mm 714x360x15mm 714x72x15mm 714x72x15mm 714x360x15mm 714x238x15mm 340x273x15mm 564x364x15mm 237x300x15mm 707x232x15mm 5 | Page www.Hodedah.com...
  • Page 6 HODEDAH The Breakdown... II) Door & Drawer : I) Main Unit : 9 x2 6 | Page www.Hodedah.com...
  • Page 7 HODEDAH Step 1 WOOD DOWEL M8x25MM 1. Insert 22 x wood dowels (A) into panel (2,3,4,5,6 & 9). 7 | Page www.Hodedah.com...
  • Page 8 HODEDAH Step 2 MINIFIX BOLT 3.5KG MAGNET 1. Tighten 6x minifix bolt (B1) onto bottom view of top panel (1) and 2x minifix bolt (B1) onto each of side panel (2 & 3) using screwdriver. 2. Then, fix magnet (I2) onto bottom view of top panel (1) (As Shown).
  • Page 9 HODEDAH Step 3 HANDLE SCREW M4X19MM HANDLE U77192 1. Tighten handle (F1) onto side panel (2) using 2x Handle Screw M4x19mm (F2) with srewdriver. 9 | Page www.Hodedah.com...

  • Page 10: Front View

    HODEDAH Step 4 CB SCREW M4X25MM CB SCREW M3.5X12MM HANDLE 9200 (PVC) MAGNET PLATE (1 HOLE) FRONT VIEW BACK VIEW 1. Tighten handle (G1) onto door panel (2) with CB Screw M4x25mm (G2) using screwdriver. 2. Fix metal plate (I1) onto door panel (2) with CB Screw M3.5x12mm (I3) using screwdriver.

  • Page 11: Bottom View

    HODEDAH Step 5 CB SCREW M4X45MM BOTTOM VIEW 1. At bottom view position, fix center panel (5) to middle panel (7) with 2x CB Screws M4x45mm (E) using screwdriver. 11 | Page www.Hodedah.com...
  • Page 12 HODEDAH Step 6 CB SCREW M4.5X45MM BOTTOM VIEW 1. Fix panel (3 & 4) to middle panel (7) with 2x CB Screws M4.5x45mm (E) using screwdriver. 12 | Page www.Hodedah.com...
  • Page 13 HODEDAH Step 7 MINIFIX NUT MINIFIX CAP ALLEN KEY BOTTOM VIEW 1. Tighten 2x minifix nut (B2) on back panel (6) 2x through hole (As Shown) using Allen Key (K) to fix side panel (2) and back panel (6) together.
  • Page 14 HODEDAH Step 8 MINIFIX NUT MINIFIX CAP ALLEN KEY BOTTOM VIEW 1. Tighten 2x minifix nut (B2) on back panel (6) 2x through hole (As Shown) using Allen Key (K) to fix side panel (5) and back panel (6) together.
  • Page 15 HODEDAH Step 9 CB SCREW M4X45MM BOTTOM VIEW 1. Fix bottom panel (8) to panel (2,3,4 & 5) with 6x CB Screw M4x45mm (E) using screwdriver. 15 | Page www.Hodedah.com...
  • Page 16 HODEDAH Step 10 CB SCREW M3.5X16MM CB SCREW M4X32MM CASTER (W/OUT STOPPER) PVC LEG 55MM BOTTOM VIEW 1. At bottom view position, fix 2x Caster (M) to left side of bottom panel (8) with 8x CB Screws M3.5x16mm (C) using screwdriver.
  • Page 17 HODEDAH Step 11 MINIFIX NUT MINIFIX CAP ALLEN KEY 1. Place top panel (1) onto panel (2,3,4 & 5) and tighten it using 6 x Minifix Nut (B2), onto thru-holes as shown at panel (2,3,4 & 5) with Allen Key (K).
  • Page 18 HODEDAH Step 12 SHELF SUPPORT 1. Insert 8x Shelf Support (J) onto panel (2 & 5). 2. Take 2x shelf panel (9) and slide in on top side of 8x Shelf Support (J) (As Shown). 18 | Page www.Hodedah.com...
  • Page 19 HODEDAH Step 13 Final step... CB SCREW M3.5X16MM MT STOPPER SLOT IN DOOR PANEL 1. Insert 1 x MT Stopper (H) into the holes at top panel (1) bottom side. 2. Insert 1 x MT Stopper (H) into the holes at bottom panel (8) top side.
  • Page 20 HODEDAH Job Complete... Enjoy & Thank you for purchasing from Hodedah! 20 | Page www.Hodedah.com...
  • Page 21 Failure to detach this restraint before moving furniture may result in injury and damage. If the safety kit is not in the box, please contact our consumer service team at Tel. 1 (718) 456 0505 or Email Support@Hodedah.com in order to obtain one before using the furniture.
  • Page 22 HODEDAH FITTING OF ANTI-TIP SAFETY STRAP STEP 1: Attach the mounting bracket to the furniture in the solid part below the top panel a few inches away from the side of the unit. Screw through the smallest hole of STEP 2:...
