Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HIK 77-T (MOP)
MICROWAVE CART
FRONT VIEW
Product Dimensions : Height 23.6'' x Width 45.3'' x Depth 15.6''
www.Hodedah.com
REAR VIEW
2 people
70 mins
1 YR LTD
1 Box
1 | Page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HIK 77-T (MOP)
Summary of Contents for Hodedah HIK 77-T (MOP)

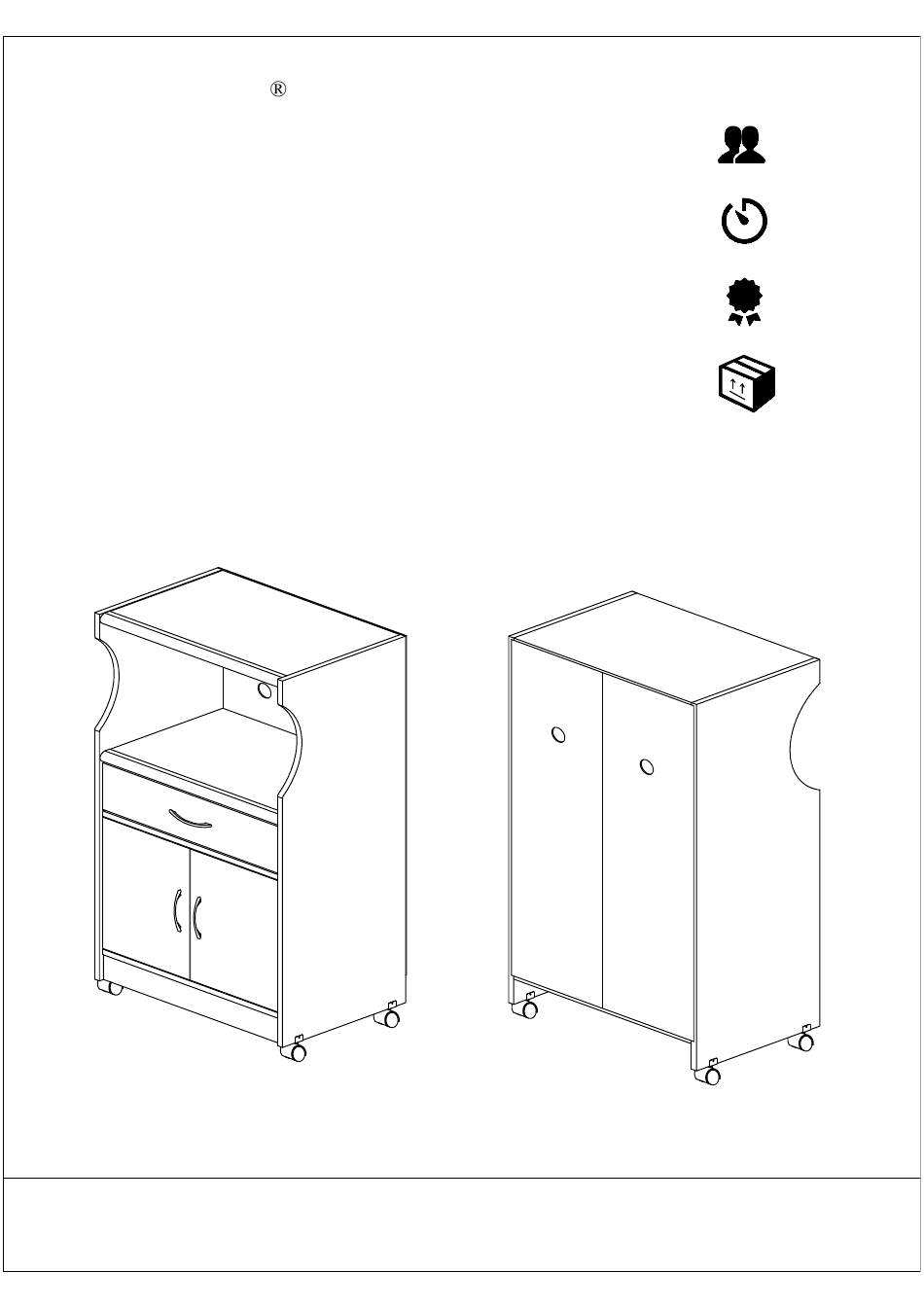

- Page 1 HODEDAH Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 70 mins ITEM # HIK 77-T (MOP) 1 YR LTD MICROWAVE CART 1 Box REAR VIEW FRONT VIEW Product Dimensions : Height 23.6'' x Width 45.3'' x Depth 15.6'' 1 | Page www.Hodedah.com...
- Page 2 WARRANTY Hodedah warrants this product to be free from defect in materials and workmanship and agrees to remedy and such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.
- Page 3 HODEDAH Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes. if your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.
- Page 4 HODEDAH Hardware List M6x50MM CSK CAP M4X38MM Moon M3.5x16MM M4x20MM Handle 96MM Allen Key Metal Piece Shelf Support 3.5KG Door Magnet (1 Hole) Support Spring M3X12MM M8x25MM Nail 5/8 Minifix Nut Drawer Slide 14'' Minifix Bolt Minifix Cap Caster Caster...
- Page 5 HODEDAH Hardware List Caster's Screw Caster's Nut Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2. Check and measure the bolts before applying them to parts.
- Page 6 HODEDAH Parts List 1100x394x15mm 568x362x15mm 568x30x30mm 568x362x15mm 568x76x15mm 568x340x15mm 568x384x15mm 568x76x15mm 1100x394x15mm 1018x297x2.5mm 560x140x15mm 350x90x15mm 512x60x15mm 522x350x2.5mm 394x278x15mm 394x278x15mm 6 | Page www.Hodedah.com...
- Page 7 HODEDAH The Breakdown... II) Door & Drawer : I) Main Unit : 7 | Page www.Hodedah.com...
- Page 8 HODEDAH Step 1 WOOD DOWEL M8x25MM MINIFIX BOLT 1. Insert 18 x wood dowels (I) into panel (2,4,5,7 & 8). 2. Tighten 6 x minifix bolt (K2) into 2 x panel (3). 8 | Page www.Hodedah.com...
- Page 9 HODEDAH Step 2 DRAWER SLIDE ''14 CB SCREW M3.5X16MM DOOR SUPPORT SPRING 1. Place drawer slide (L1) onto 3 holes area shown at right view side panel (1). Then tighten it with 3 x cb screws M3.5x16mm (C). 2. Place drawer slide (L1) onto 3 holes area shown at left view side panel (9). Then tighten it with 3 x cb screws M3.5x16mm (C).
- Page 10 HODEDAH Step 3 MOON HANDLE 96MM CB SCREW M4X20MM 3.5KG MAGNET (1 HOLE) 1. Tighten 4 x cb screws M4x20mm (D2) from door panel (15 & 16) back side into the 2 x handle (D1) 's holes. 2. Insert 2 x magnet (G2) into panel (5) bottom side.
- Page 11 HODEDAH Step 4 SHELF SUPPORT METAL PIECE CB SCREW M3X12MM 1. Fix & tighten 2 x metal piece (G1) by using 2 x cb screws M3x12mm (G3) to door panel (15 & 16) as shown. 2. Insert 4 x shelf support (F) into panel (1 & 9).
- Page 12 HODEDAH Step 5 CB SCREW M4X38MM DRAWER SLIDE ''14 CB SCREW M3.5X16MM NAIL 5/8 MOON HANDLE 96MM COMPLETED 1. Place 2 x panel (12) next to each side of panel (11&13). (As Shown). Then tighten 8 x screws (B) from the sides of panel (12) to the edges of panel (11&13) with screwdriver.
- Page 13 HODEDAH Step 6 ALLEN KEY MINIFIX NUT MINIFIX CAP 1. Place panel (3) to panel (2 & 4) by using 6 x minifix nut (K1), onto 3 thru-holes as shown at panel (2 & 4) with allen key (E) to tighten it. After that insert 6 x cap (K3).
- Page 14 HODEDAH Step 7 CSK CAP WOOD M6X50MM CSK CAP ALLEN KEY 1. Fix panel (2,4,5 & 7) to panel (1) by using dowels (I) onto non-thru at panel (1) and tighten 7 x csk M6x50mm (A1) from the thru-holes of panel (1) with allen key (E).
- Page 15 HODEDAH Step 8 1. Fix panel (8) to panel (1) by uisng dowels (I) onto thru-holes as shown at panel (1). 15 | Page www.Hodedah.com...
- Page 16 HODEDAH Step 9 CSK CAP WOOD M6X50MM CSK CAP ALLEN KEY 1. Fix panel (9) to panel (2,4,5,7 & 8) by using dowels (I) onto non-thru at panel (2,4,5,7 & 8) and tighten 7 x csk M6x50mm (A1) from the thru-holes of panel (9) with allen key (E).
- Page 17 HODEDAH Step 10 CASTER WITH STOPPER CASTER'S NUT CASTER W/OUT STOPPER CASTER'S SCREW 1. Take caster (M1 & M2) insert with (One By One) and push the caster's screw (M3) thru from outside to inside, then tighten the nut (M4) as shown for all 4 casters.
- Page 18 HODEDAH Step 11 NAIL 5/8 1. At face down position, place 2 x panel (10) onto the back of the main unit and align it properly for nailing. Use hammer to nail the nails one by one on the line drawn and at center of 4 side edges.
- Page 19 HODEDAH Step 12 1. Slide in the drawer (11) by slotting the rollers at each and of drawer slide (L2) onto the rail of drawer slide (L1) fixed at side panel (1 & 9). Then push the drawer in slowly.
- Page 20 HODEDAH Step 13 Final step... & & 1. Press the door support spring (H) at the panel (15 & 16) top side. After that, inside to the holes at panel (5). 2. Press the door support spring (H) at the panel (15 & 16) bottom side. After that, inside to the holes at panel (7).
- Page 21 HODEDAH Job Complete... Enjoy & Thank you for purchasing from Hodedah! 21 | Page www.Hodedah.com...
- Page 22 Failure to detach this restraint before moving furniture may result in injury and damage. If the safety kit is not in the box, please contact our consumer service team at Tel. 1 (718) 456 0505 or Email Support@Hodedah.com in order to obtain one before using the furniture.
- Page 23 HODEDAH FITTING OF ANTI-TIP SAFETY STRAP STEP 1: Attach the mounting bracket to the furniture in the solid part below the top panel a few inches away from the side of the unit. Screw through the smallest hole of STEP 2:...
