Summary of Contents for Hodedah HIK 77

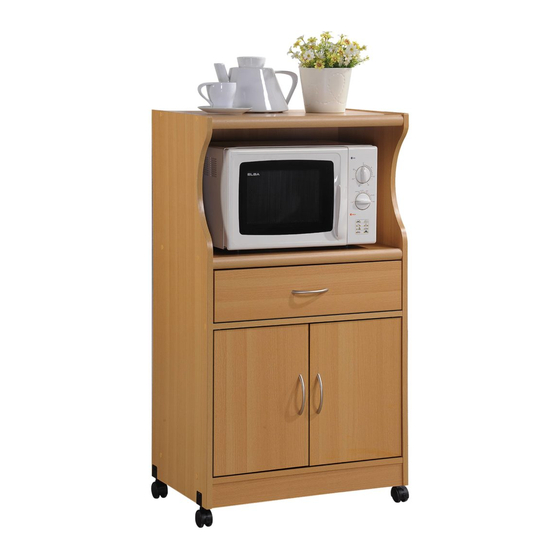

- Page 1 Hodedah www.hodedah.com support @hodedah.com HIK 77 '' X D16 '' X H42...
-
Page 2: Table Of Contents
Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST PLASTIC DOWEL M8 X 25MM CB SCREW M3.5 X 12MM 902 MAGNET PLATE 902 MAGNET CB SCREW M4 X 25MM CB M3 X 12MM CB SCREW M4 X 35MM CSK CAP M6 X 40MM... - Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
- Page 4 - Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included.
-
Page 5: Plastic Dowel M8 X 25Mm
Hodedah www.hodedah.com support @hodedah.com STEP 1 DRAWER SLIDE 14" PLASTIC DOWEL M8 X 25MM CB SCREW M3.5 X 12MM PVC SHELF SUPPORT Left view Right view Left view Right view - Insert 18 x Plastic dowel (A) into panels (2), (3), (4), (5) & (7) using a plastic hammer. -
Page 6: Door Support Spring
Hodedah www.hodedah.com support @hodedah.com STEP 2 MAGNET PLATE DOOR SUPPORT SPRING 902 MAGNET MOON HANDLE IP994 (96MM) C/B SCREW M3 X 12MM P/H SCREW M4 X 20MM Bottom view Front view Front view Back view - Insert 2 x 902 Magnet (O) into panels (3) using a plastic hammer (Knock gently). -
Page 7: Caster With Stopper
Hodedah www.hodedah.com support @hodedah.com STEP 3 CSK CAP M6 X 40MM CASTER WITH STOPPER ALLEN KEY CASTER WITHOUT STOPPER CASTER BOLT CASTER NUT - Attach panel (1) to panels (2), (3), (4), (5) & (7). - Insert 7 x CSK Cap screw (E) & cap (M) into panel (1) and tighten with a Allen Key (I). -
Page 8: Drawer Slide 14
Hodedah www.hodedah.com support @hodedah.com STEP 4 POWER NAIL 6/8" CB SCREW M3.5 X 12MM MOON HANDLE IP994 (96MM) CB SCREW M4 X 25MM P/H SCREW M4 X 36MM CB SCREW M4 X 35MM DRAWER SLIDE 14' - Insert 2 x CB Screw M4 x 25mm (C) into panel (10) using a Phillips head screwdriver. - Page 9 Hodedah www.hodedah.com support @hodedah.com STEP 5 POWER NAIL 6/8" Back view BOTTOM - Fix 34 x Power nail (F) into panels (14) using a hammer. - Slide panel (15) inside the kitchen cabinet. - Insert the Door support spring (H) at the panel (9) top into the hole at bottom of panel (3).
- Page 10 Hodedah www.hodedah.com support @hodedah.com STEP 6 - Slide Drawer box into the Drawer slide at panel (1), (6) & (11). Job Complete ! In the interest of our environment please dispose of all packaging throughtfully.
