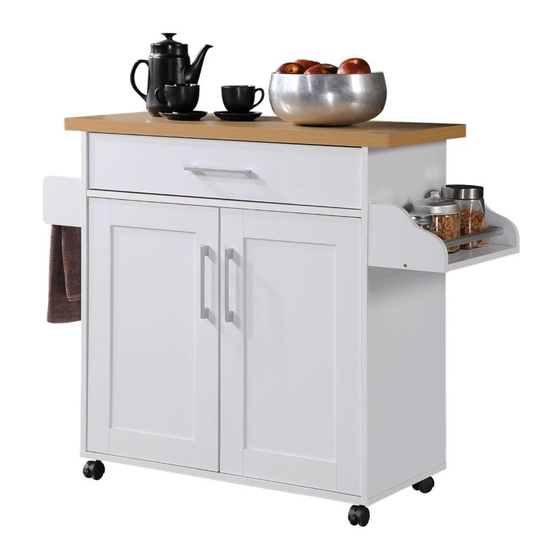

- Page 1 Hodedah www.hodedah.com support @hodedah.com HIK 78-MOP '' / 44 '' X D15 " X H35 "...
- Page 2 Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST HANDLE 2379 (160MM) - PVC PLASTIC DOWEL M8 X 25MM P/H SCREW M4 X 24MM CB SCREW M3 X 12MM P/H SCREW M4 X 40MM CB SCREW M3.5 X 12MM CB SCREW M3.5 X 16MM...
- Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
- Page 4 - Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included.
- Page 5 Hodedah www.hodedah.com support @hodedah.com STEP 1 PLASTIC DOWEL M8 X 25MM MINIFIX 5654 PVC SHELF SUPPORT LEFT VIEW RIGHT VIEW BOTTOM VIEW - Insert 22 x Plastic dowel (A) into panels (1), (3), (4), (5), (6), (7) & (8) using a plastic hammer.
- Page 6 Hodedah www.hodedah.com support @hodedah.com STEP 2 HANDLE 2379 (160MM) - PVC CB SCREW M3 X 12MM P/H SCREW M4 X 24MM CB SCREW M3.5 X 12MM DRAWER SLIDE 14" DOOR SUPPORT SPRING 902 MAGNET PLATE LEFT VIEW RIGHT VIEW FRONT VIEW...
- Page 7 Hodedah www.hodedah.com support @hodedah.com STEP 3 ALLEN KEY CSK CAP M6 X 40MM 902 MAGNET ALUMINIUM PIPE (380MM) BOTTOM VIEW - Insert 2 x Magnet (J2) to Panel (3) using a plastic hammer (Knock gently). - Attach Panel (2) into Panel (1). Insert Csk Cap M6 x 40 (G) by using Allen key (Q).
- Page 8 Hodedah www.hodedah.com support @hodedah.com STEP 4 CB Screw M3.5 X 16MM PLATE CASTER WITHOUT STOPPER CSK CAP M6 X 40MM ALLEN KEY PLATE CASTER WITH STOPPER - Attach panel (4) to panels (2), (3). - Insert 3 x CSK Cap screw (G) & Cap (L) into panel (4) and tighten with a Allen Key (Q).
- Page 9 Hodedah www.hodedah.com support @hodedah.com STEP 5 CB SCREW M3.5 X 12MM HANDLE 2379 (160MM) - PVC CB SCREW M4 X 25MM P/H SCREW M4 X 40MM CB SCREW M4 X 35MM POWER NAIL " MINIFIX 5654 DRAWER SLIDE 14" ALLEN KEY...
- Page 10 Hodedah www.hodedah.com support @hodedah.com STEP 6 POWER NAIL " BOTTOM 10 & 11 10 & 11 - Fix 30 x Power nail (N) into Panels (16) using a hammer. - Slide panel (17) inside the kitchen cabinet. - Insert the Door support spring (I) at the panel (10) top into the hole at bottom of panel (3).
