Hodedah
www.hodedah.com
support @hodedah.com

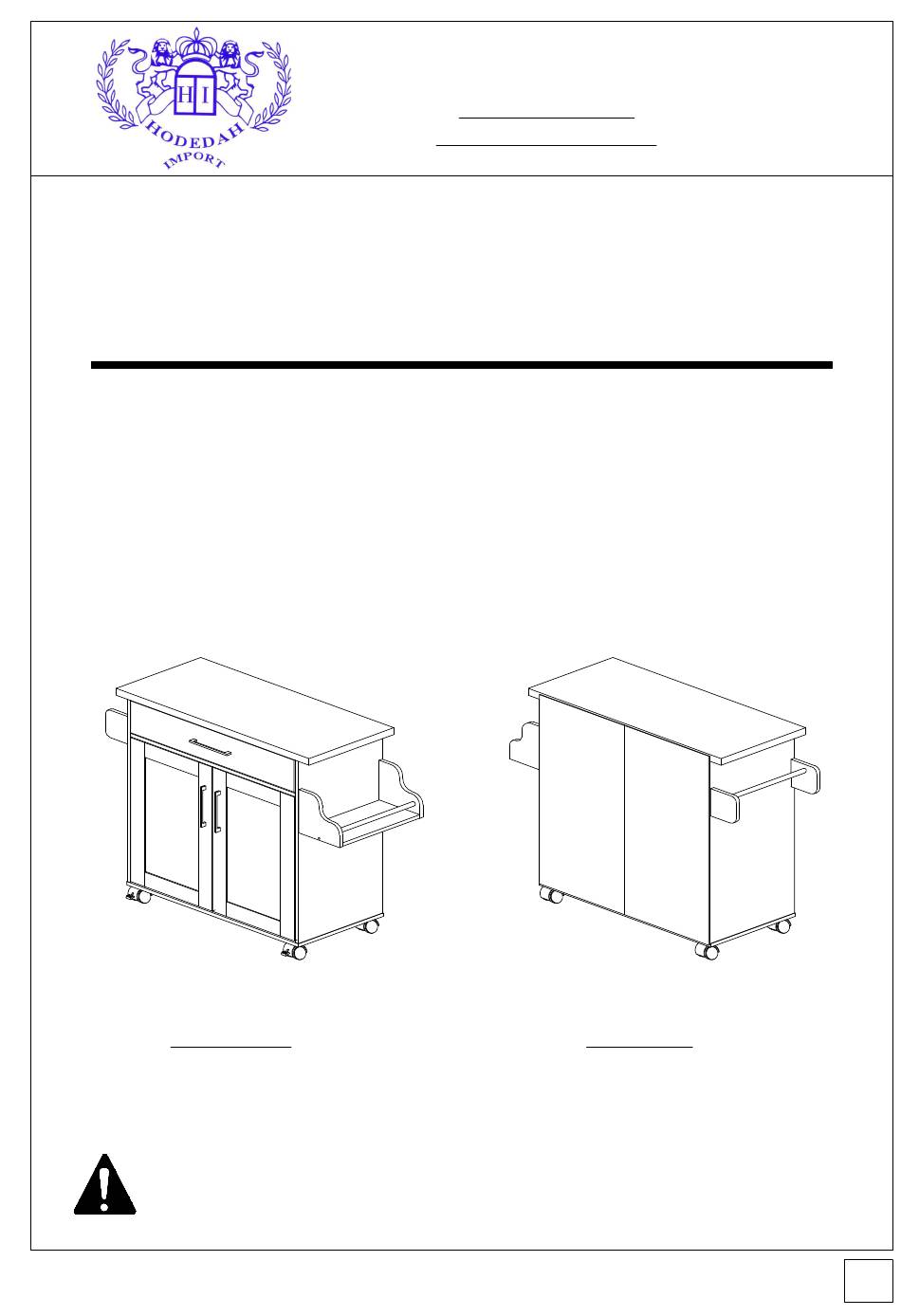

ASSEMBLY INSTRUCTION

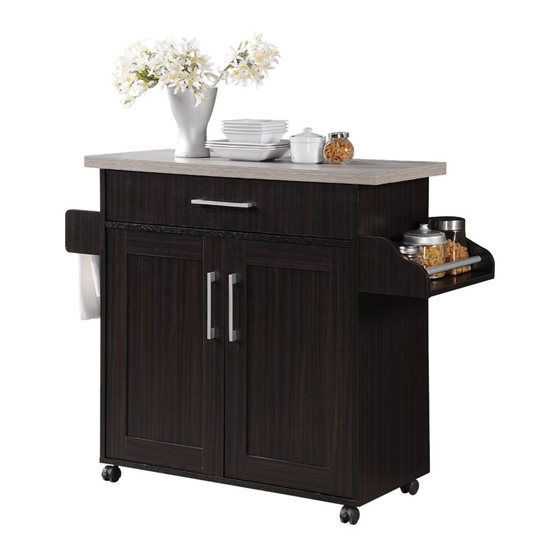

HI K78 (MICROWAVE CART)
~ Before assembly, please read the instructions ~
~ Keep these instructions for future reference ~
~ Follow these steps to assemble the Microwave Cart ~
FRONT VIEW
BACK VIEW
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT INFORMATION ABOUT ASSEMBLY AND
SAFETY. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HI K78
Summary of Contents for Hodedah HI K78
- Page 1 Hodedah www.hodedah.com support @hodedah.com ASSEMBLY INSTRUCTION HI K78 (MICROWAVE CART) ~ Before assembly, please read the instructions ~ ~ Keep these instructions for future reference ~ ~ Follow these steps to assemble the Microwave Cart ~ FRONT VIEW BACK VIEW THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT INFORMATION ABOUT ASSEMBLY AND SAFETY.
- Page 2 Hodedah www.hodedah.com support @hodedah.com Parts Left Side Panel Bottom Panel 1 pc 1 pc 800 x 394 x 15mm 800 x 395 x 15mm The parts of the product are packed in one box. There are inner box(es) or package(s) that included components...
-
Page 3: Hardware And Accessories
Hodedah www.hodedah.com support @hodedah.com Hardware And Accessories Plastic Dowel CB Screw CB Screw CB Screw CB Screw CB Screw M8 x 25mm M3 x 12mm M3.5 x 12mm M3.5 x 16mm M4 x 25mm M4 x 35mm 22 pcs 2 pcs... - Page 4 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
-
Page 5: Helpful Hints
- Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included. -
Page 6: Pre-Assembly
Hodedah Hodedah www.hodedah.com www.hodedah.com support @hodedah.com support @hodedah.com Pre - Assembly Pre - Assembly Place the drawer slide A 19 onto the 3 marking area shown at side panel A. Then tighten it with 3 screw 3 . Insert 2 shelf support 8 into panel A &... - Page 7 Hodedah www.hodedah.com support @hodedah.com Door Panel Assembly Instruction Step 1 * Insert 2 door support spring 9 into panels J & K's non-thru holes as shown. * Fix 2 handles 15 into panel J & K's thru holes as shown. Tighten 2 screw 16 from inner side of panel J &...
- Page 8 Hodedah www.hodedah.com support @hodedah.com Assembly Of Drawer ( 1 ) - Place Panel M on each side of Panel L as shown. - Then, tighten screw 6 to Panel M's lower thru holes to fix them onto Panel L. - Next tighten screw 6 to Panel M's upper thru holes to fix up to the Panel N.
- Page 9 Hodedah www.hodedah.com support @hodedah.com Assembly Instruction Step 1 Fix Panel A onto Panel B by inserting the dowels onto the respective non-thru holes at Panel B. Next, fix Panel C onto Panel A by inserting the dowels onto the non-thru holes at panel A.
- Page 10 Hodedah www.hodedah.com support @hodedah.com Assembly Instruction Step 2 Fix Panel B & C onto Panel D by inserting the dowels onto the respective non-thru holes at Panel D. Use allen key 23 to tighten 3 screw 7 from the thru-holes of panel B & D to non-thru hole of Panel A & C, as shown.
- Page 11 Hodedah Hodedah www.hodedah.com www.hodedah.com support @hodedah.com support @hodedah.com Assembly Instruction Step 3 Assembly Instruction Step 3 Fix the completed assemble of Panel F, G & H onto Panel D by inserting the dowels onto the respective non-thru holes Fix the completed assemble of Panel F, G & H onto Panel D by inserting the dowels onto the respective non-thru holes at Panel D.
- Page 12 Hodedah www.hodedah.com support @hodedah.com Assembly Instruction Step 4 Lift up the main unit carefully and let it stand up properly. Fix Panel I onto Panels A & D. Align properly by inserting the dowel of Panel A & D onto non-thru holes of Panel I.
- Page 13 Hodedah www.hodedah.com support @hodedah.com Assembly Instruction Step 5 Put adjusting panels Q onto shelf supports as shown. Take Drawer and slide them (the white rolles at drawer slide at both side of drawers are to go into the track of the slides at each side panel) all the way gently.
- Page 14 Hodedah www.hodedah.com support @hodedah.com Completion In the interest of our environment please dispose of all packaging thoughtfully.
