HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HIK 93
Kitchen Stand Cabinet
FRONT VIEW
Product Dimensions : Height 62.9'' x Width 15.7'' x Depth 14.1''
www.Hodedah.com
2 people
70 mins
1 YR LTD
1 Box
REAR VIEW
1 | Page
Advertisement
Table of Contents
Related Manuals for Hodedah HIK 93
Summary of Contents for Hodedah HIK 93

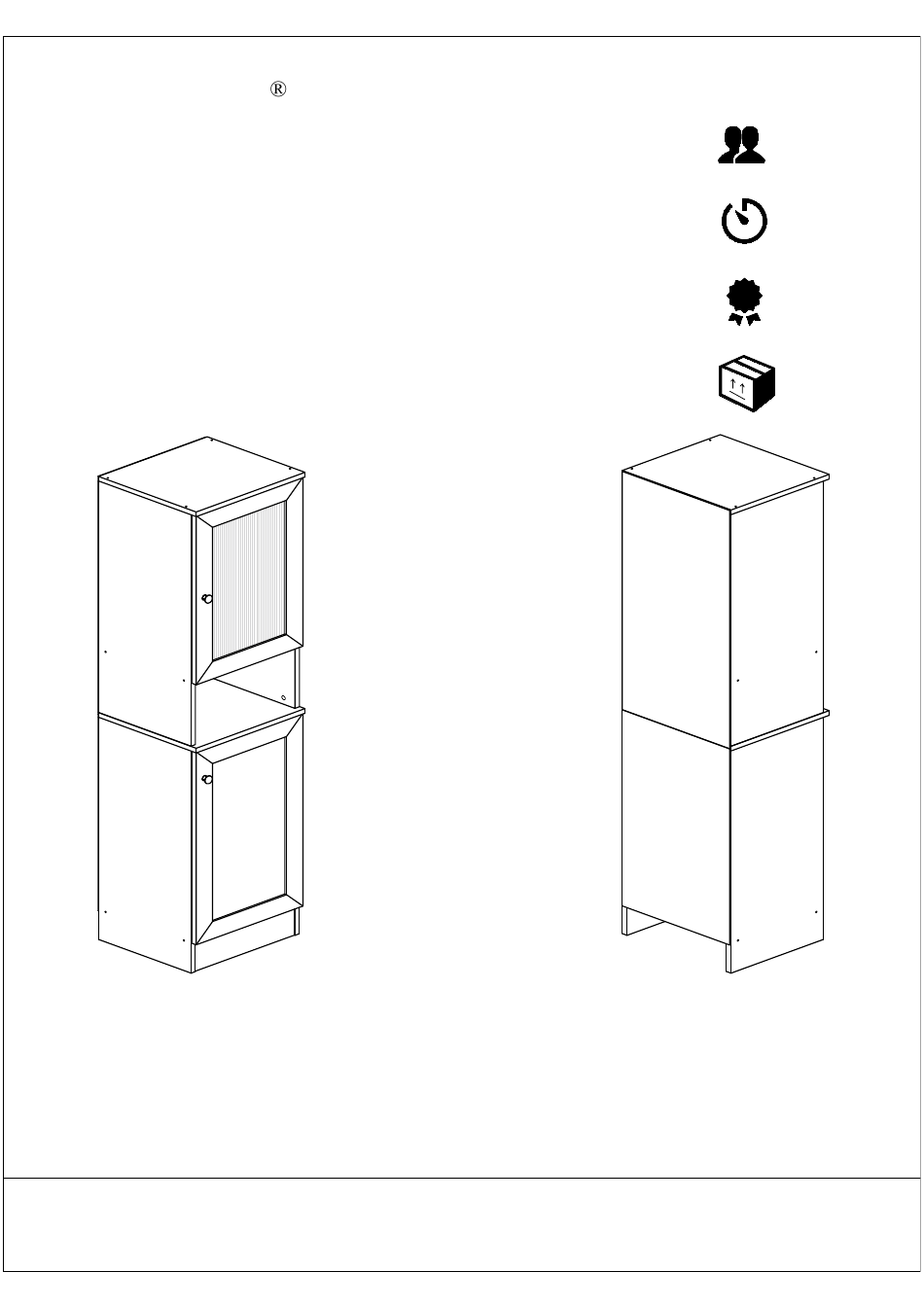

- Page 1 HODEDAH Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 70 mins ITEM # HIK 93 1 YR LTD Kitchen Stand Cabinet 1 Box REAR VIEW FRONT VIEW Product Dimensions : Height 62.9'' x Width 15.7'' x Depth 14.1'' 1 | Page www.Hodedah.com...
- Page 2 WARRANTY Hodedah warrants this product to be free from defect in materials and workmanship and agrees to remedy and such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.
-
Page 3: Product Care And Maintenance
HODEDAH Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes. if your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH Hardware List M8X25MM Minifix Bolt Minifix Nut M6X50MM Minifix Cap M3.5X16MM Handle 9200 (PVC) M4X25MM Nail 5/8 Shelf Support Hinges 5/8 Nail With Pin 5/8 Allen Key Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. -
Page 5: Parts List
HODEDAH Parts List 400x360x15mm 800x340x15mm 800x340x15mm 768x340x15mm 768x340x15mm 823x395x2.5mm 678x395x2.5mm 366x300x15mm 366x339x15mm 400x360x15mm 366x339x15mm 366x96x15mm 584x392x15mm 666x392x15mm 5 | Page www.Hodedah.com... - Page 6 HODEDAH The Breakdown... II) Door & Drawer : I) Main Unit : 6 | Page www.Hodedah.com...
- Page 7 HODEDAH Step 1 WOOD DOWEL M8x25MM 1. Insert 22 x Wood Dowels (A) into panel (2,3,4,5,9,11 & 12). 7 | Page www.Hodedah.com...
-
Page 8: Top View
HODEDAH Step 2 MINIFIX BOLT TOP VIEW BOTTOM VIEW 1. Tighten 8x Minifix Bolt (B1) onto top and bottom side of panel (10) with 4x Minifix Bolt (B1) onto each side of panel (10) (As Shown). 8 | Page www.Hodedah.com... -
Page 9: Back View
HODEDAH Step 3 CB SCREW M3.5X16MM CB SCREW M4X25MM HINGES 5/8 HANDLE 9200 (PVC) FRONT VIEW BACK VIEW 1. Tighten handle (E1) onto front side of door panel (13 & 14) with CB Screw M4x25mm (E2) using screwdriver. (As Shown) 2. - Page 10 HODEDAH Step 4 CSK CAP WOOD M6X50MM MINIFIX CAP ALLEN KEY BOTTOM VIEW 1. Fix panel (11 & 12) to panel (4 & 5) by using dowels (A) onto non-thru holes at panel (4 & 5) and tighten 4x CSK M6x50mm (D) from the thru-holes of panel (4 & 5) with Allen Key (J).
- Page 11 HODEDAH Step 5 MINIFIX NUT MINIFIX CAP ALLEN KEY 1. Fix panel (10) to panel (4 & 5) by inserting dowel (A) onto non-thru holes at panel (4 & 5). Then insert 4 x Minifix Nut (B2) into panel (4 & 5) 's L-thru holes and using Allen Key (J) to tighten it.
- Page 12 HODEDAH Part 1 12 | Page www.Hodedah.com...
- Page 13 HODEDAH Step 6 CSK CAP WOOD M6X50MM MINIFIX CAP ALLEN KEY BOTTOM VIEW 1. At bottom view position, fix panel (9) to panel (2 & 3) by using dowels (A) onto non-thru holes at panel (2 & 3) and tighten 4x CSK M6x50mm (D) from the thru-holes of panel (2 &...
- Page 14 HODEDAH Step 7 CSK CAP WOOD M6X50MM MINIFIX CAP ALLEN KEY BOTTOM VIEW 1. Fix top panel (1) to panel (2 & 3) with 4x CSK M6x50mm (D) using Allen Key (J). After that, insert 4x cap (B3). 14 | Page...
- Page 15 HODEDAH Part 2 15 | Page www.Hodedah.com...
- Page 16 HODEDAH Step 8 MINIFIX NUT MINIFIX CAP ALLEN KEY 1. Fix panel (2 & 3) to panel (10) by inserting dowel (A) onto 2x Dowel holes at panel (10). Then insert 4x Minifix Nut (B2) into panel (2 & 3) 's L-thru holes with Allen Key (J) to tighten it.
- Page 17 HODEDAH Step 9 NAIL 5/8 PVC NAIL WITH PIN 5/8 1. At face down position, place 2x panel (6 & 7) onto the back of the main unit and align it properly for nailing. Use hammer to nail the Nails (F) one by one (As Shown) at center of 4 side edges.
- Page 18 HODEDAH Step 10 SHELF SUPPORT 1. Insert 8 x Shelf Support (G) into panel (2,3,4 & 5). 18 | Page www.Hodedah.com...
- Page 19 HODEDAH Step 11 1. Slide it panel (8) between panel (2 & 3). 2. Slide it panel (8) between panel (4 & 5). 19 | Page www.Hodedah.com...
- Page 20 HODEDAH Step 12 Final step... CB SCREW M3.5X16MM 1. Attach door panels (13 & 14) to panel (4 & 5) with Hinges (H) by using 8x CB Screws M3.5x16mm (C) with screwdriver. 20 | Page www.Hodedah.com...
- Page 21 HODEDAH Job Complete... Enjoy & Thank you for purchasing from Hodedah! 21 | Page www.Hodedah.com...
- Page 22 Failure to detach this restraint before moving furniture may result in injury and damage. If the safety kit is not in the box, please contact our consumer service team at Tel. 1 (718) 456 0505 or Email Support@Hodedah.com in order to obtain one before using the furniture.
- Page 23 HODEDAH FITTING OF ANTI-TIP SAFETY STRAP STEP 1: Attach the mounting bracket to the furniture in the solid part below the top panel a few inches away from the side of the unit. Screw through the smallest hole of STEP 2:...
