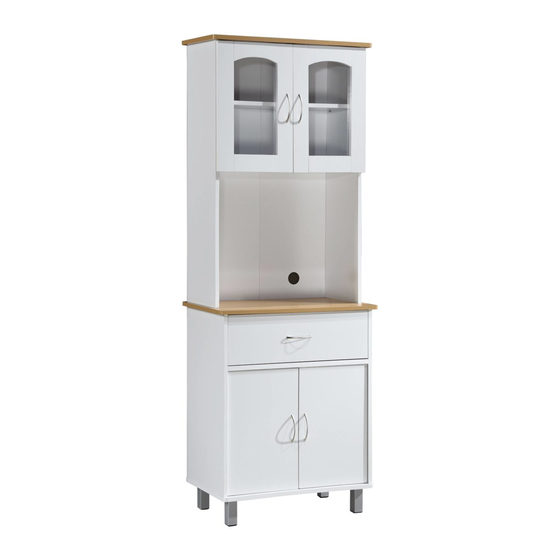

Hodedah HIK 94 Assembly Instructions Manual

Kitchen cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HIK 94
KITCHEN CABINET
FRONT VIEW
Product Dimensions : Height 70.9'' x Width 23.6'' x Depth 15.75''
www.Hodedah.com
2 people
70 mins
1 YR LTD
1 Box
REAR VIEW
1 | Page

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIK 94 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hodedah HIK 94

Summary of Contents for Hodedah HIK 94

  • Page 1 HODEDAH Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 70 mins ITEM # HIK 94 1 YR LTD KITCHEN CABINET 1 Box FRONT VIEW REAR VIEW Product Dimensions : Height 70.9'' x Width 23.6'' x Depth 15.75'' 1 | Page www.Hodedah.com...

  • Page 2: Warranty

    WARRANTY Hodedah warrants this product to be free from defect in materials and workmanship and agrees to remedy and such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.

  • Page 3: Product Care And Maintenance

    HODEDAH Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes. if your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.

  • Page 4: Hardware List

    HODEDAH Hardware List M8X25MM M6X50MM M3.5X16MM M4X32MM M4X20MM M4X38MM Minifix Cap Minifix Nut Minifix Bolt Shelf Support Allen Key Hinges 5/8 Door Moon Support Spring 2 Pin Stopper Handle 96mm 3.5kg Metal Piece Magnet (1 Hole) M3X12MM Nail 5/8 Mirror Bracket...
  • Page 5 HODEDAH Hardware List Drawer Slide ''14 Drawer Slide ''14 Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2. Check and measure the bolts before applying them to parts.

  • Page 6: Parts List

    HODEDAH Parts List 686x380x15mm 528x76x15mm 686x380x15mm 562x396x15mm 600x396x15mm 710x558x2.5mm 1002x292x15mm 528x292x15mm 1002x292x15mm 600x324x15mm 1024x558x2.5mm 528x278x15mm 476x274x15mm 476x274x15mm 400x176x3mm 472x111x15mm 343x121x15mm 501x343x2.5mm 6 | Page www.Hodedah.com...
  • Page 7 HODEDAH Parts List 522x192x15mm 466x258x15mm 466x258x15mm 7 | Page www.Hodedah.com...
  • Page 8 HODEDAH The Breakdown... I) Main Unit : II) Door & Drawer : 8 | Page www.Hodedah.com...
  • Page 9 HODEDAH Step 1 WOOD DOWEL M8x25MM MINIFIX BOLT BOTTOM VIEW TOP VIEW BOTTOM VIEW - Insert 22 x Wood Dowels A into panel (1,2,3,7,8 & 9). Using hammer to gently tap them in. - Tighten 16 x Minifix Bolt G2 into panel (5,7,9 & 10).
  • Page 10 HODEDAH Step 2 CB SCREW M3.5X16MM SHELF SUPPORT DRAWER SLIDE ''14 LEFT VIEW RIGHT VIEW - Insert 4 x Shelf Support J onto the panel (7 & 9). - Place the Drawer Slide R1 on to 3 holes area shown at Right view side panel (1). Then tighten it with 3 x cb screws M3.5x16mm C.
  • Page 11 HODEDAH Step 3 CB SCREW M3.5X16MM 3.5KG MAGNET (1 HOLE) HINGES 5/8 MIRROR BRACKET 2 PIN STOPPER REAR VIEW REAR VIEW BOTTOM VIEW BOTTOM VIEW - Put 12 x bracket (P) onto Glass (15), then tighten 12 x cb screws M3.5x16mm C. Through bracket (P) thru hole.

  • Page 12: Rear View

    HODEDAH Step 4 CB SCREW M4X20MM METAL PIECE DOOR SUPPORT SPRIRG CB SCREW M3X12MM MOON HANDLE - 96MM REAR VIEW 1. Insert 4 x door support spring (K) into door panel (21 & 22) top&bottom side. 2. Place 4 x handle (L) to panels (14,15,21 & 22) front. Then use 8 x screws (D) to tighten it from panels (14,15,21 &...
  • Page 13 HODEDAH Step 5 CB SCREW M3.5X16MM MOON HANDLE - 96MM CB SCREW M4X32MM NAIL 5/8 CB SCREW M4X38MM DRAWER SLIDE ''14 COMPLETED 1. Place 2 x panels (18) next to each side of panel (20 & 17). (As Shown). Then tighten screws (F) from the side of panels (18) with screwdriver.
  • Page 14 HODEDAH Step 6 CSK CAP WOOD M6X50MM ALLEN KEY 1. Fix panel (2) to panel (1 & 3) by inserting dowels (A) onto non-thru holes at panel (1 & 3). Then tighten 2 x csk M6x50mm (B) to panel (2) from the thru-holes of panel (1 &...
  • Page 15 HODEDAH Step 5 CB SCREW M3.5X16MM MOON HANDLE - 96MM CB SCREW M4X32MM NAIL 5/8 CB SCREW M4X38MM DRAWER SLIDE ''14 COMPLETED - Place 2 panel (17) on each side of panel (19) as shown. - Then, tighten screw (F) to panel (16) lower thru holes to fix them onto panel (17).
  • Page 16 HODEDAH Step 8 CB SCREW M3.5X16MM PVC LEG 1. Fix 4 x leg (Q) onto panel (4)'s 4 side edges by using 16 x screws (C) with screwdriver to tighten it. 16 | Page www.Hodedah.com...
  • Page 17 HODEDAH Step 9 MINIFIX NUT ALLEN KEY MINIFIX CAP 1. Fix panel (5) to panel (1 & 3) by inserting dowel (A) onto non-thru holes at panel (5). Then insert 4 x minifix nut (G1) into panel (1 & 3) 's L-thru holes and using allen key (H) to tighten it.
  • Page 18 HODEDAH PART 1 18 | Page www.Hodedah.com...
  • Page 19 HODEDAH STEP 10 MINIFIX NUT ALLEN KEY MINIFIX CAP 1. Fix panel (8) to panel (7 & 9) by inserting dowels (A) onto non-thru holes at panel (7 & 9). Then insert 4 x minifix nut (G1) onto non-thru holes at panel (8) with allen key (H).
  • Page 20 HODEDAH STEP 11 MINIFIX NUT ALLEN KEY MINIFIX CAP 1. Fix panel (10) to panel (7 & 9) by inserting dowels (A) onto non-thru holes at panel (10). Then insert 4 x minifix nut (G1) into panel (7 & 9) 's L-thru holes with allen key (H) to tighten it.
  • Page 21 HODEDAH PART 2 21 | Page www.Hodedah.com...
  • Page 22 HODEDAH STEP 12 MINIFIX NUT ALLEN KEY MINIFIX CAP 1. Fix panel (7 & 9) to panel (5) by inserting dowel (A) onto non-thru holes at panel (5). Then insert 4 x minifix nut (G1) into panel (7 & 9) 's L-thru holes with allen key (H) to tighten it.
  • Page 23 HODEDAH STEP 13 NAIL 5/8 - At face back position, place back panel (6 &12) onto the back of the main unit, and align it properly for nailing. Use hammer to nail the nails one by one on the line drawn and at center of 4 side edges.
  • Page 24 HODEDAH STEP 14 - Take panel (12) and place it inside the top compartment by putting it on the 4 shelf support as shown. Put in the drawer by slotting the rollers at each and of drawer slide R2 onto the rail of drawer slide R1 fixed at side panel (1 & 3), Then push the drawer in slowly.
  • Page 25 HODEDAH Step 15 Final step... CB SCREW M3.5X16MM - Fix upper door panel (13 & 14) by Hinges I and tighten 8 x cb screws M3.5x16mm C through Hinges (I) thru hole. - Fix down door panel (20 & 21) by pushing and slotting the Door Support Spring K onto each holes at bottom of panel (4) and middle support (2).
  • Page 26 HODEDAH Job Complete... Enjoy & Thank you for purchasing from Hodedah! 26 | Page www.Hodedah.com...
  • Page 27 Failure to detach this restraint before moving furniture may result in injury and damage. If the safety kit is not in the box, please contact our consumer service team at Tel. 1 (718) 456 0505 or Email Support@Hodedah.com in order to obtain one before using the furniture.
  • Page 28 HODEDAH FITTING OF ANTI-TIP SAFETY STRAP STEP 1: Attach the mounting bracket to the furniture in the solid part below the top panel a few inches away from the side of the unit. Screw through the smallest hole of STEP 2:...
