Summary of Contents for Hodedah HIK 65-MOP

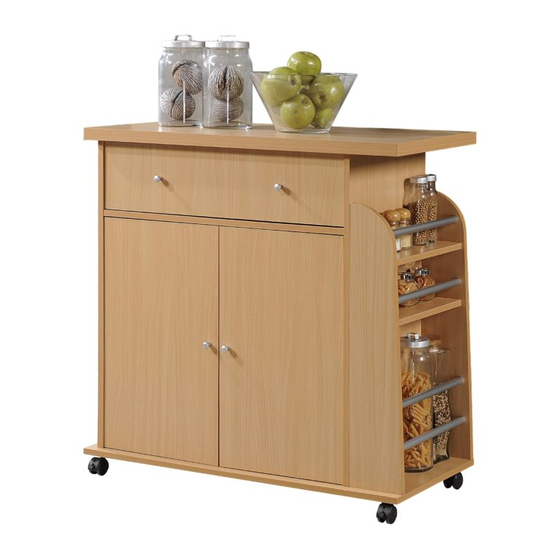

- Page 1 Hodedah www.hodedah.com support @hodedah.com HIK 65-MOP " X D16 " X H35"...
- Page 2 Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST HANDLE SV 48 (SILVER) PLASTIC DOWEL M8 X 25MM P/H SCREW M4 X 24MM CB SCREW M3 X 12MM P/H SCREW M4 X 40MM CB SCREW M3.5 X 12MM CB SCREW M3.5 X 16MM...
- Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
- Page 4 - Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included.
- Page 5 Hodedah www.hodedah.com support @hodedah.com STEP 1 MINIFIX 5654 PLASTIC DOWEL M8 X 25MM PVC SHELF SUPPORT LEFT VIEW RIGHT VIEW BOTTOM VIEW - Insert 26 x Plastic dowel (A) into Panels (1), (2) (3), (4), (5) & (6) using a plastic hammer.
- Page 6 Hodedah www.hodedah.com support @hodedah.com STEP 2 HANDLE SV 48 (SILVER) CB SCREW M3 X 12MM P/H SCREW M4 X 24MM CB SCREW M3.5 X 12MM DRAWER SLIDE 14" DOOR SUPPORT SPRING 902 MAGNET PLATE FRONT VIEW LEFT VIEW RIGHT VIEW...
- Page 7 Hodedah www.hodedah.com support @hodedah.com STEP 3 ALLEN KEY CSK CAP M6 X 40MM 902 MAGNET ALUMINIUM PIPE (384MM) BOTTOM VIEW - Insert 2 x Magnet (J2) to Panel (6) base by using a plastic hammer (Knock gently). - Attach Panel (2) into Panel (1). Insert 2 x Csk Cap M6 x 40 (G), tighten with Allen key (Q) & insert Cap (L).
- Page 8 Hodedah www.hodedah.com support @hodedah.com STEP 4 ALLEN KEY CB SCREW M3.5 X 16MM PLATE CASTER WITHOUT LOCK CSK CAP M6 X 40MM PLATE CASTER WITH LOCK - Attach Panel (6) to Panel (1). Insert 1 x CSK Cap M6 x 40mm (G) & Cap (L) by using Allen key (Q).
- Page 9 Hodedah www.hodedah.com support @hodedah.com STEP 5 HANDLE SV 48 (SILVER) CB Screw M4 X 25MM P/H SCREW M4X40 CB Screw M4 X 35MM MINIFIX 5654 ALLEN KEY - Attach panel (8) to panels (1) & (5), insert 4 x Minifix (K1), tighten with Allen key (Q) & insert Cap (L).
- Page 10 Hodedah www.hodedah.com support @hodedah.com STEP 6 DRAWER SLIDE 14" CB SCREW M3.5 X 12MM POWER NAIL " RIGHT LEFT - Fix 2 x Drawer slide 14" (O2) into both Panel (10) using CB Screw M3.5 x 12mm (C) & tighten with Philip head screwdriver.
- Page 11 Hodedah www.hodedah.com support @hodedah.com STEP 7 BOTTOM 13 & 14 13 & 14 - Press & insert the Door support spring (I) at the panel (13) & (14) top into the hole at bottom of Panel (6). - Press the Door support spring (I) at the panel (13) & (14) base & insert into the hole at panel (7).
