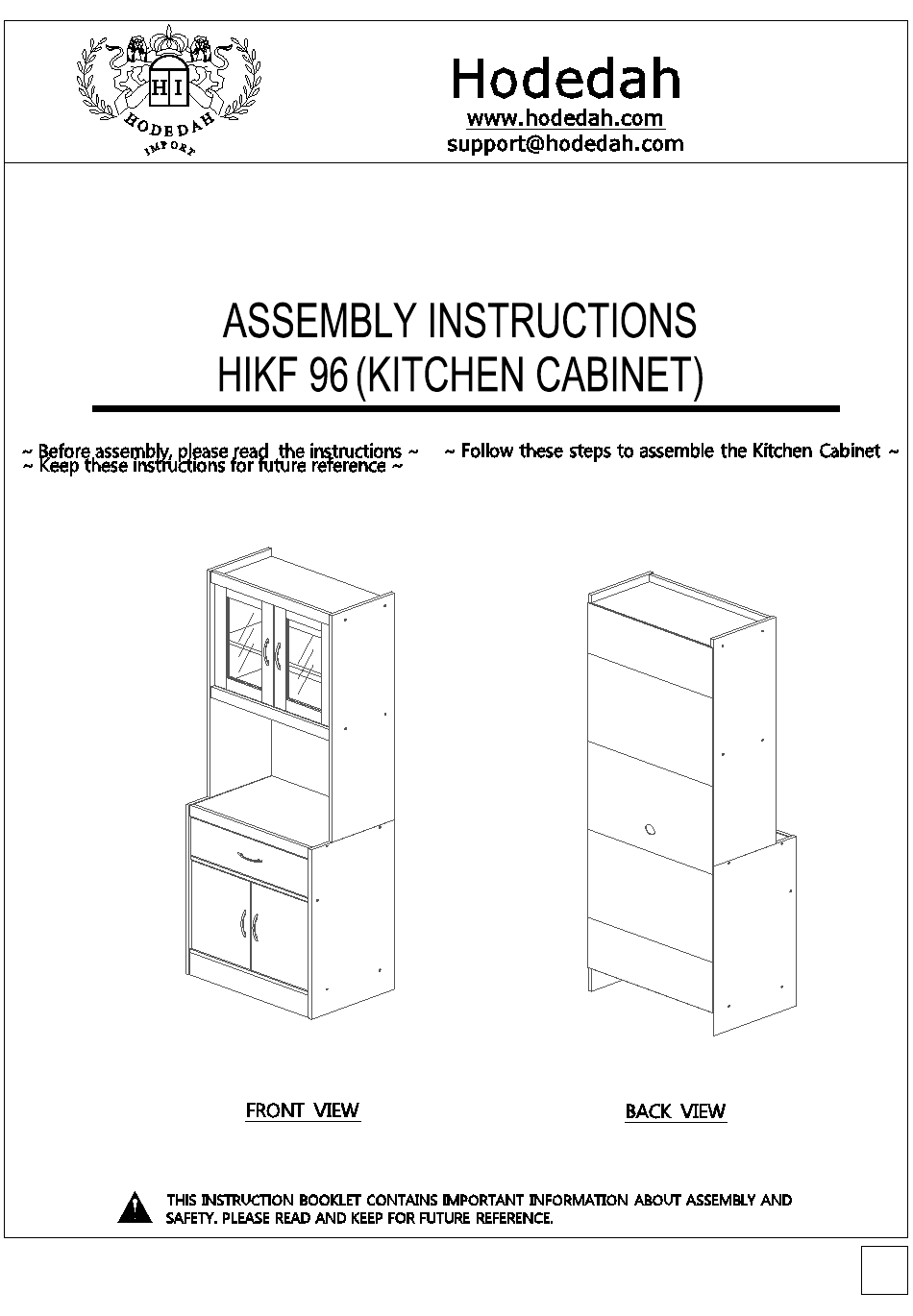

Summary of Contents for Hodedah HIKF 96
- Page 2 Down Side Panel (Left) Middle Support 1 pcs 1 pcs 770 x400x 15mm 576 x66x 15mm Bottom Panel Leg Panel 1 pcs 1 pcs 576 x398 x 15mm 576 x103 x 15mm Middle Panel D-Mouding 1 pcs 1 pcs 576 x380x 15mm 576 x 51x 15mm Down Side Panel (Right) Up Side Panel (Left)
- Page 3 Wood Dowel 8x25mm Wood Dowel 8x40mm CB Screw M3x12mm CB Screw M3.5x16mm CB Screw M4x25mm CB Screw M4x38mm 9 pcs 4 pcs 4 pcs 12 pcs 8 pcs 10 pcs L Key Moon Handle CSK Cap Wood Screw Cap Metal Shelf Support Door Support Spring 96mm-(PVC) M6x50MM...
-
Page 6: Pre-Assembly
Pre - Assembly Tighten minifix(M2) to panel(6,10,12) Insert Wood Dowels (A) in Up Side Panel(R) Up Side Panel(L) Using Hammer to D-Mouding gently tap them in D-Mouding Insert Wood D-Mouding Dowels (B) in Middle Support 13,8 Using Hammer to D-Mouding D-Mouding gently tap them Leg Panel... - Page 7 Pre - Assembly Insert door spring support(K) to both end of glass door panel(25,26) and door panel(23,24). Tighten 2 screws(E) from Door Panel (23,24,25,26)into the handle (L) hole. Glass Door Panel(L) Glass Door Panel(R) Glass Door Panel(L) Glass Door Panel(R) Door Panel(L) Door Panel(R) Door Panel(L)
- Page 8 Pre - Assembly DRAWER 19 -Place 2 panel 21 on each side of panel 19 as shown -Then,tighten screw (F) to panel 21 lower thru holes to fix them onto panel 19 -Next tighten screw (F) to panel 21 upper thru holes to fix up to the panel 20 -Filp drawer with bottom side up,place panel22 onto the drawer and align properly.Then nail the nails...
- Page 9 Assembly Instruction Step1 Fix Panel (2,3,4) onto panel (1) by inserting dowels(A) onto non-thru at panel (1) use allen key (I) to tighten screws (G) from the thru-holes of panel (1) and after that insert minifix cap (H). ALLEN CKS CAP WOOD MX50MM...
- Page 10 Assembly Instruction Step2 Fix Panel (5,6) onto panel (1) by inserting dowels(A) onto non-thru at panel (1) use allen key (I) to tighten screws (G) from the thru-holes of panel (1) and after that insert minifix cap (H). ALLEN CKS CAP WOOD MX50MM...
- Page 11 Assembly Instruction Step 3 Fix Panel (6) onto panel(5) by inserting minifix (M1) into panel (5)'s L-thru holes and using allen key (I) to tighten it after that insert minifix cap(H). Fix Panel (2,3,4,5,6) onto panel (7) by inserting dowels(A) onto non-thru at panel (7) use allen key (I) to tighten screws (G) from the thru-holes of panel (7) and after that insert minifix cap (H).
- Page 12 PART 1...
- Page 13 Assembly Instruction Step 4 Fix panel (9,10,11,12) onto panel (8) by inserting dowels (A) onto non-thru holes at panel (8). Use Allen key (I) to tighten screw (G) from the thru holes of panel (8) and after that insert minifix cap (H). ALLEN CKS CAP WOOD...
- Page 14 Assembly Instruction Step 5 Fix Panel (9,11) onto panel(10,12) by inserting minifix (M1) into panel (9,11)'s L-thru holes and using allen key (I) to tighten it after that insert minifix cap(H). Fix Panel (9,10,11,12) onto panel (13) by inserting dowels(A) onto non-thru at panel (13) use allen key (I) to tighten screws (G) from the thru-holes of panel (13) and after that insert minifix cap...
- Page 15 PART 2...
- Page 16 Assembly Instruction Step 6 Insert glue(P) into side panel (1,7)hole,and insert Dowel(B) using hammer to gently tap them in. PART 2 PART 1 FURNITURE GLUE(10G)
- Page 17 Assembly Instruction Step 7 At face down position ,Place back panel (14,15,16)onto the back of the main unit,and align it properly for nailing. Use hammer to nail the nails one by one on the line drawn and at center of 4side edges.Gap between 2 nails should be about 100mm for all.
- Page 18 Assembly Instruction Step 8 Take panel (18) and place it inside the top compartment by putting it on the 4 shelf support as shown. Put in the drawer by slotting the rollers at each and of drawer slide (Q2)onto the rail of drawer slide (Q1) fixed at side panel 1 and 7.Then push the drawer in slowly.Then take the movable shelf 17 and place it inside the lower compartment by putting it on top the 4 shelf support.
- Page 19 Assembly Instruction Step 9 Fix upper Glass Panel (25,26) by pushing and slotting the door support (K) onto each holes at bottom of panel (9)and top of panel(11) Fix down door panel (23,24) by pushing and slotting the door support (K) onto each holes at bottom of panel (3) and top panel (2).
- Page 20 Completion In the interest of our environment please dispose of all packaging thoughtfully.
