HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HIK 72-T (MOP)
MICROWAVE CART
Product Dimensions : Height 45.2'' x Width 24'' x Depth 15.8''
www.Hodedah.com

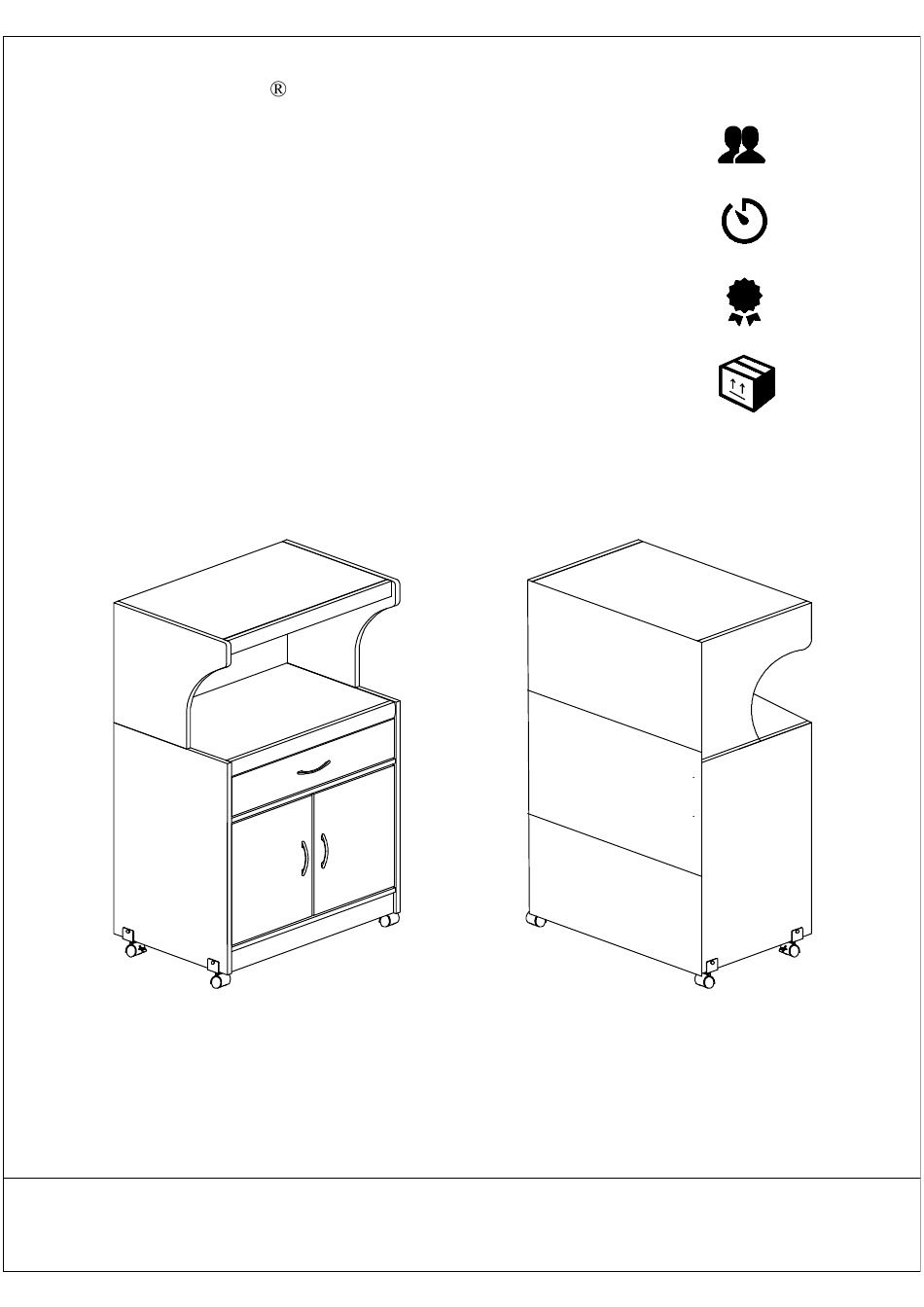

FRONT VIEW
2 people
70 mins
1 YR LTD
1 Box
REAR VIEW
1 | Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIK 72-T and is the answer not in the manual?

Questions and answers

Dorothy Carr
March 30, 2025

how do i put the door slides on and how do i location the one panel

1 comments:
Mr. Anderson
March 31, 2025

To install the door slides for the Hodedah HIK 72-T:

1. Place the drawer slide (M1) on the 3-hole area of the left side panel (1) and secure it with 3 CB screws M3.5x12mm (C).
2. Repeat the same process for the right side panel (8), using 3 more CB screws (C).

To locate the correct panels:

- Panel (1) is the left side panel.
- Panel (8) is the right side panel.

These are the panels where the drawer slides (M1) are installed.

This answer is automatically generated

Summary of Contents for Hodedah HIK 72-T

  • Page 1 HODEDAH Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 70 mins ITEM # HIK 72-T (MOP) 1 YR LTD MICROWAVE CART 1 Box FRONT VIEW REAR VIEW Product Dimensions : Height 45.2'' x Width 24'' x Depth 15.8'' 1 | Page www.Hodedah.com...
  • Page 2 WARRANTY Hodedah warrants this product to be free from defect in materials and workmanship and agrees to remedy and such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.
  • Page 3 HODEDAH Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes. if your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.
  • Page 4 HODEDAH Hardware List M8x25MM M8x40MM M3.5X12MM Moon Handle 96MM M4X20MM M4X32MM M4X38MM Allen Key 2 Pin Stopper Nail 5/8 Minifix Nut Minifix Bolt Minifix Cap Shelf Support Hinges 7/8 Double Double Double Head Minifix Nut Head Minifix Bolt Head Minifix Cap...
  • Page 5 HODEDAH Hardware List Caster Caster's Screw Caster's Nut W/Out Stopper Important 1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2. Check and measure the bolts before applying them to parts.
  • Page 6 HODEDAH Parts List 700x400x15mm 580x398x15mm 580x66x15mm 580X66X15mm 610x333x2.5mm 580x380x15mm 580x51x15mm 700x400x15mm 398x398x15mm 610x362x2.5mm 580x355x15mm 580x51x15mm 398x398x15mm 580x235x12mm 574x130x12mm 357x116x12mm 531x116x12mm 554x356x2.5mm 6 | Page www.Hodedah.com...
  • Page 7 HODEDAH Parts List 400x284x12mm 400x284x12mm 7 | Page www.Hodedah.com...
  • Page 8 HODEDAH The Breakdown... I) Main Unit : II) Door & Drawer : 8 | Page www.Hodedah.com...
  • Page 9 HODEDAH Step 1 WOOD DOWEL M8x25MM 1. Insert 24 x wood dowels (A) into panel (2,3,4,6 & 11) with hammer to gently tap them in. 9 | Page www.Hodedah.com...
  • Page 10 HODEDAH Step 2 MINIFIX BOLT 1. Insert 18 x minifix bolt (I2) into panel (1,7,8,9,12 & 13). 10 | Page www.Hodedah.com...
  • Page 11 HODEDAH Step 3 CB SCREW M3.5X12MM SHELF SUPPORT DRAWER SLIDE ''14 1. Place the drawer slide (M1) onto 3 holes area shown at left side panel (1). Then tighten it with 3 x cb screw M3.5x12mm (C). 2. Place the drawer slide (M1) onto 3 holes area shown at right side panel (8). Then tighten it with 3 x cb screw M3.5x12mm (C).
  • Page 12 HODEDAH Step 4 CB SCREW M3.5X12MM HINGES 7/8 MOON HANDLE 96MM CB SCREW M4X20MM 1. Fix 2 x moon handle (D1) to panel (19 & 20) front by using 2 x cb screw M4x20mm (D2) for fix it. 2. Insert 4 x slot hinges (K) into panel (19 & 20) non-thru holes as shown, then tighten 8 x cb screw M3.5x12mm (C) through slot hinges (K) thru hole.
  • Page 13 HODEDAH Step 5 CB SCREW M3.5X12MM CB SCREW M4X38MM MOON HANDLE 96MM NAIL 5/8 CB SCREW M4X32MM DRAWER SLIDE ''14 COMPLETED 1. Place 2 x panels (16) next to each side of panel (15 & 17). (As Shown). Then tighten 8 x screws (E) from the sides of panel (16) to the edges of panel (15 &...
  • Page 14 HODEDAH Step 6 2 PIN STOPPER 1. Insert the 2 pin stopper (G) into panel (4)'s non-thru holes as shown. 14 | Page www.Hodedah.com...
  • Page 15 HODEDAH Step 7 1. Fix 2 x panel (3) to panel (1) by pushing the 4 x (Left) dowels into the non-thru holes at lower corner area of panel (3). 15 | Page www.Hodedah.com...
  • Page 16 HODEDAH Step 8 MINIFIX NUT MINIFIX CAP ALLEN KEY 1. Fix panel (2 & 4) to panel (1) by using 3 x minifix nut (I1) into panel (2 & 4) 's L-thru holes as shown with allen key (F) to tighten it. After that insert 3 x cap (I3).
  • Page 17 HODEDAH Step 9 MINIFIX NUT MINIFIX CAP ALLEN KEY 1. Fix panel (6 & 7) to panel (1) by using 3 x minifix nut (I1) into panel (6 & 7) 's L-thru holes as shown with allen key (F) to tighten it. After that insert 3 x cap (I3).
  • Page 18 HODEDAH Step 10 MINIFIX NUT MINIFIX CAP ALLEN KEY 1. Fix panel (2,4,6 & 7) to panel (8) by using 6 x minifix nut (I1) into panel (2,4,6 & 7) 's R-thru holes with allen key (F) to tighten it. After that insert 6 x cap (I3).
  • Page 19 HODEDAH Step 11 CASTER WITH STOPPER CASTER'S NUT CASTER W/OUT STOPPER CASTER'S SCREW 1. Take caster (N1 & N2) (One By One). Slot the ''U'' metal part of caster onto the bottom edge (At Each Corner Area), insert and push the caster's screw (N3) thru from outside to inside, then tighten the nut (N4) as shown for all 4 casters.
  • Page 20 HODEDAH Part 1 20 | Page www.Hodedah.com...
  • Page 21 HODEDAH Step 12 MINIFIX NUT MINIFIX CAP ALLEN KEY 1. Fix panel (11 & 12) to panel (9) by using 3 x minifix nut (I1) into panel (11 & 12) 's L-thru holes with allen key (F) to tighten it. After that insert 3 x cap (I3).
  • Page 22 HODEDAH Step 13 MINIFIX NUT MINIFIX CAP ALLEN KEY 1. Fix panel (11 & 12) to panel (13) by using 3 x minifix nut (I1) into panel (11 & 12) 's L-thru holes with allen key (F) to tighten it. After that insert 3 x cap (I3).
  • Page 23 HODEDAH Part 2 23 | Page www.Hodedah.com...
  • Page 24 HODEDAH Step 14 DOUBLE HEAD MINIFIX NUT WOOD DOWEL M8X40MM DOUBLE HEAD MINIFIX BOLT ALLEN KEY DOUBLE HEAD MINIFIX CAP L3 F PART 2 PART 1 1. Insert 4 x dowels (B) into panels (9 & 13) bottom side. 2. Insert 8 x minifix nut (L1) into panels (1,8,9 & 13) with allen key (F) to tighten it.
  • Page 25 HODEDAH Step 15 NAIL 5/8 1. At face down position, place panel (5 & 10) onto the back of main unit, and alight it properly for nailing. Use hammer to nail 27 x nails (H) one by one at the line drawer and center of 4 side edges.
  • Page 26 HODEDAH Step 16 1. Slide in the drawer by slotting the rollers at each end of drawer slide (M2) onto the rail of drawer slide (M1) fixed at side panel (1 & 8) and slide the drawer in slowly. Then take the panel (14) and place it on the 4 shelf supports top sides.
  • Page 27 HODEDAH Step 17 Final step... CB SCREW M3.5X12MM HINGES 7/8 1. Fix hinges (K) into panels (1 & 8)'s non-thru holes as shown, then tighten 8 x cb screws M3.5x12mm (C) through hinges (K) thru hole. 27 | Page www.Hodedah.com...
  • Page 28 HODEDAH Job Complete... Enjoy & Thank you for purchasing from Hodedah! 28 | Page www.Hodedah.com...
  • Page 29 Failure to detach this restraint before moving furniture may result in injury and damage. If the safety kit is not in the box, please contact our consumer service team at Tel. 1 (718) 456 0505 or Email Support@Hodedah.com in order to obtain one before using the furniture.
  • Page 30 HODEDAH FITTING OF ANTI-TIP SAFETY STRAP STEP 1: Attach the mounting bracket to the furniture in the solid part below the top panel a few inches away from the side of the unit. Screw through the smallest hole of STEP 2:...
