HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HIK 69-T (MOP)

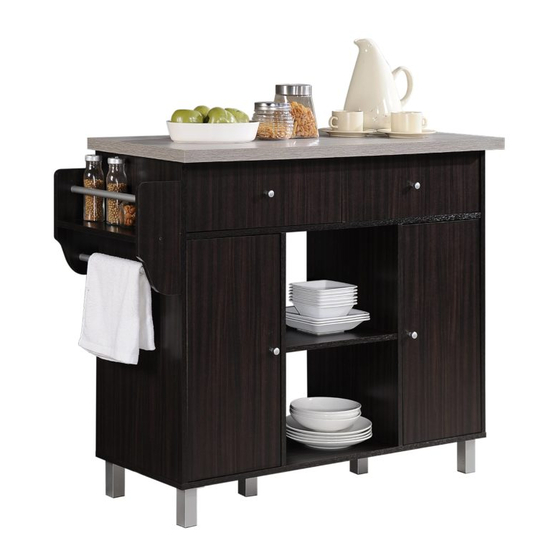

KITCHEN ISLAND
FRONT VIEW
Product Dimensions : Height 37'' x Width 45.7'' x Depth 17.6''
www.Hodedah.com
2 people
70 mins
1 YR LTD
1 Box
REAR VIEW
1 | Page

Advertisement

loading
Need help?

Need help?

Do you have a question about the HIK 69-T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hodedah HIK 69-T

Summary of Contents for Hodedah HIK 69-T

  • Page 1 HODEDAH Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 70 mins ITEM # HIK 69-T (MOP) 1 YR LTD KITCHEN ISLAND 1 Box REAR VIEW FRONT VIEW Product Dimensions : Height 37'' x Width 45.7'' x Depth 17.6'' 1 | Page www.Hodedah.com...

  • Page 2: Warranty

    WARRANTY Hodedah warrants this product to be free from defect in materials and workmanship and agrees to remedy and such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.

  • Page 3: Product Care And Maintenance

    HODEDAH Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes. if your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.

  • Page 4: Hardware List

    HODEDAH Hardware List M3.5X16MM M8X25MM Shelf Support Door Support Spring M4X38MM M6X50MM Minifix Nut Minifix Bolt Minifix Cap 3.5kg Metal Piece Magnet (1 Hole) M3X12MM Handle M4X25MM M4X45MM 311 KNOB Nail 5/8 Allen Key Drawer Slide 14'' 38100 PVC Leg...

  • Page 5: Parts List

    HODEDAH Parts List 280x123x15mm 390x120x15mm 280x123x15mm 798x424x15mm 1000x90x15mm 1000x90x15mm 180x384x15mm 602x424x15mm 602x424x15mm 798x424x15mm 612x303x2.5mm 1034x425x15mm 1010x190x2.5mm 1085x445x30mm 495x171x15mm 495x171x15mm 300x114x15mm 434x114x15mm 5 | Page www.Hodedah.com...
  • Page 6 HODEDAH Parts List 444x280x2.5mm 596x285x15mm 596x285x15mm 383x422x15mm 293x384x15mm 6 | Page www.Hodedah.com...
  • Page 7 HODEDAH The Breakdown... 7 | Page www.Hodedah.com...
  • Page 8 HODEDAH Step 1 WOOD DOWEL M8x25MM 1. Insert 32 x wood dowels (A) into panels (1,2,3,4,5,6,7,8,9 & 10). 8 | Page www.Hodedah.com...
  • Page 9 HODEDAH Step 2 SHELF SUPPORT RIGHT VIEW LEFT VIEW RIGHT VIEW LEFT VIEW LEFT VIEW RIGHT VIEW 1. Insert 12 x Shelf support (B) into panels (4,8,9 & 10). 9 | Page www.Hodedah.com...
  • Page 10 HODEDAH Step 3 CB SCREW M3.5X16MM HANDLE 311 KNOB DOOR SUPPORT SPRING CB SCREW M4X25MM MINIFIX BOLT DRAWER SLIDE 14'' RIGHT VIEW LEFT VIEW BOTTOM VIEW RIGHT VIEW LEFT VIEW 1. Insert 6 x minifix bolt (G2) into panel (14) bottom side.
  • Page 11 HODEDAH Step 4 CSK CAP WOOD M6X50MM MINIFIX CAP METAL PIECE ALLEN KEY 3.5KG MAGNET (1 HOLE) CHROME PIPE CB SCREW M3X12MM REAR VIEW LEFT VIEW RIGHT VIEW 1. Fix 2 x magnet piece (I2) to panel (20 & 21) back side by using 2 x cb screws M3x12mm (I3).
  • Page 12 HODEDAH Step 5 ALLEN KEY CSK CAP WOOD M6X50MM MINIFIX CAP 1. Attach panel (5 & 6) to panel (4) by using 2 x csk M6x50mm (E) with allen key (L). After that, insert 2 x cap (H). 2. Attach panel (7) to panel (5 & 6) by using 1 x csk M6x50mm (E) with allen key (L).
  • Page 13 HODEDAH Step 6 ALLEN KEY CSK CAP WOOD M6X50MM 1. Slide 2 x panel (11) into panel (4,8,9 & 10) groove. 2. Attach panel (12) to panel (4,8,9 & 10) by using 8 x csk M6x50mm (E) with allen key (L).
  • Page 14 HODEDAH Step 7 CB SCREW M3.5X16MM 38100 PVC LEG 1. Fix 6 x 38100 pvc leg (N) onto panel (12) base by using 24 x cb screws M3.5x16mm (C). 14 | Page www.Hodedah.com...
  • Page 15 HODEDAH Step 8 CB SCREW M4X38MM HANDLE 311 KNOB MINIFIX NUT CB SCREW M4X45MM MINIFIX CAP ALLEN KEY 1. Slide 1 x panel (13) into panel (4 & 10) groove. 2. Attach panel (14) to panel (4,7 & 10) by using 6 x minifix nut (G1) with allen key (L). After that, insert 6 x cap (H).
  • Page 16 HODEDAH Step 9 CB SCREW M3.5X16MM DRAWER SLIDE 14'' NAIL 5/8 RIGHT VIEW LEFT VIEW 1. Fix 4 x drawer slide 14'' (M2) into panel (17) by using 12 x cb screws M3.5x16mm (C). 2. Slide 2 x panel (19) into panel (17) groove. After that, use 24 x power nail (K) for fix it.
  • Page 17 HODEDAH Step 10 Final step... 20 & 21 20 & 21 1. Press the door support spring (F) at panel (20 & 21) top side. After that, insert to the hole at panel (5). support spring (F) at panel (20 & 21) bottom side. After that, insert to the hole at panel (12).
  • Page 18 HODEDAH Job Complete... Enjoy & Thank you for purchasing from Hodedah! 18 | Page www.Hodedah.com...
  • Page 19 Failure to detach this restraint before moving furniture may result in injury and damage. If the safety kit is not in the box, please contact our consumer service team at Tel. 1 (718) 456 0505 or Email Support@Hodedah.com in order to obtain one before using the furniture.
  • Page 20 HODEDAH FITTING OF ANTI-TIP SAFETY STRAP STEP 1: Attach the mounting bracket to the furniture in the solid part below the top panel a few inches away from the side of the unit. Screw through the smallest hole of STEP 2:...
