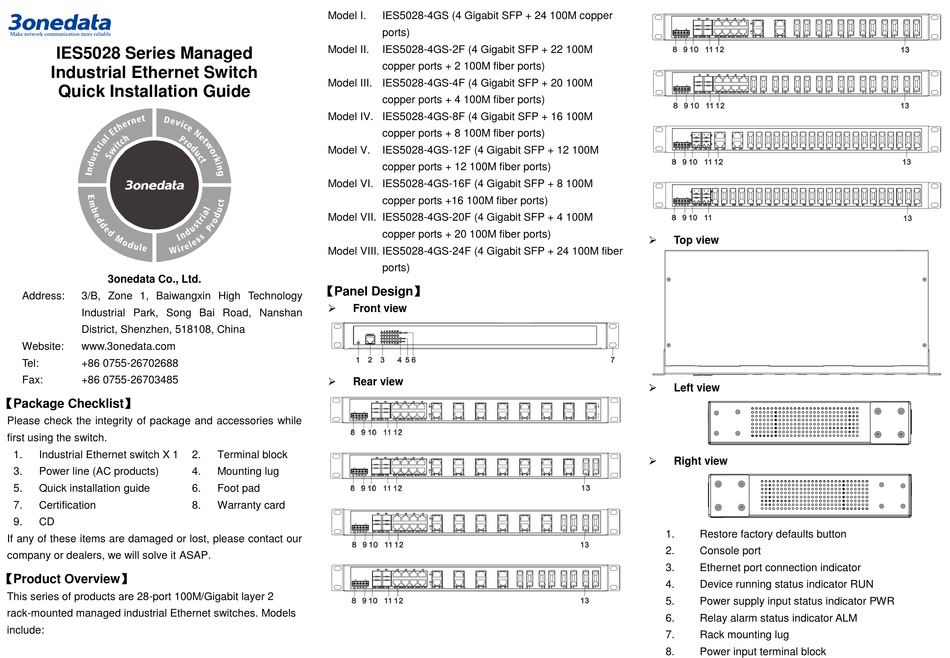

IES5028 Series Managed
Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485
【Package Checklist】
Please check the integrity of package and accessories while
first using the switch.
1.
Industrial Ethernet switch X 1
3.
Power line (AC products)
5.
Quick installation guide
7.
Certification
9.
CD
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

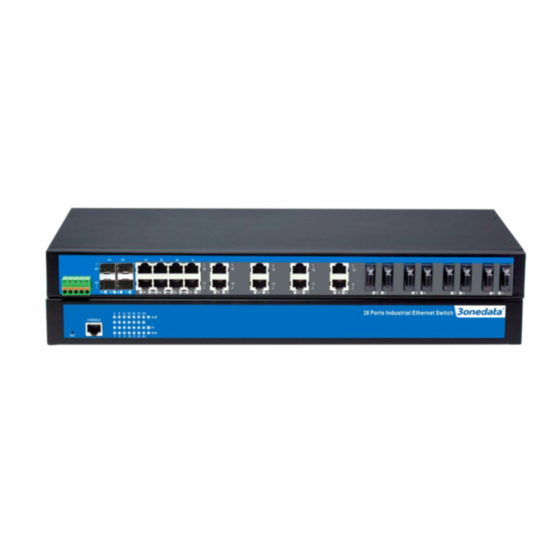

【Product Overview】
This series of products are 28-port 100M/Gigabit layer 2
rack-mounted managed industrial Ethernet switches. Models
include:
Model I.
Model II.
Model III. IES5028-4GS-4F (4 Gigabit SFP + 20 100M
Model IV. IES5028-4GS-8F (4 Gigabit SFP + 16 100M
Model V.
Model VI. IES5028-4GS-16F (4 Gigabit SFP + 8 100M
Model VII. IES5028-4GS-20F (4 Gigabit SFP + 4 100M
Model VIII. IES5028-4GS-24F (4 Gigabit SFP + 24 100M fiber
【Panel Design】
Front view
Rear view
2.
Terminal block
4.
Mounting lug
6.
Foot pad
8.
Warranty card
IES5028-4GS (4 Gigabit SFP + 24 100M copper
ports)
IES5028-4GS-2F (4 Gigabit SFP + 22 100M
copper ports + 2 100M fiber ports)
copper ports + 4 100M fiber ports)
copper ports + 8 100M fiber ports)
IES5028-4GS-12F (4 Gigabit SFP + 12 100M
copper ports + 12 100M fiber ports)
copper ports +16 100M fiber ports)
copper ports + 20 100M fiber ports)
ports)
Top view
Left view
Right view
1.
Restore Factory Defaults button
2.
Console port
3.
Ethernet port connection indicator
4.
Device running status indicator RUN
5.
Power supply input status indicator PWR
6.
Relay alarm status indicator ALM
7.
Rack mounting lug
8.
Power input terminal block
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for 3onedata IES5028-4GS-2F
Summary of Contents for 3onedata IES5028-4GS-2F
- Page 1 Model I. IES5028-4GS (4 Gigabit SFP + 24 100M copper ports) Model II. IES5028-4GS-2F (4 Gigabit SFP + 22 100M IES5028 Series Managed copper ports + 2 100M fiber ports) Industrial Ethernet Switch Model III. IES5028-4GS-4F (4 Gigabit SFP + 20 100M...
- Page 2 Relay output terminal block supply has nonpolarity and anti-reverse function, the device Before power on, first confirm the supported power Gigabit SFP slot supply specification to avoid over-voltage damaging the can be normally working after reverse connection. The pin Ethernet port connection indicator device.
- Page 3 or other switching value collecting device, it can timely inform G1-G4) status software; all modified configurations will be cleared operator when alarm occurs. The pin definition of relay as after restoring to factory settings, so please backup Ethernet port connection is inactive follows: configuration file in advance.
- Page 4 Access terminal 5 pins 5.08mm pitch terminal blocks, including 3 pins power supply terminal blocks Consumption IES5028-4GS No-load: 7.4W@220VAC Full-load: 13.1W@220VAC IES5028-4GS-2F No-load: 8.7W@220VAC Full-load: 14.4W@220VAC IES5028-4GS-4F No-load: 10W@220VAC Full-load: 15.7W@220VAC IES5028-4GS-8F No-load: 12.6W@220VAC Full-load: 18.3W@220VAC IES5028-4GS-12F No-load: 15.2W@220VAC Full-load: 20.9W@220VAC IES5028-4GS-16F No-load: 17.8W@220VAC...
