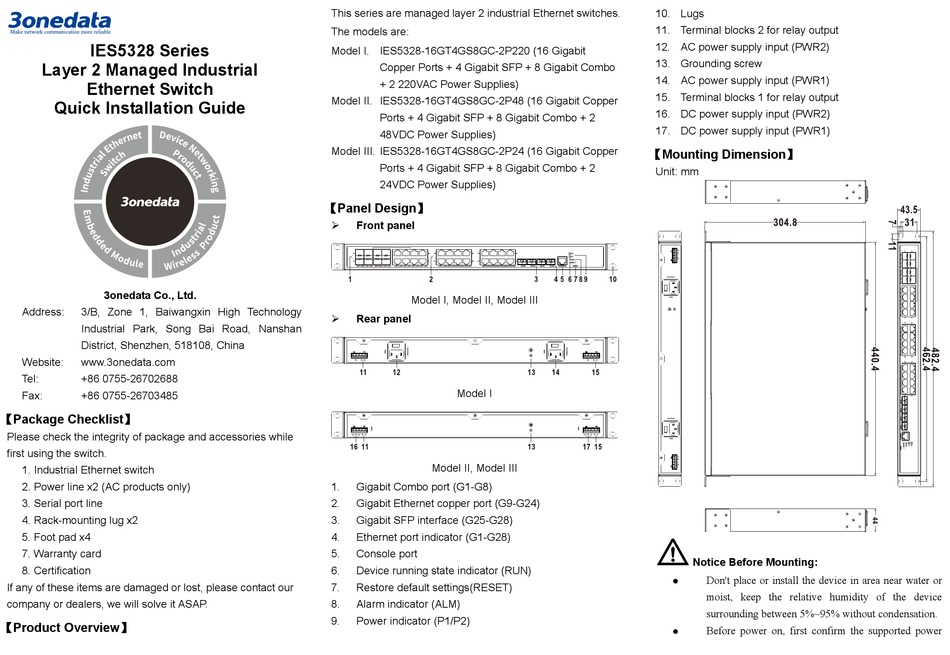

3onedata IES5328 Series Quick Installation Manual

3onedata IES5328 Series Quick Installation Manual

Layer 2 managed industrial ethernet switch

Advertisement

Quick Links

IES5328 Series
Layer 2 Managed Industrial
Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website:
www.3onedata.com
Tel:
+86 0755-26702688
Fax:
+86 0755-26703485

【Package Checklist】

Please check the integrity of package and accessories while
first using the switch.
1. Industrial Ethernet switch
2. Power line x2 (AC products only)
3. Serial port line
5. Foot pad x4
7. Warranty card
8. Certification
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

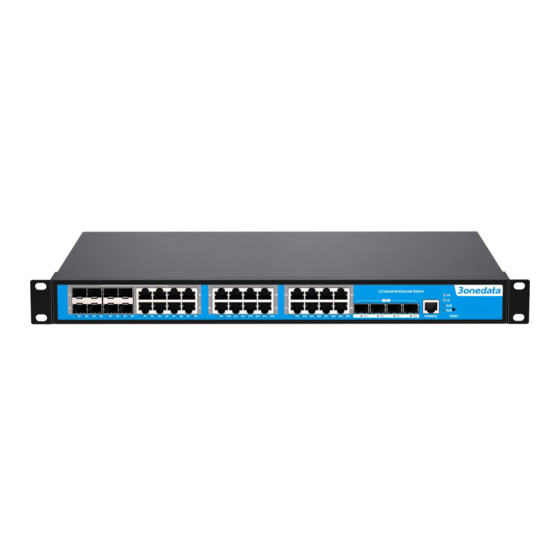

This series are managed layer 2 industrial Ethernet switches.
The models are:
Model I. IES5328-16GT4GS8GC-2P220 (16 Gigabit
Copper Ports + 4 Gigabit SFP + 8 Gigabit Combo
+ 2 220VAC Power Supplies)
Model II. IES5328-16GT4GS8GC-2P48 (16 Gigabit Copper
Ports + 4 Gigabit SFP + 8 Gigabit Combo + 2
48VDC Power Supplies)
Model III. IES5328-16GT4GS8GC-2P24 (16 Gigabit Copper
Ports + 4 Gigabit SFP + 8 Gigabit Combo + 2
24VDC Power Supplies)

【Panel Design】

Front panel
Model I, Model II, Model III
Rear panel
Model I
Model II, Model III
1.
Gigabit Combo port (G1-G8)
2.
Gigabit Ethernet copper port (G9-G24)
3.
Gigabit SFP interface (G25-G28)
4.
Ethernet port indicator (G1-G28)
5.
Console port
6.
Device running state indicator (RUN)
7.
8.
Alarm indicator (ALM)
9.
Power indicator (P1/P2)
10. Lugs
11. Terminal blocks 2 for relay output
12. AC power supply input (PWR2)
13. Grounding screw
14. AC power supply input (PWR1)
15. Terminal blocks 1 for relay output
16. DC power supply input (PWR2)
17. DC power supply input (PWR1)

【Mounting Dimension】

Unit: mm
Notice Before Mounting:
Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES5328 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for 3onedata IES5328 Series

  • Page 1 This series are managed layer 2 industrial Ethernet switches. 10. Lugs 11. Terminal blocks 2 for relay output The models are: IES5328 Series 12. AC power supply input (PWR2) Model I. IES5328-16GT4GS8GC-2P220 (16 Gigabit 13. Grounding screw Layer 2 Managed Industrial Copper Ports + 4 Gigabit SFP + 8 Gigabit Combo 14.
  • Page 2 supply specification to avoid over-voltage damaging terminal block into the device power supply interface, It occupies 2 pins on the right side and R+ and R- are relay the device. then plug the power supply plug contact and power alarm output parts. They are open circuit in normal non The device surface temperature is high after running;...
  • Page 3 Indicate Description Console port CLI command management PWR is disconnected or running port (RS-232), RJ45 abnormally Alarm interface 5-pin 5.08mm pitch terminal Blinking The system is running normally block (R+/R-), support 2 relay The system is not running or alarm information outputs running abnormally Indicator Power indicator, system alarm...
