Summarize

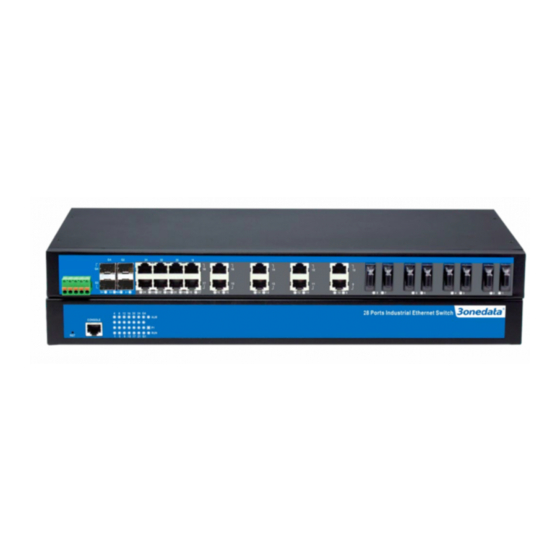

IES5028-4GS series is managed industrial Ethernet switch. The
IES5028-4GS industrial Ethernet switches consists of 24 Ethernet
ports and 4 gigabit optical ports. The IES5028-4GS-2F consists of
22 Ethernet ports, 2 Fiber ports and 4 gigabit optical ports. The
IES5028-4GS-4F consists of 20 Ethernet ports, 4 Fiber ports and
4 gigabit optical ports. The IES5028-4GS-8F consists of 16
Ethernet ports, 8 Fiber ports and 4 gigabit optical ports. The
IES5028-4GS-12F consists of 12 Ethernet ports, 12 Fiber ports
and 4 gigabit optical ports. The IES5028-4GS-16F consists of 8
Ethernet ports, 16 Fiber ports and 4 gigabit optical ports. The
IES5028-4GS-20F consists of 4 Ethernet ports, 20 Fiber ports and
4 gigabit optical ports. The IES5028-4GS-24F consists of 24
Fiber ports and 4 gigabit optical ports that provide an economical
solution for your industrial Ethernet connection. IES5028-4GS
series with a single power series and redundancy power series of
two products can be optional. Dual power supply product support
redundancy backup function. The single power supply products
do not support the redundancy function.
The IES5028-4GS series switches have an operating
temperature range of -40 to 75°C, and are designed with low
consumption and without fan. The rugged hardware design makes
the IES5028-4GS perfect for ensuring that your Ethernet
equipment can withstand the rigors of industrial applications.
Packing list
Please check the packaging and accessories by your first using.
Industrial Ethernet switch
1
User manual
1
Documentation and software CD
Certificate of quality
1
Warranty card
1
Please inform us or our distributor if your equipments have
been damaged or lost any accessories, we will try our best to
satisfy you.
Feature
High performance network exchange technology
Support IEEE802.3, IEEE802.3u, IEEE 802.3x,IEEE802.3z,
IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
Support 8K MAC address
Support 12.8Gbps backboard bandwidth
Support flow statistics
10/100BaseT(X)(RJ45)
Store and Forward switching process type
Plug-and-play , auto MDI/MDI-X connection
Support auto negotiation speed, F/H duplex mode, and auto
send data control
SW-Ring ring network patent technology (Fault recovery
time<20ms
Support WEB configuration
Support MAC address learning, aging automatic
Support port status display, data update.
Support RSTP, IGMP, port trunking and port mirroring
Support rate control, Broadcast storm control
Support single or redundancy power supply(100 240VAC)
Support 1 channel relay alarm output (single power series)
Support 2 channel relay alarm output (redundancy power
series)
Reliable Industrial grade design
Industrial grade 4 design, -40-75 work temperature
No fan deign
IP30 protection grade
19 inch rack mounting
Panel layout
IES5028-4GS-P (100~240VAC/DC)
Front panel
Advertisement
Table of Contents
Related Manuals for 3onedata IES5028-4GS
Summary of Contents for 3onedata IES5028-4GS
-

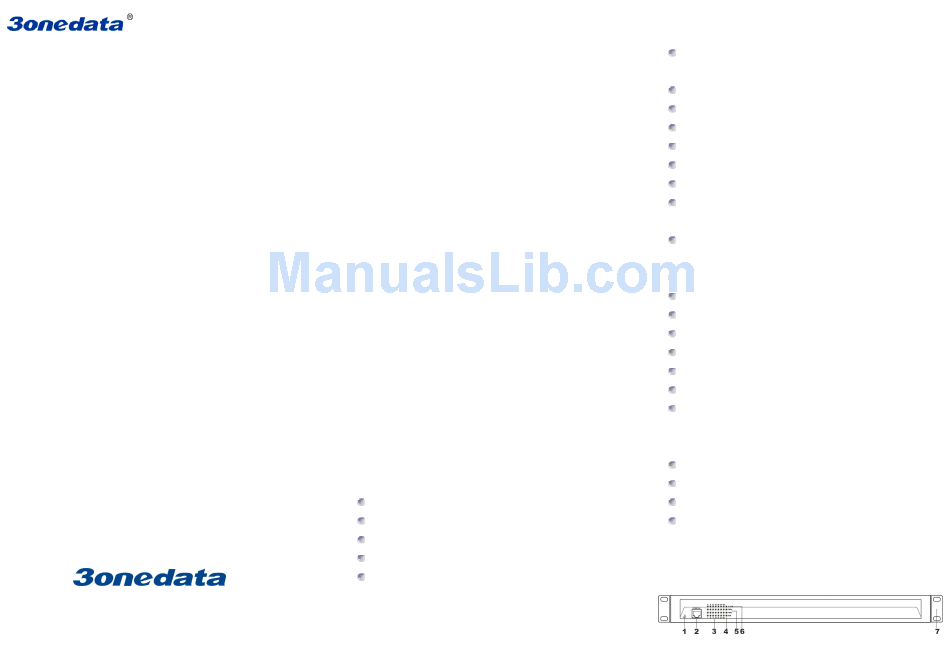

Page 1: User Manual
High performance network exchange technology IES5028-4GS industrial Ethernet switches consists of 24 Ethernet Support IEEE802.3, IEEE802.3u, IEEE 802.3x,IEEE802.3z, ports and 4 gigabit optical ports. The IES5028-4GS-2F consists of IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W 22 Ethernet ports, 2 Fiber ports and 4 gigabit optical ports. The... - Page 2 Rackmount ears Rear panel IES5028-4GS-4F-P (100~240VAC/DC) Front panel Power input and Relay output terminal block 1000Base-FX SFP port Restore factory settings 10/100BaseT(X) (RJ45) ports Console port 100Base-FX ports Link/ACT LEDs Rear panel Rear panel connector LEDs Systems running LED IES5028-4GS-12F-P (100~240VAC/DC)
- Page 3 Restore factory settings can be used independently. P1 and P2 can supply power at the IES5028-4GS-24F-P (100~240VAC/DC) Console port Front panel same time, once either of these two powers fails, another power Link/ACT LEDs can acts as backup automatically to ensure reliability of the Systems running LED network.
- Page 4 Dimension 100Base-FX Fiber port The series of products are the same size, and the number of the 100Base-FX full-duplex SM or MM port, SC/ST/FC type .The Ethernet interface is different. Unit (mm) fiber port must be used in pair, TX (transmit) port connect remote Single Power Series switch’s RX (receive) port;...
- Page 5 5. Environment: working temperature: -40 75 too long, it cannot hold down other cable, but structure in the Storage Temperature: -40 85 middle of alignment rack; Relative humidity 5% 95% 8. Pigtail cannot be tied and swerved as less as possible. Swerving radius cannot be too small (small swerving causes Rack mount installation terrible loss of link).
- Page 6 Electric port: 10Base-T/100Base-TX auto speed control, Half/full Full load consumption: 14.4W EN61000-4-4 (EFT), Level 4 duplex and MDI/MDI-X auto detect EN61000-4-5 (Surge), Level 4 IES5028-4GS-4F-P (100~240VAC/DC): EN61000-4-6 (CS), Level 3 100M optic fiber port: 100Base-FX, SC/ST/FC connector, support Unload consumption: 10.0W EN61000-4-8, Level 5 single mode (20/40/60/80Km optional), multi mode Full load consumption: 15.7W...
